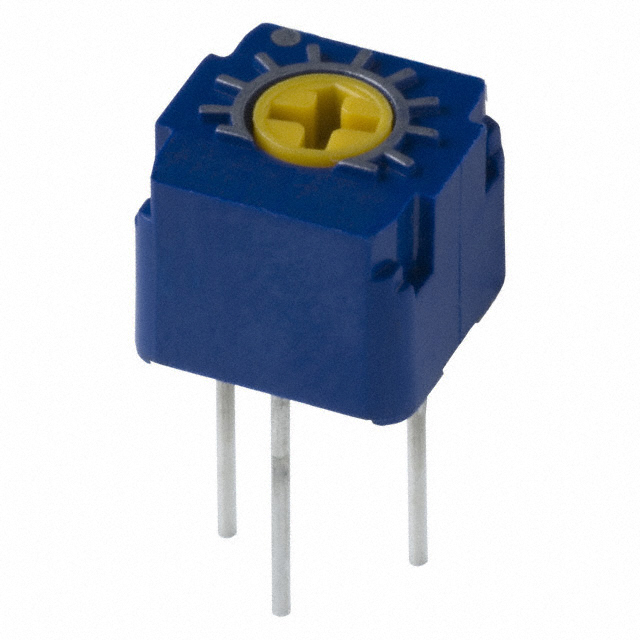

CT6ER Series

Catalog

TRIMMER 100 OHM 0.5W PC PIN TOP

Part	Tolerance	Termination Style	Resistance	Power (Watts)	Power (Watts)	Mounting Type	Number of Turns	Adjustment Type	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Resistive Material
Nidec Components Corporation CT-6ER101	10 %	PC Pins	100 Ohms	0.5 W	0.5 W	Through Hole	1	Top Adjustment	100 ppm/°C	0.276 in	7 mm	7 mm	0.276 "	Cermet
Nidec Components Corporation CT-6ER201	10 %	PC Pins	200 Ohms	0.5 W	0.5 W	Through Hole	1	Top Adjustment	100 ppm/°C	0.276 in	7 mm	7 mm	0.276 "	Cermet
Nidec Components Corporation CT-6ER500	10 %	PC Pins	50 Ohms	0.5 W	0.5 W	Through Hole	1	Top Adjustment	100 ppm/°C	0.276 in	7 mm	7 mm	0.276 "	Cermet
Nidec Components Corporation CT-6ER504	10 %	PC Pins		0.5 W	0.5 W	Through Hole	1	Top Adjustment	100 ppm/°C	0.276 in	7 mm	7 mm	0.276 "	Cermet
Nidec Components Corporation CT-6ER100	10 %	PC Pins	10 Ohms	0.5 W	0.5 W	Through Hole	1	Top Adjustment	250 ppm/°C	0.276 in	7 mm	7 mm	0.276 "	Cermet
Nidec Components Corporation CT-6ER204	10 %	PC Pins	200000 Ohms	0.5 W	0.5 W	Through Hole	1	Top Adjustment	100 ppm/°C	0.276 in	7 mm	7 mm	0.276 "	Cermet
Nidec Components Corporation CT-6ER503	10 %	PC Pins	50000 Ohms	0.5 W	0.5 W	Through Hole	1	Top Adjustment	100 ppm/°C	0.276 in	7 mm	7 mm	0.276 "	Cermet
Nidec Components Corporation CT-6ER205	10 %	PC Pins	2 MOhms	0.5 W	0.5 W	Through Hole	1	Top Adjustment	100 ppm/°C	0.276 in	7 mm	7 mm	0.276 "	Cermet
