396-023 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 23POS 0.125

Part	Material - Insulation	Termination Rows	Card Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Material	Contact Type	Pitch	Pitch	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Flange Feature	Gender	Read Out	Mounting Type	Color	Number of Positions/Bay/Row	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 396-023-526-108	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Solder	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1	4-40 Flush Mount Threaded Insert Top Opening	Female	Single	Through Hole	Black	23	-40 C	105 ░C

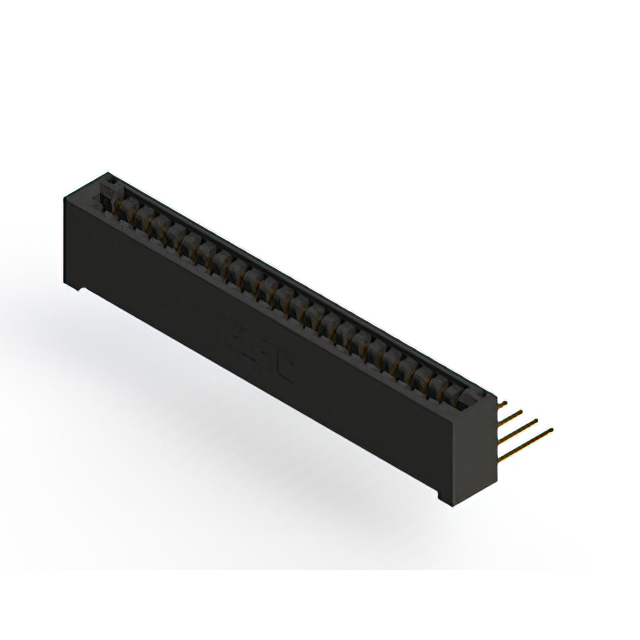

EDAC Inc. 396-023-559-101	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Solder Wire Wrap	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1		Female	Single	Right Angle Through Hole	Black	23	-40 C	105 ░C
EDAC Inc. 396-023-520-602	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Solder	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1		Female	Single	Through Hole	Black	23	-40 C	105 ░C	3.25 mm	0.128 "
EDAC Inc. 396-023-520-607	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Solder	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1	M3 Threaded Insert Top Mount Opening	Female	Single	Through Hole	Black	23	-40 C	105 ░C
EDAC Inc. 396-023-521-602	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Solder	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1		Female	Single	Through Hole	Black	23	-40 C	105 ░C	3.25 mm	0.128 "

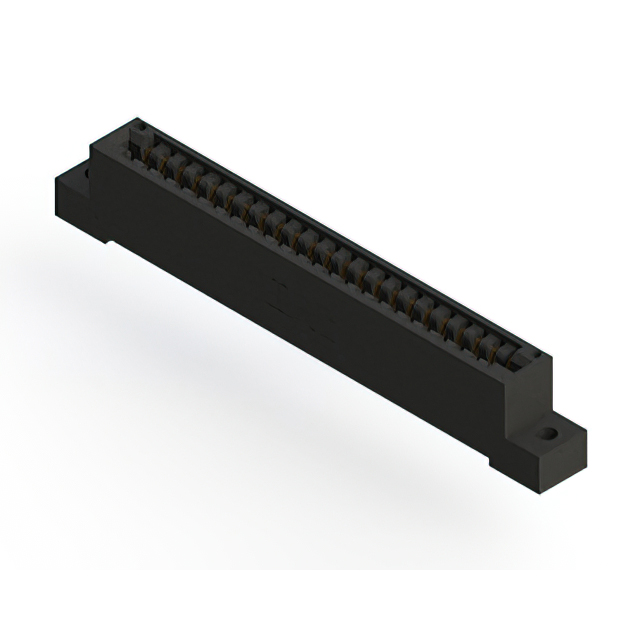

EDAC Inc. 396-023-520-102	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Solder	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Flush Mount Top Opening Unthreaded	Female	Single	Through Hole	Black	23	-40 C	105 ░C	3.25 mm	0.128 "

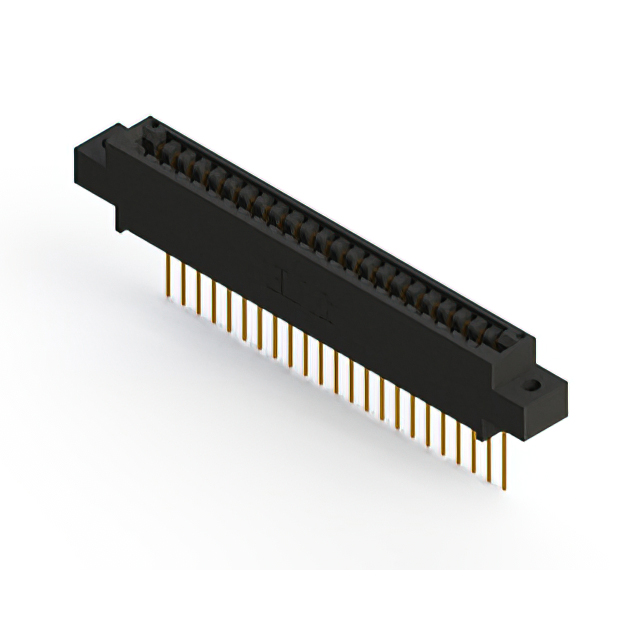

EDAC Inc. 396-023-540-602	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Wire Wrap	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1		Female	Single	Through Hole	Black	23	-40 C	105 ░C	3.25 mm	0.128 "

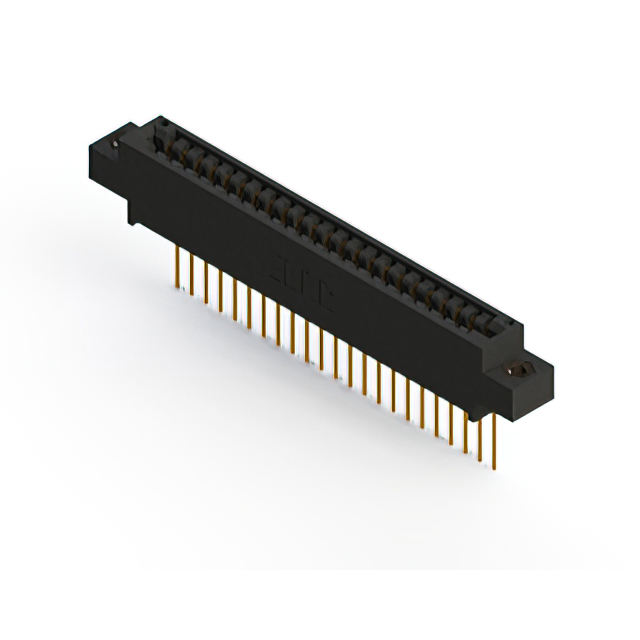

EDAC Inc. 396-023-541-607	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Wire Wrap	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1	M3 Threaded Insert Top Mount Opening	Female	Single	Through Hole	Black	23	-40 C	105 ░C

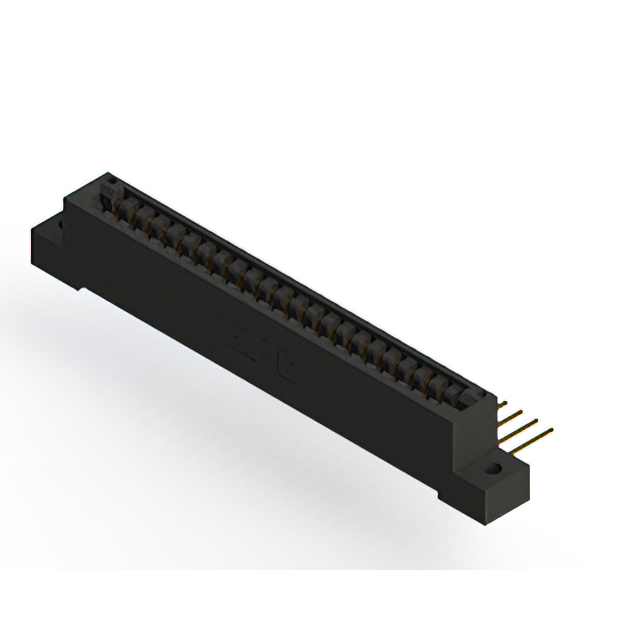

EDAC Inc. 396-023-559-102	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Solder Wire Wrap	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Flush Mount Top Opening Unthreaded	Female	Single	Right Angle Through Hole	Black	23	-40 C	105 ░C	3.25 mm	0.128 "
EDAC Inc. 396-023-559-612	Polyester Thermoplastic	1	Non Specified - Single Edge	Gold	0.25 Ám	10 Áin	Solder Wire Wrap	Copper Alloy	Cantilever	3.18 mm	0.125 in	23	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Side Mount Opening Unthreaded	Female	Single	Right Angle Through Hole	Black	23	-40 C	105 ░C	3.25 mm	0.128 "
