84-5041 Series
Manufacturer: EAO
Beta
⌘K
SWITCH ESTOP TWIST RESET 5A 250V
| Part | Switch Function | Reset Operation | Features | Voltage Rating - DC | Ingress Protection | Voltage Rating - AC | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Termination Style | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Mounting Type | Electrical Life | Mechanical Life | Actuator Marking | Illumination Type, Color | Color - Actuator/Cap | Actuator Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

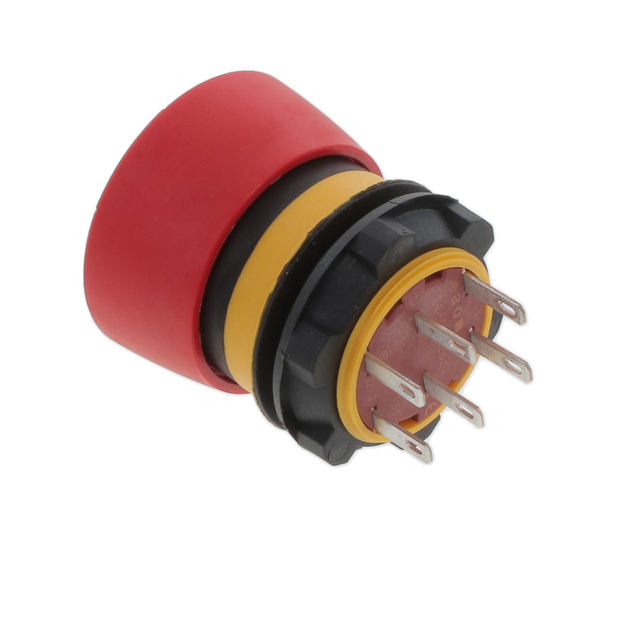

 EAO | On-Off | Twist | Illuminated (Red) | 250 V | IP65 - Dust Tight Water Resistant | 250 V | -25 °C | 65 °C | DPST-NC | Quick Connect - 0.110" (2.8mm) | 5 A | 22.3 mm | Panel Mount Front | |||||||
On-On | 240 VDC | IP65 IP67 | 240 V | -30 ░C | 70 °C | SPDT | Solder Quick Connect - 0.110" (2.8mm) | 3 A | 19 mm | Panel Mount Front | 50000 Cycles | 500000 Cycles | No Marking | LED Yellow | Silver | Button Flush Round | Illuminated Standard | |||

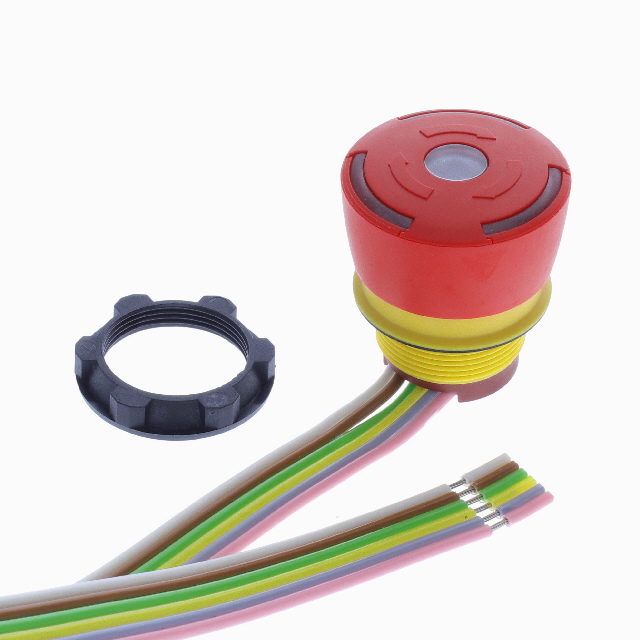

 EAO | On-Off | Twist | Illuminated (Red) | 250 V | IP65 - Dust Tight Water Resistant | 250 V | -25 °C | 65 °C | DPST-NC | Cable Leads | 5 A | 22.3 mm | Panel Mount Front |
