PSA10F Series

Wall Mount AC Adapters 10W 5V 2A USB A drop compnstn

Manufacturer: Phihong USA

Catalog

Wall Mount AC Adapters 10W 5V 2A USB A drop compnstn

Catalog

Wall Mount AC Adapters 10W 5V 2A USB A drop compnstn

Part	Output Connector	Approval Agency	Input Type	Form	Current - Output (Max) [Max]	Region Utilized	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Efficiency	No Load Power Consumption	Voltage - Output	Weight [custom]	Weight [custom]	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Output Connector [diameter]	Output Connector [x]	Standard Number	Polarization	Cord Length	Cord Length
Phihong USA PSA10F-050Q	USB A Receptacle	CE cULus	Fixed Blade Multi-Blade	Wall Mount	2 A	North America	47 mm	2.36 "	0.59 in	60 mm	1.85 in	15 mm	ITE (Commercial)	CoC Tier 1 Level VI	150 mW	5 V	0.085 lb	38.56 g	NEMA 1-15P Multi-Blade	264 VAC	90 VAC	40 °C	0 °C	10 W

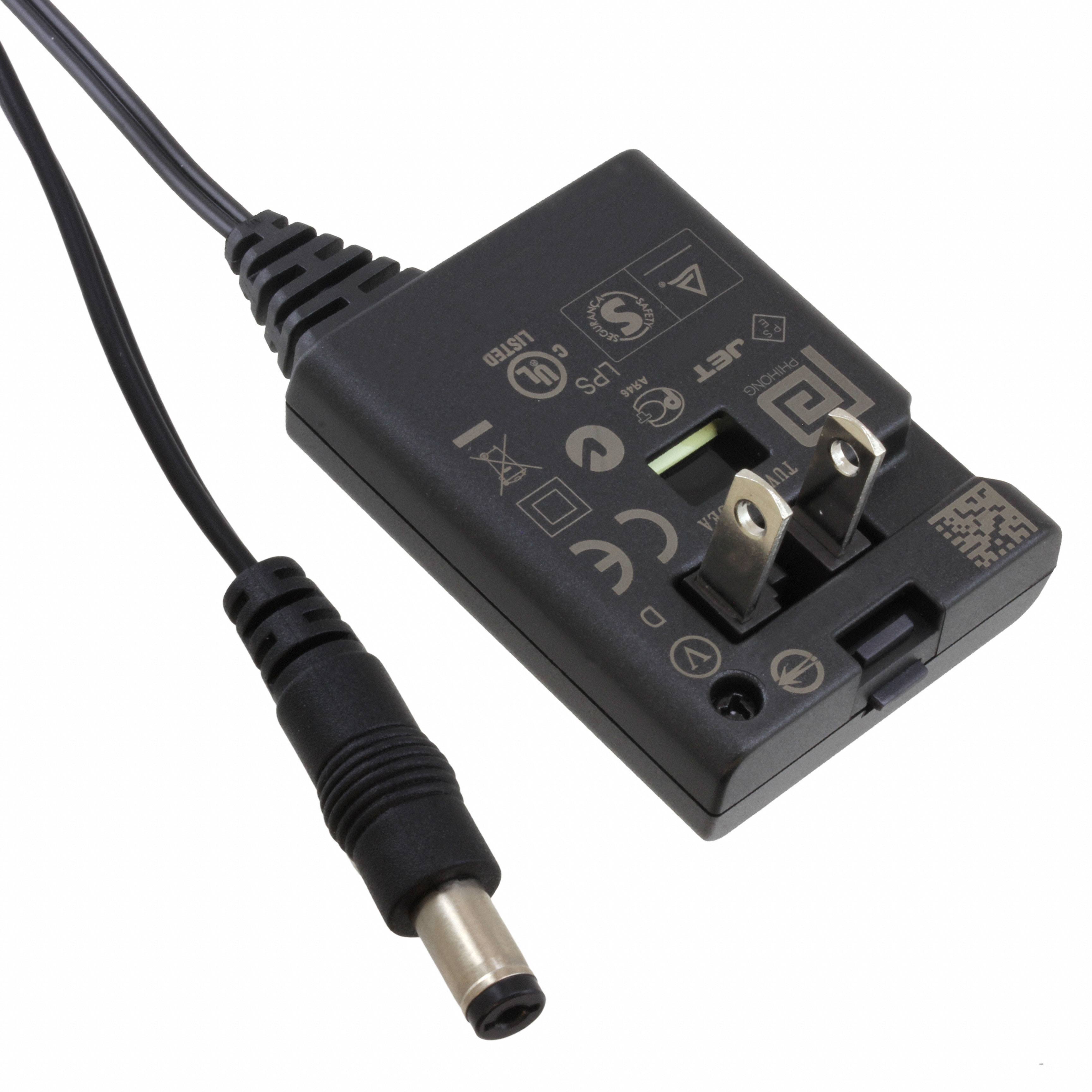

Phihong USA PSA10F-050(P)-R	Barrel Plug	AS/NZS cULus IEC PSE	Fixed Blade Multi-Blade	Wall Mount	2 A	North America	47 mm	2.36 "	0.59 in	60 mm	1.85 in	15 mm	ITE (Commercial)	CoC Tier 1 Level VI	100 mW	5 V	0.085 lb	38.56 g	NEMA 1-15P NEMA 1-15P Multi-Blade	264 VAC	90 VAC	40 °C	0 °C	10 W	2.1 mm 5.5 mm	9.5 mm	55022 60950-1 62368-1 CNS13438 CNS14336-1 CNS15663	Positive Center	1 m	39.4 in

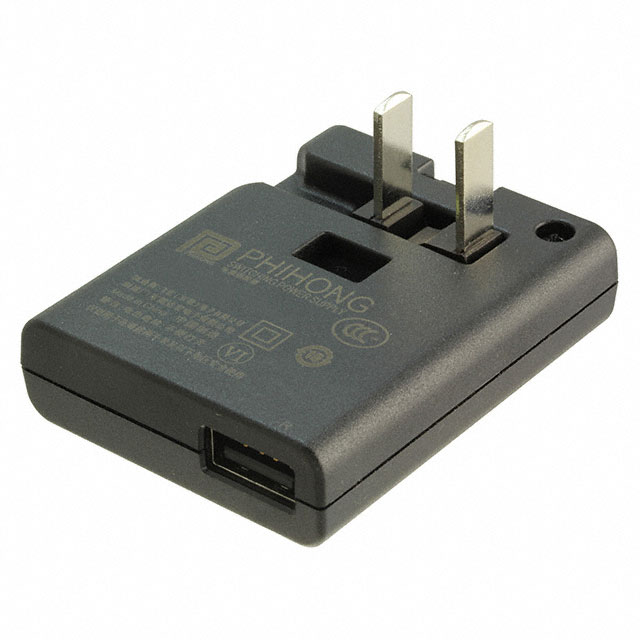

Phihong USA PSA10FC-050Q	USB A Receptacle	CCC CE cULus	Fixed Blade Multi-Blade	Wall Mount	2 A	International	47 mm	2.36 "	0.59 in	60 mm	1.85 in	15 mm	ITE (Commercial)	CoC Tier 1 Level VI	150 mW	5 V	0.085 lb	38.56 g	NEMA 1-15P Multi-Blade	264 VAC	90 VAC	40 °C	0 °C	10 W
Phihong USA PSA10F-050Q(D)	USB A Receptacle	CE cULus	Fixed Blade Multi-Blade	Wall Mount	2 A	North America	47 mm	2.36 "	0.59 in	60 mm	1.85 in	15 mm	ITE (Commercial)	CoC Tier 1 Level VI	150 mW	5 V	0.085 lb	38.56 g	NEMA 1-15P Multi-Blade	264 VAC	90 VAC	40 °C	0 °C	10 W
Phihong USA PSA10F-050Q(S)	USB A Receptacle	CE cULus	Fixed Blade Multi-Blade	Wall Mount	2 A	North America	47 mm	2.36 "	0.59 in	60 mm	1.85 in	15 mm	ITE (Commercial)	CoC Tier 1 Level VI	150 mW	5 V	0.085 lb	38.56 g	NEMA 1-15P Multi-Blade	264 VAC	90 VAC	40 °C	0 °C	10 W

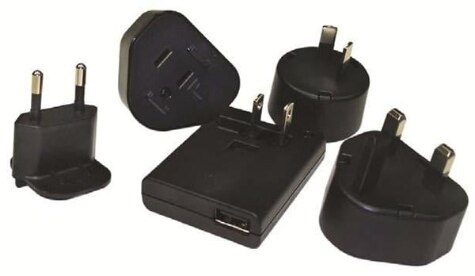

Phihong USA PSA10F-050Q(D)-R	USB A Receptacle	CE cULus	Fixed Blade	Wall Mount	2 A	North America	47 mm	2.36 "	0.59 in	60 mm	1.85 in	15 mm	ITE (Commercial)	CoC Tier 1 Level VI	150 mW	5 V			NEMA 1-15P	264 VAC	90 VAC	40 °C	0 °C	10 W

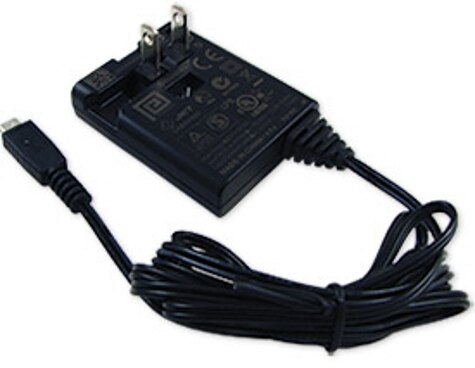

Phihong USA PSA10F-050-R	USB Micro	AS/NZS cULus IEC PSE	Fixed Blade Multi-Blade	Wall Mount	2 A	North America	47 mm	2.36 "	0.59 in	60 mm	1.85 in	15 mm	ITE (Commercial)	CoC Tier 1 Level VI	150 mW	5 V	0.085 lb	38.56 g	NEMA 1-15P NEMA 1-15P Multi-Blade	264 VAC	90 VAC	40 °C	0 °C	10 W			55022 60950-1 62368-1 CNS13438 CNS14336-1 CNS15663
