PT-54 Series
Manufacturer: Luminus Devices Inc.
Beta
⌘K

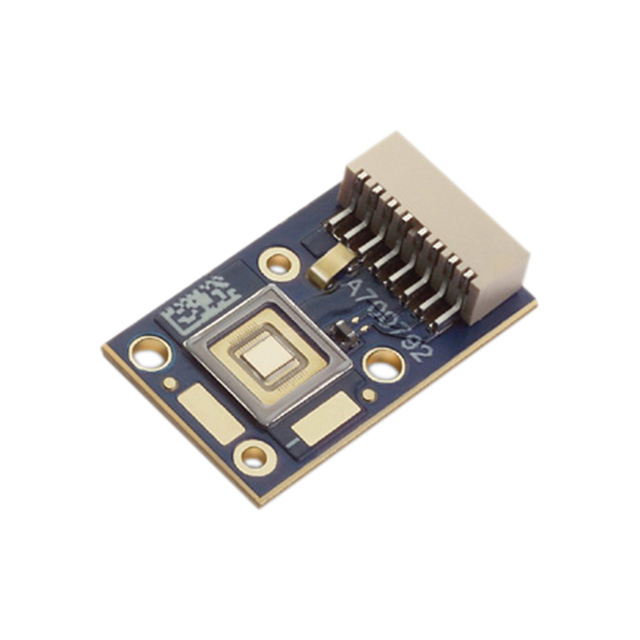

LED MOD PT-54 BLUE RECT
| Part | Size / Dimension [y] | Size / Dimension [x] | Current - Test | Wavelength | Lens Type | Height [z] | Features | Voltage - Forward (Vf) (Typ) | Color | Lumens/Watt @ Current - Test | Configuration | Light Emitting Surface (LES) [y] | Light Emitting Surface (LES) [x] | Temperature - Test | Luminous Flux @ Current/Temperature [Max] | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Luminus Devices Inc. | 16 mm | 26.5 mm | 13.5 A | 462 nm | Flat | 6.4 mm | With Connector | 3.7 V | Blue | 10 lm/W | Rectangle | 2.7 mm | 2 mm | 40 °C | 590 lm | 495 lm | 400 lm | LED Module |

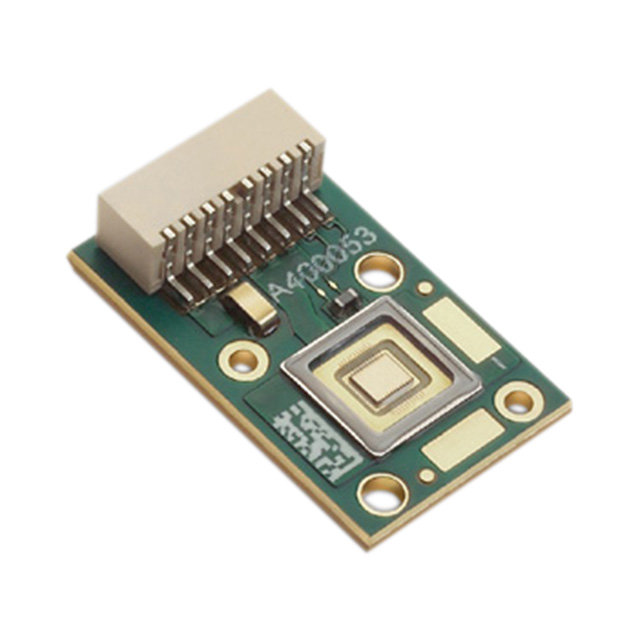

 Luminus Devices Inc. | 16 mm | 26.5 mm | 13.5 A | 525 nm | Flat | 6.4 mm | With Connector | 5.2 V | Green | 34 lm/W | Rectangle | 2.7 mm | 2 mm | 40 °C | 2400 lm | LED Module | ||
Luminus Devices Inc. | 16 mm | 26.5 mm | 13.5 A | 462 nm | Flat | 6.4 mm | With Connector | 3.7 V | Blue | 9 lm/W | Rectangle | 2.7 mm | 2 mm | 40 °C | 430 lm | LED Module | ||
 Luminus Devices Inc. | LED Module |
