VLMW1502 Series

Catalog

LED COOL WHITE DIFFUSED 0402 SMD

Part	Voltage - Forward (Vf) (Typ)	Lens Size [x]	Lens Size [y]	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [z]	Configuration	Lens Transparency	Lens Style	Color	Millicandela Rating	Mounting Type	Current - Test	Supplier Device Package	Lens Color	Viewing Angle	Package / Case

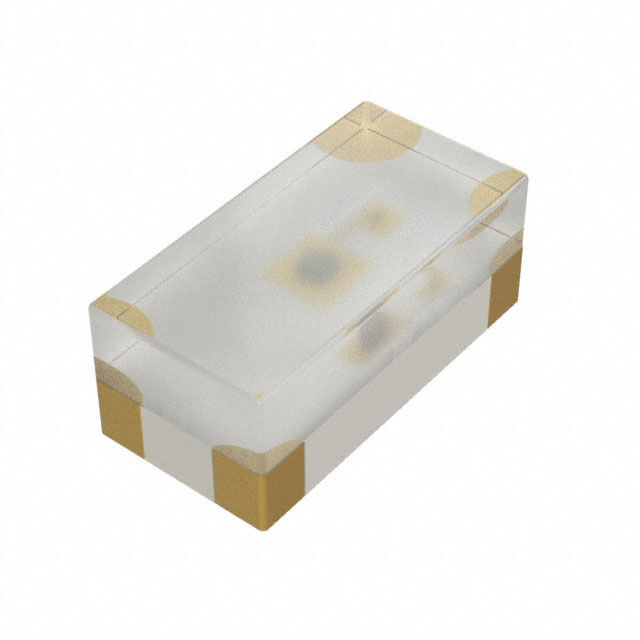

Vishay Semiconductor Opto Division VLMW1502-GS08	2.9 V	1 mm	0.5 mm	7000 K	1 mm	0.5 mm	0.45 mm	Standard	Diffused	Rectangle with Flat Top	Cool White	126 mcd	Surface Mount	5 mA	0402	Yellow	65 °	0402 (1005 Metric)
