QBHP684 Series
Manufacturer: QT Brightek (QTB)
Beta
⌘K
LED UV 367NM 700MA SMD
| Part | Viewing Angle | Wavelength | Current - DC Forward (If) (Max) [Max] | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Forward (Vf) (Typ) | Orientation | Radiant Intensity (Ie) Min @ If [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Temperature - Test | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Lumens/Watt @ Current - Test [custom] | Current - Max [custom] | Current - Max [custom] | Current - Max [custom] | Current - Max [custom] | Color | Supplier Device Package | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Luminous Flux @ Current/Temperature [custom] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Height - Seated (Max) | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

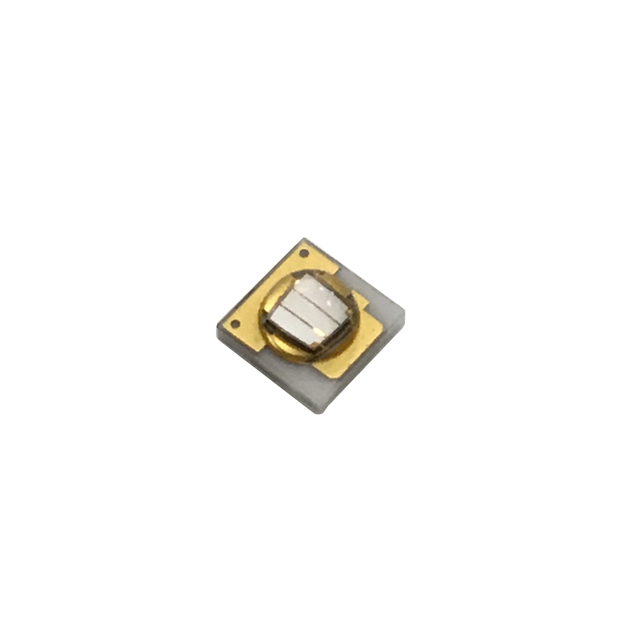

 QT Brightek (QTB) | 60 ° | 367 nm | 700 mA | Surface Mount | 2-SMD No Lead Exposed Pad | 80 °C | -40 °C | Ultraviolet (UV) | 3.4 V | Top View | |||||||||||||||||||||||||||||

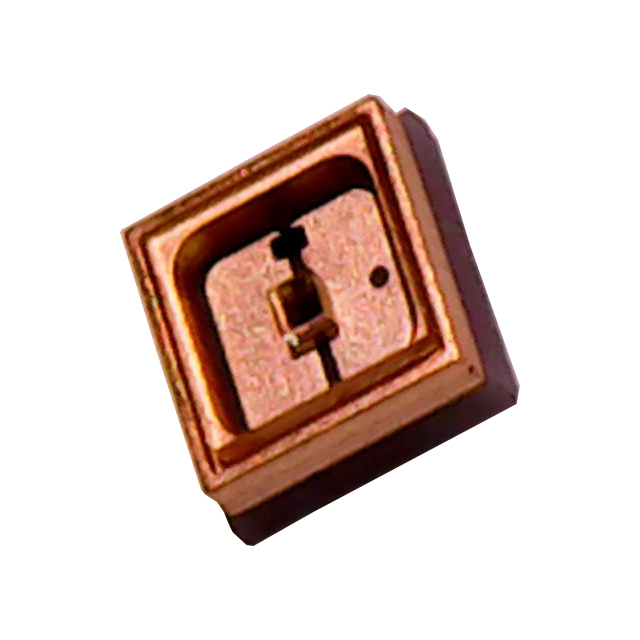

 QT Brightek (QTB) | 120 ° | 265 nm | 150 mA | Surface Mount | 1414 (3535 Metric) | 50 °C | -10 °C | Ultraviolet (UV) | 6 V | Top View | 7 mW/sr | ||||||||||||||||||||||||||||

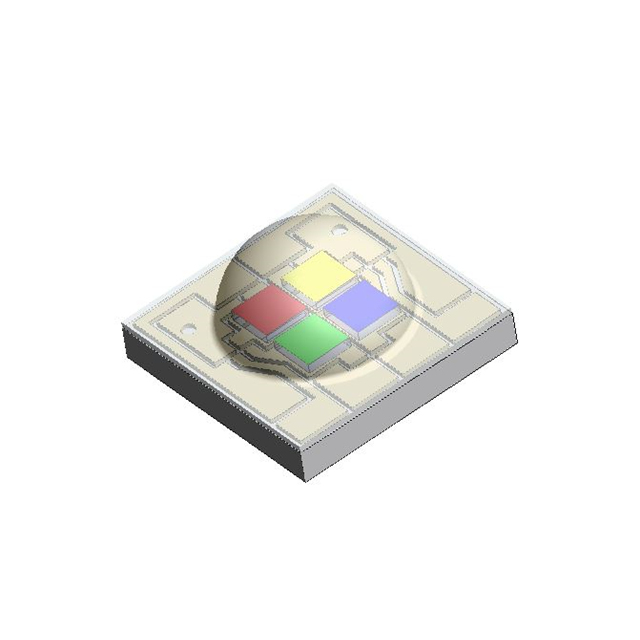

 QT Brightek (QTB) | 120 ° | 460 nm 520 nm 630 nm | Surface Mount | 1414 (3535 Metric) | 2.4 V 3.2 V 3.2 V 3.2 V | 0.081 in | 2.05 mm | 25 °C | 13 lm/W | 42 lm/W | 179 lm/W | 67 lm/W | 350 mA | 350 mA | 350 mA | 350 mA | Blue Green Red White | 1414 | 15 lm 200 lm | 75 lm | 35 lm | 0.136 " | 3.45 mm | 3.45 mm | 0.136 in | 350 mA | 350 mA | 350 mA | 350 mA | ||||||||||
QT Brightek (QTB) | 120 ° | 265 nm | 40 mA | Surface Mount | 1414 (3535 Metric) | 50 °C | -10 °C | Ultraviolet (UV) | 6 V | Top View | 1.6 mW/sr | ||||||||||||||||||||||||||||

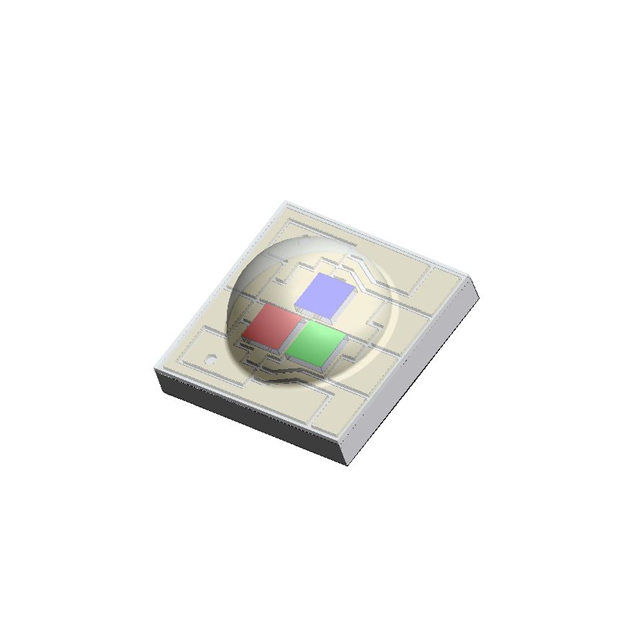

 QT Brightek (QTB) | 120 ° | 460 nm 520 nm 630 nm | Surface Mount | 1414 (3535 Metric) | 2.4 V 3.2 V 3.2 V | 0.085 in | 25 °C | 13 lm/W | 42 lm/W | 67 lm/W | 350 mA | 350 mA | 350 mA | Blue Green Red | 1414 | 0.136 " | 3.45 mm | 3.45 mm | 0.136 in | 2.15 mm | 35 lm | 15 lm | 75 lm | ||||||||||||||||

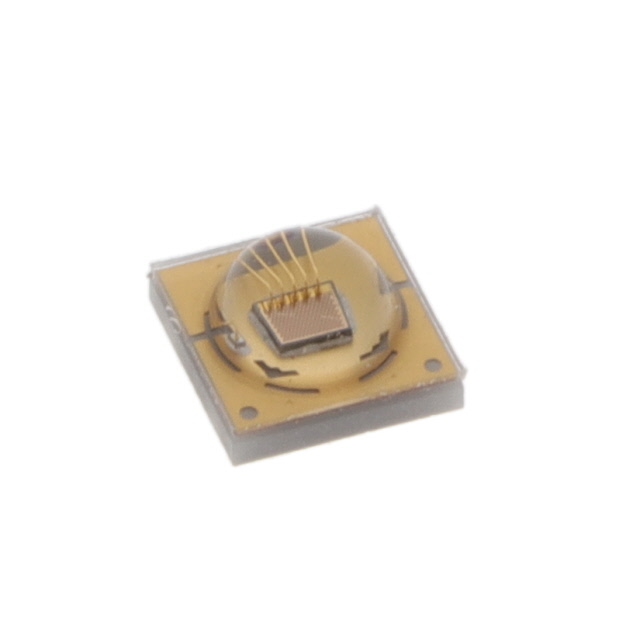

 QT Brightek (QTB) | 25 ° | 850 nm | 1.2 A | Surface Mount | 1414 (3535 Metric) | 85 °C | -40 C | Infrared (IR) | 2.3 V | Top View | |||||||||||||||||||||||||||||
 QT Brightek (QTB) | 120 ° | 405 nm | 700 mA | Surface Mount | 2-SMD No Lead Exposed Pad | 80 °C | -40 °C | Ultraviolet (UV) | 3.4 V | Top View | |||||||||||||||||||||||||||||

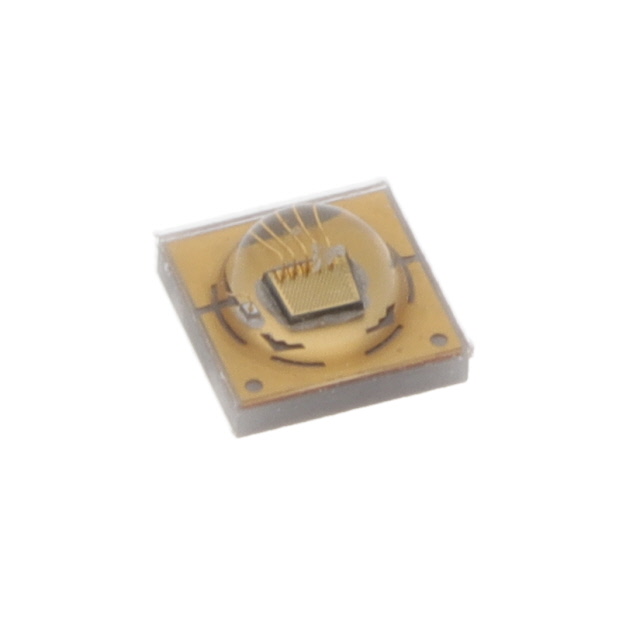

 QT Brightek (QTB) | 25 ° | 940 nm | 1.2 A | Surface Mount | 1414 (3535 Metric) | 85 °C | -40 C | Infrared (IR) | 2.3 V | Top View | |||||||||||||||||||||||||||||
QT Brightek (QTB) | 120 ° | 278 nm | 150 mA | Surface Mount | 1414 (3535 Metric) | 50 °C | -10 °C | Ultraviolet (UV) | 7 V | Top View | |||||||||||||||||||||||||||||

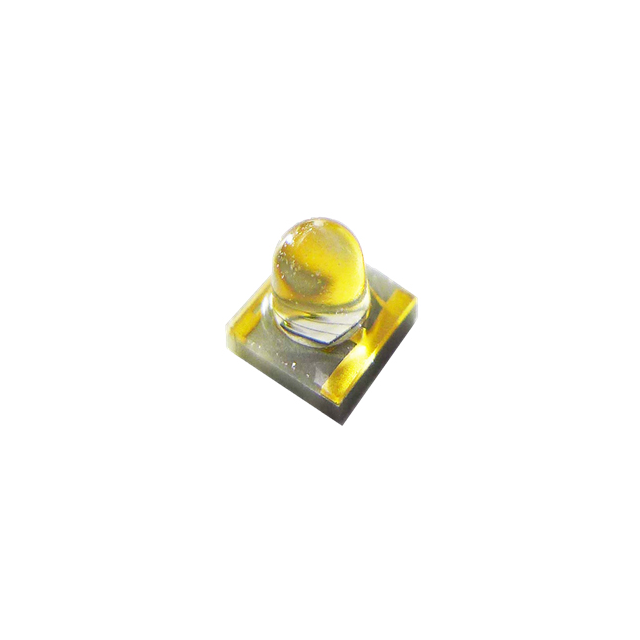

QT Brightek (QTB) | 60 ° | 385 nm | 700 mA | Surface Mount | 2-SMD No Lead Exposed Pad | 80 °C | -40 °C | Ultraviolet (UV) | 3.4 V | Top View |
