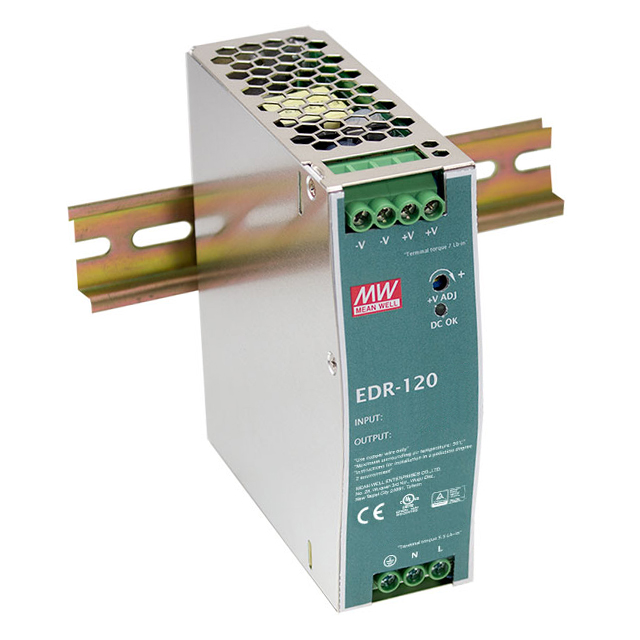

EDR-120 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 120W
| Part | Minimum Load Required | Number of Outputs | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Voltage - Output 1 | Features | Efficiency | Voltage - Isolation | Power (Watts) | DC Voltage - Input (Min) [Min] | Applications | Current - Output (Max) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Approval Agency | Input Type | DC Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 1 | 90 VAC | 264 VAC | 24 V | Adjustable Output Universal Input | 87.5 % | 3000 V | 120 W | 127 V | Industrial ITE (Commercial) | 5 A | 40 mm | 4.93 in | 125.2 mm | 113.5 mm | 4.47 " | 1.57 " | CB CE cULus RCM TUV | AC or DC | 370 V | 60 °C | -20 °C |
