JN1DS10S Series

Catalog

CONN PLG HSG FMALE 10POS INLINE

Part	Insert Material	Features	Orientation	Contact Size	Housing Color	Connector Type	Contact Type	Fastening Type	Ingress Protection	Number of Positions	Shielding	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Note	Type	Mounting Type	Shell Size - Insert

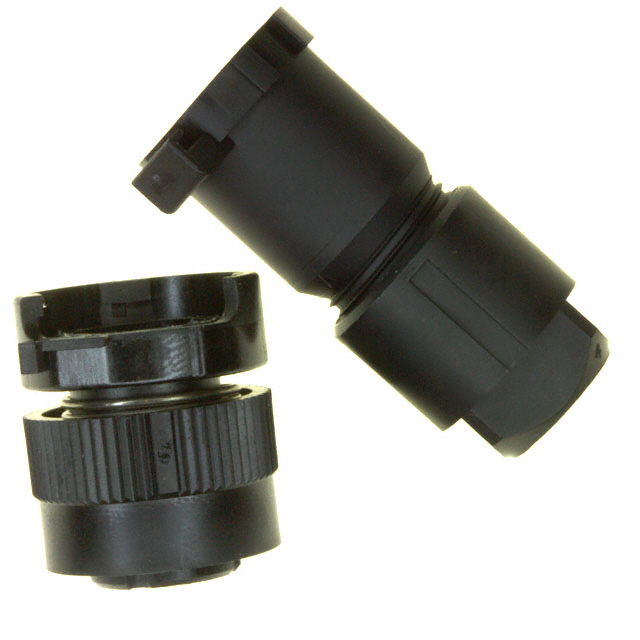

JAE Electronics JN1DS10SL2	Synthetic Resin	Backshell Coupling Nut	N (Normal)	22	Black	Plug Housing	Crimp	Push-Twist	IP67 - Dust Tight Waterproof	10	Unshielded	Circular	-20 ░C	125 °C	Synthetic Resin	Contacts Not Included	For Female Sockets	Free Hanging (In-Line)	S

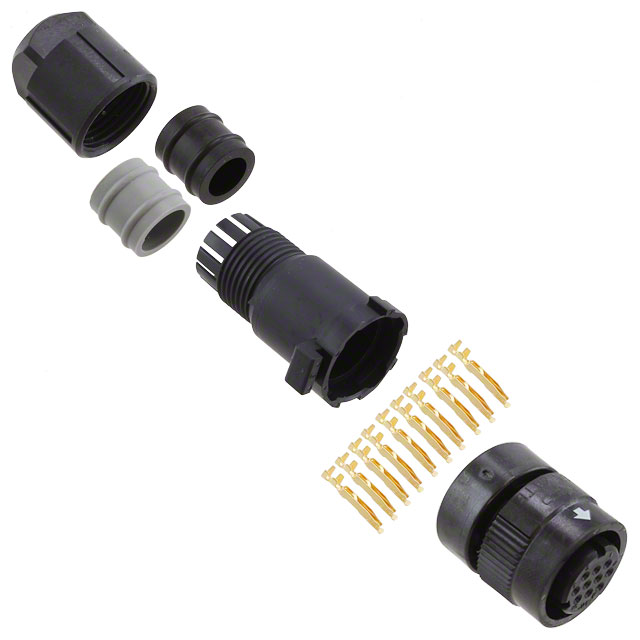

JAE Electronics JN1DS10SLK	Synthetic Resin	Backshell Coupling Nut	N (Normal)	22	Black	Plug Housing	Crimp	Push-Twist	IP67 - Dust Tight Waterproof	10	Unshielded	Circular	-20 ░C	125 °C	Synthetic Resin	Contacts Not Included	For Female Sockets	Free Hanging (In-Line)	S
JAE Electronics JN1DS10SL3	Synthetic Resin	Backshell Coupling Nut	N (Normal)	22	Black	Plug Housing	Crimp	Push-Twist	IP67 - Dust Tight Waterproof	10	Unshielded	Circular	-20 ░C	125 °C	Synthetic Resin	Contacts Not Included	For Female Sockets	Free Hanging (In-Line)	S

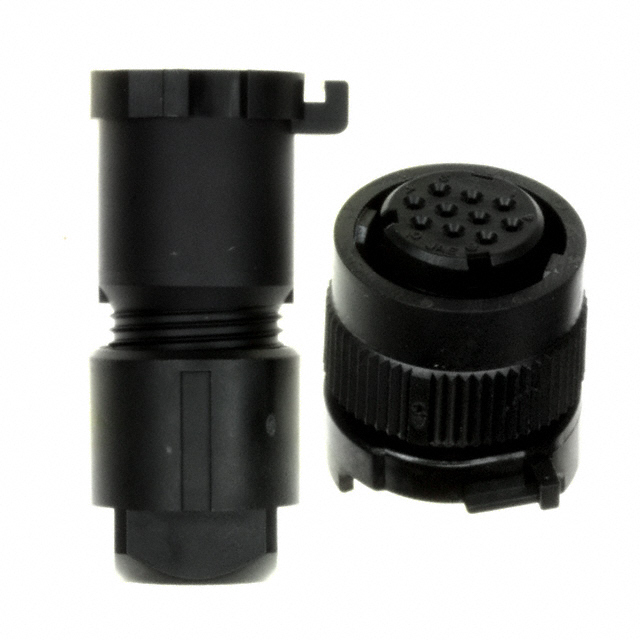

JAE Electronics JN1DS10SL1	Synthetic Resin	Backshell Coupling Nut	N (Normal)	22	Black	Plug Housing	Crimp	Push-Twist	IP67 - Dust Tight Waterproof	10	Unshielded	Circular	-20 ░C	125 °C	Synthetic Resin	Contacts Not Included	For Female Sockets	Free Hanging (In-Line)	S
