TSC2046E-Q1 Series

4-Wire Touch Screen Controller with low voltage digital I/O and extended ESD protection

Catalog

4-Wire Touch Screen Controller with low voltage digital I/O and extended ESD protection

Part	Current - Supply	Resolution (Bits)	Package / Case [x]	Package / Case	Package / Case [y]	Interface	Mounting Type	Touchscreen	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage Reference	Supplier Device Package	Grade	Qualification	Secondary Attributes	Function	Primary Attributes	Supplied Contents	Utilized IC / Part	Type
Texas Instruments TSC2046IPW	780 µA	12 b	0.173 in	16-TSSOP	4.4 mm	SPI	Surface Mount	4 Wire Resistive	85 °C	-40 °C	5.25 V	2.2 V	Internal	16-TSSOP
Texas Instruments TSC2046EQPWRQ1	970 µA	12 b	0.173 in	16-TSSOP	4.4 mm	SPI	Surface Mount	4 Wire Resistive	125 °C	-40 °C	5.25 V	2.2 V	Internal	16-TSSOP	Automotive	AEC-Q100
Texas Instruments TSC2046EIPW	780 µA	12 b	0.173 in	16-TSSOP	4.4 mm	SPI	Surface Mount	4 Wire Resistive	85 °C	-40 °C	5.25 V	2.2 V	Internal	16-TSSOP

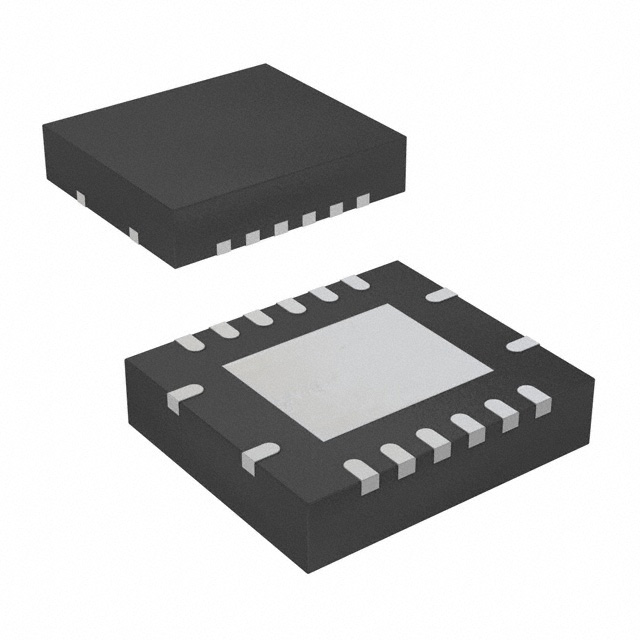

Texas Instruments TSC2046EIRGVT	780 µA	12 b		16-VQFN Exposed Pad		SPI	Surface Mount	4 Wire Resistive	85 °C	-40 °C	5.25 V	2.2 V	Internal	16-VQFN (4x4)
Texas Instruments TSC2046EIPWRG4	780 µA	12 b	0.173 in	16-TSSOP	4.4 mm	SPI	Surface Mount	4 Wire Resistive	85 °C	-40 °C	5.25 V	2.2 V	Internal	16-TSSOP
Texas Instruments TSC2046EIPWR	780 µA	12 b	0.173 in	16-TSSOP	4.4 mm	SPI	Surface Mount	4 Wire Resistive	85 °C	-40 °C	5.25 V	2.2 V	Internal	16-TSSOP
Texas Instruments TSC2046EIPWG4	780 µA	12 b	0.173 in	16-TSSOP	4.4 mm	SPI	Surface Mount	4 Wire Resistive	85 °C	-40 °C	5.25 V	2.2 V	Internal	16-TSSOP
Texas Instruments TSC2046IPWR	780 µA	12 b	0.173 in	16-TSSOP	4.4 mm	SPI	Surface Mount	4 Wire Resistive	85 °C	-40 °C	5.25 V	2.2 V	Internal	16-TSSOP

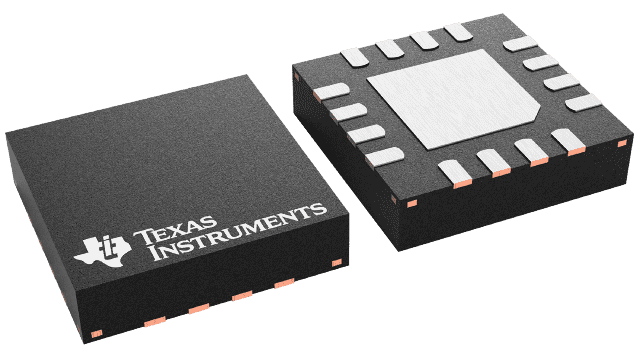

Texas Instruments TSC2046EIRGVR	780 µA	12 b		16-VFQFN Exposed Pad		SPI	Surface Mount	4 Wire Resistive	85 °C	-40 °C	5.25 V	2.2 V	Internal	16-VQFN (4x3.5)

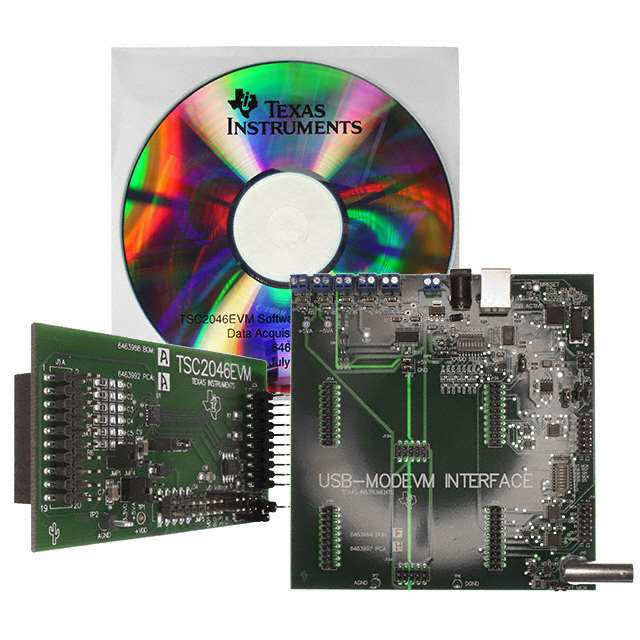

Texas Instruments TSC2046EVM-PDK																	Graphical User Interface (GUI)	Touch Screen Controller	4-Wire Resistive	Board(s)	TSC2046	Interface

Catalog

4-Wire Touch Screen Controller with low voltage digital I/O and extended ESD protection

Key Features

• Same Pinout as ADS78462.2V to 5.25V Operation1.5V to 5.25V Digital I/OInternal 2.5V ReferenceDirect Battery Measurement (0V to 6V)OnChip Temperature MeasurementTouch-Pressure MeasurementQSPi™ and SPI™ 3-Wire InterfaceAuto Power-DownExceeds IEC 61000-4-2 ESD Requirements±15V Contact DischargeNo External Components NeededAvailable In TSSOP-16, QFN-16, and VFBGA-48 PackagesAPPLICATIONSPersonal Digital AssistantsPortable InstrumentsPoint-of-Sale TerminalsPagersTouch Screen MonitorsCellular PhonesSPI and QSPI are trademarks of Motorola Inc.Microwire is a trademark of National Semiconductor Corporation.All other trademarks are the property of their respective owners.Same Pinout as ADS78462.2V to 5.25V Operation1.5V to 5.25V Digital I/OInternal 2.5V ReferenceDirect Battery Measurement (0V to 6V)OnChip Temperature MeasurementTouch-Pressure MeasurementQSPi™ and SPI™ 3-Wire InterfaceAuto Power-DownExceeds IEC 61000-4-2 ESD Requirements±15V Contact DischargeNo External Components NeededAvailable In TSSOP-16, QFN-16, and VFBGA-48 PackagesAPPLICATIONSPersonal Digital AssistantsPortable InstrumentsPoint-of-Sale TerminalsPagersTouch Screen MonitorsCellular PhonesSPI and QSPI are trademarks of Motorola Inc.Microwire is a trademark of National Semiconductor Corporation.All other trademarks are the property of their respective owners.

Description

The TSC2046E is the next-generation version of the ADS7846 4-wire touch screen controller, supporting a low-voltage I/O interface from 1.5V to 5.25V. The TSC2046E is 100% pin-compatible with the existing ADS7846, and drops into the same socket. This design allows for an easy upgrade of current applications to the new version. The TSC2046E also has an on-chip 2.5V reference that can be used for the auxiliary input, battery monitor, and temperature measurement modes. The reference can also be powered down when not used to conserve power. The internal reference operates down to a supply voltage of 2.7V, while monitoring the battery voltage from 0V to 6V. The low-power consumption of < 0.75mW typ at 2.7V (reference off), high-speed (up to 125kHz sample rate), and on-chip drivers make the TSC2046E an ideal choice for battery-operated systems such as personal digital assistants (PDAs) with resistive touch screens, pagers, cellular phones, and other portable equipment. The TSC2046E is available in TSSOP-16, QFN-16, and VFBGA-48 packages and is specified over the -40°C to +85°C temperature range. The TSC2046E is the next-generation version of the ADS7846 4-wire touch screen controller, supporting a low-voltage I/O interface from 1.5V to 5.25V. The TSC2046E is 100% pin-compatible with the existing ADS7846, and drops into the same socket. This design allows for an easy upgrade of current applications to the new version. The TSC2046E also has an on-chip 2.5V reference that can be used for the auxiliary input, battery monitor, and temperature measurement modes. The reference can also be powered down when not used to conserve power. The internal reference operates down to a supply voltage of 2.7V, while monitoring the battery voltage from 0V to 6V. The low-power consumption of < 0.75mW typ at 2.7V (reference off), high-speed (up to 125kHz sample rate), and on-chip drivers make the TSC2046E an ideal choice for battery-operated systems such as personal digital assistants (PDAs) with resistive touch screens, pagers, cellular phones, and other portable equipment. The TSC2046E is available in TSSOP-16, QFN-16, and VFBGA-48 packages and is specified over the -40°C to +85°C temperature range.
