6087C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

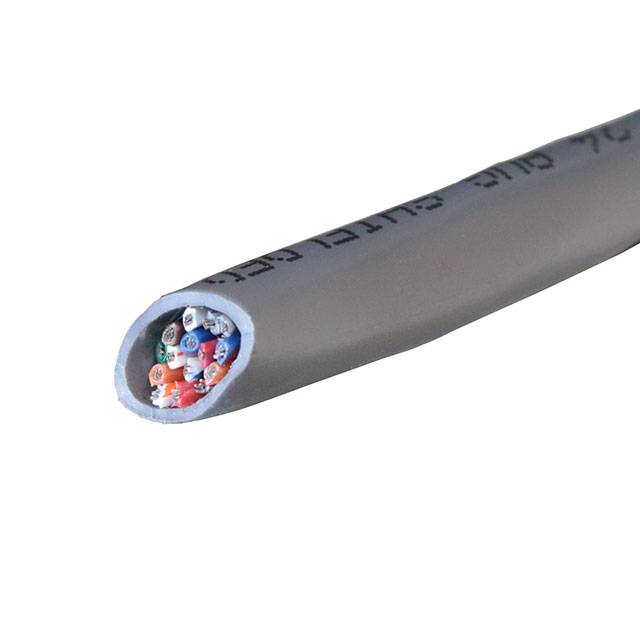

MULTI-PAIR 14COND 24AWG
| Part | Shield Coverage | Voltage | Jacket Color | Shield Material | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Cable Type | Conductor Material | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Features | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | 300 V | Slate | Aluminum | UL Style 2919 | 7.54 mm | 0.297 " | 0.889 mm | 0.035 in | Poly-Vinyl Chloride (PVC) | Multi-Pair | Copper Tinned | High Density Polyethylene (HDPE) | -20 C | 80 C | 14 | 24 AWG | 32 AWG | 7 | Foil | Drain Wire | 500 ' | 152.4 m | ||
ALPHA WIRE | 100 % | 300 V | Slate | Aluminum | UL Style 2919 | 7.54 mm | 0.297 " | 0.889 mm | 0.035 in | Poly-Vinyl Chloride (PVC) | Multi-Pair | Copper Tinned | High Density Polyethylene (HDPE) | -20 C | 80 C | 14 | 24 AWG | 32 AWG | 7 | Foil | Drain Wire | 1000 ft | 304.8 m | ||
ALPHA WIRE | 100 % | 300 V | Slate | Aluminum | UL Style 2919 | 7.54 mm | 0.297 " | 0.889 mm | 0.035 in | Poly-Vinyl Chloride (PVC) | Multi-Pair | Copper Tinned | High Density Polyethylene (HDPE) | -20 C | 80 C | 14 | 24 AWG | 32 AWG | 7 | Foil | Drain Wire | 100 ft | 30.5 m |
