8737 Series
Manufacturer: Belden Inc.
Beta
⌘K

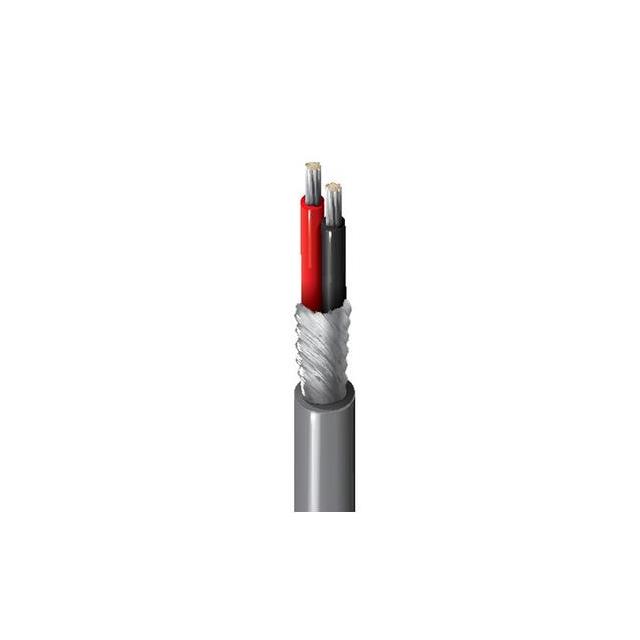

2 #22 PVC SHLD PVC
| Part | Shield Coverage | Shield Material | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Shield Type | Conductor Material | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Number of Conductors | Length | Length | Wire Gauge | Jacket Color | Voltage | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Multi-Conductor | Spiral | Copper Tinned | Audio Instrumentation | 0.635 mm | 0.025 in | UL Style CMG | 4.57 mm | 0.18 in | Poly-Vinyl Chloride (PVC) | 2 | 152.4 m | 500 ft | 22 AWG | Chrome | 300 VDC | 30 AWG | 7 |
Belden Inc. | 85 % | Copper Tinned | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | Multi-Conductor | Spiral | Copper Tinned | Audio Instrumentation | 0.635 mm | 0.025 in | UL Style CMG | 4.57 mm | 0.18 in | Poly-Vinyl Chloride (PVC) | 2 | 304.8 m | 1000 ft | 22 AWG | Chrome | 300 VDC | 30 AWG | 7 |
