PKH.M1 Series
Manufacturer: LEMO
Beta
⌘K

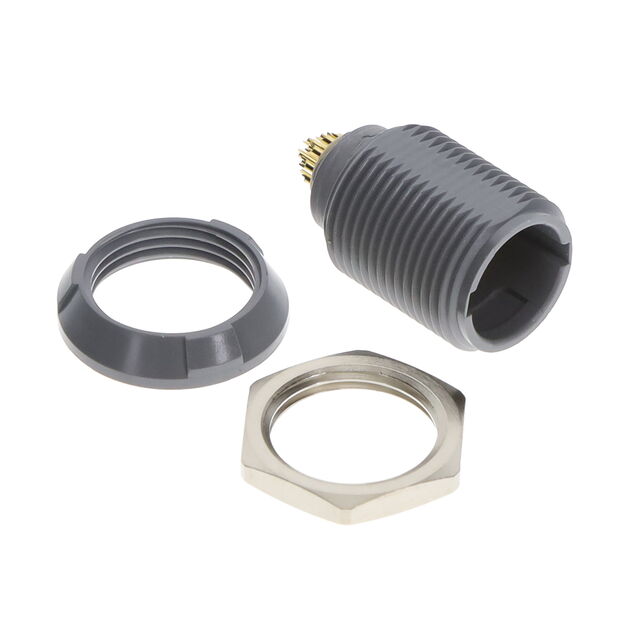

CONN RCPT MALE 14P GOLD SLDR CUP
| Part | Mounting Feature | Connector Type | Shell Material | Insert Material | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Applications | Ingress Protection | Primary Material | Mounting Type | Fastening Type | Contact Finish - Mating | Current Rating (Amps) | Color | Shielding | Number of Positions | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Front and Rear Side Nut | Receptacle Male Pins | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | H | 170 °C | -50 °C | M14 | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Plastic | Panel Mount | Detent Lock Push-Pull | Gold | 2 A | Gray | Unshielded | 14 | |
LEMO | Front and Rear Side Nut | Receptacle Male Pins | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | H | 170 °C | -50 °C | M10 | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Plastic | Panel Mount | Detent Lock Push-Pull | Gold | 3 A | Gray | Unshielded | 10 | |
LEMO | Front and Rear Side Nut | Receptacle Female Sockets | Polysulfone (PSU) | Polyetheretherketone (PEEK) | H | 150 °C | -50 °C | M10 | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Plastic | Panel Mount Right Angle Through Hole | Detent Lock Push-Pull | Gold | 3 A | Blue Gray | Unshielded | 10 | Solder |
LEMO | Front and Rear Side Nut | Receptacle Male Pins | Polyetherimide (PEI) | Polyetheretherketone (PEEK) | H | 170 °C | -50 °C | M14 | Automotive Industrial Medical Testing Equipment & Measurement | IP50 - Dust Protected | Plastic | Panel Mount | Detent Lock Push-Pull | Gold | 2 A | Gray Red | Unshielded | 14 |
