725-063 Series
Manufacturer: EDAC Inc.
Beta
⌘K

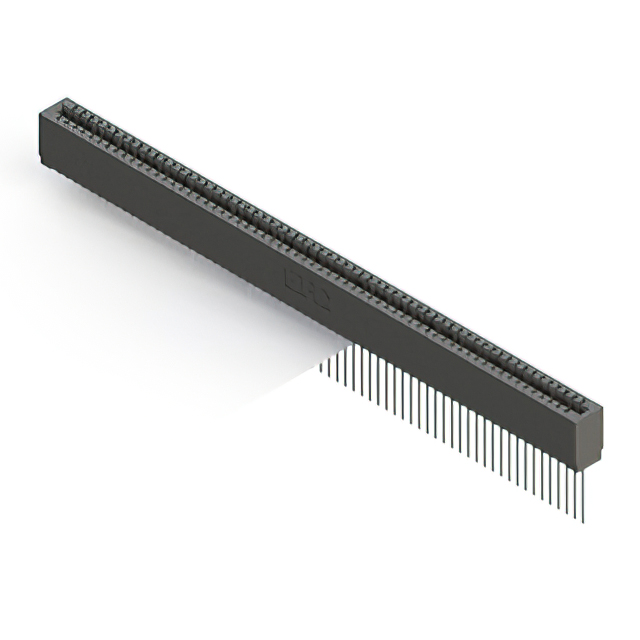

CONN EDGE SINGLE FML 63POS 0.100
| Part | Material - Insulation | Termination Rows | Color | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Read Out | Contact Material | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Number of Positions | Contact Finish | Contact Type | Termination | Gender | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions/Bay/Row | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | -40 C | 105 ░C | Non Specified - Single Edge | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 63 | Gold | Cantilever | Press-Fit Wire Wrap | Female | 30 Áin | 0.76 Ám | 1 | 63 | 0.1 " | 2.54 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | -40 C | 105 ░C | Non Specified - Single Edge | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 63 | Gold | Cantilever | Press-Fit Wire Wrap | Female | 30 Áin | 0.76 Ám | 1 | 63 | 0.1 " | 2.54 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | -40 C | 105 ░C | Non Specified - Single Edge | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 63 | Gold | Cantilever | Press-Fit | Female | 30 Áin | 0.76 Ám | 1 | 63 | 0.1 " | 2.54 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | Black | -40 C | 105 ░C | Non Specified - Single Edge | Single | Copper Alloy | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | 63 | Gold | Cantilever | Press-Fit | Female | 30 Áin | 0.76 Ám | 1 | 63 | 0.1 " | 2.54 mm |
