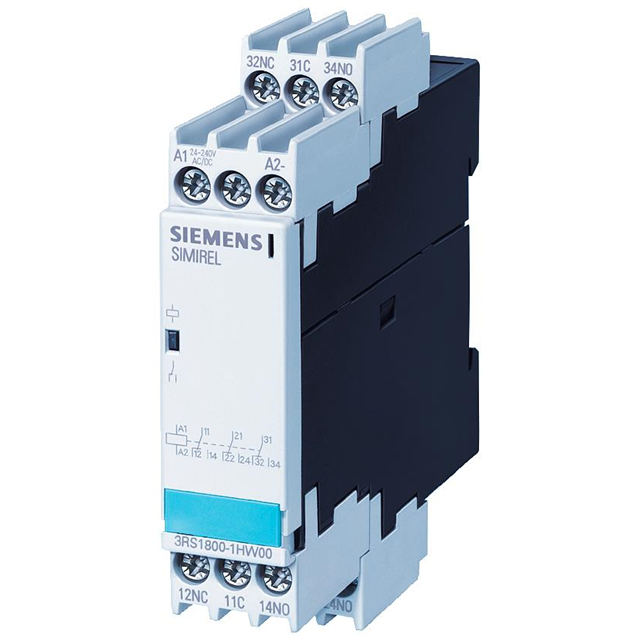

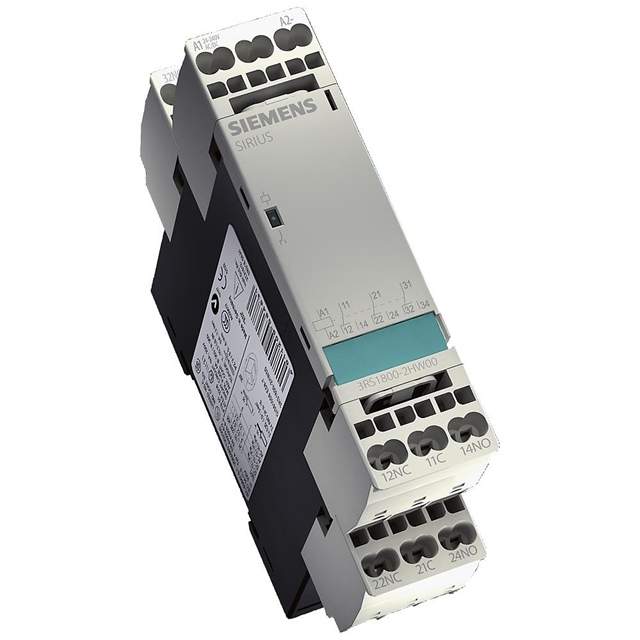

3RS180 Series

Manufacturer: Siemens

Catalog

RELAY GEN PURP DPDT 3A 24-120V

Part	Contact Rating (Current)	Coil Voltage [Min]	Coil Voltage [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Contact Form	Approval Agency	Relay Type	Termination Style	Load - Max Switching	Mounting Type	Switching Voltage [Max]
Siemens 3RS18002BQ00	3 A	24 VAC	120 VAC	-25 °C	60 °C	Non Latching	DPDT (2 Form C)	CCC CSA EAC UL	General Purpose	Spring Terminal	750 VA	DIN Rail	250 VAC
Siemens 3RS18002HQ01	3 A	24 VAC	120 VAC	-25 °C	60 °C	Non Latching	3PDT (3 Form C)	CCC CSA EAC UL	General Purpose	Spring Terminal	750 VA	DIN Rail	250 VAC
Siemens 3RS18002AQ00	3 A	24 VAC	120 VAC	-25 °C	60 °C	Non Latching	SPDT (1 Form C)	CCC CSA EAC UL	General Purpose	Spring Terminal	750 VA	DIN Rail	250 VAC
Siemens 3RS18001HQ00	3 A	24 VAC	120 VAC	-25 °C	60 °C	Non Latching	3PDT (3 Form C)	CCC CSA EAC UL	General Purpose	Screw Terminal	750 VA	DIN Rail	250 VAC
Siemens 3RS18001AP00	3 A	24 VAC	240 VAC	-25 °C	60 °C	Non Latching	SPDT (1 Form C)	CCC CSA EAC UL	General Purpose	Screw Terminal	750 VA	DIN Rail	250 VAC
Siemens 3RS18001HW00	3 A	24 VAC	240 VAC	-25 °C	60 °C	Non Latching	3PDT (3 Form C)	CCC CSA EAC UL	General Purpose	Screw Terminal	750 VA	DIN Rail	250 VAC
Siemens 3RS18002AP00	3 A	24 VAC	240 VAC	-25 °C	60 °C	Non Latching	SPDT (1 Form C)	CCC CSA EAC UL	General Purpose	Spring Terminal	750 VA	DIN Rail	250 VAC
Siemens 3RS18001BQ00	3 A	24 VAC	120 VAC	-25 °C	60 °C	Non Latching	DPDT (2 Form C)	CCC CSA EAC UL	General Purpose	Screw Terminal	750 VA	DIN Rail	250 VAC
Siemens 3RS18001HQ01	3 A	24 VAC	120 VAC	-25 °C	60 °C	Non Latching	3PDT (3 Form C)	CCC CSA EAC UL	General Purpose	Screw Terminal	750 VA	DIN Rail	250 VAC
Siemens 3RS18002HP01	3 A	24 VAC	240 VAC	-25 °C	60 °C	Non Latching	3PDT (3 Form C)	CCC CSA EAC UL	General Purpose	Spring Terminal	750 VA	DIN Rail	250 VAC
