796696 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

TERMI-BLOK PLUG STACKING 9POS.

Part	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Torque - Screw	Torque - Screw	Screw Size	Insulation Height	Insulation Height	Material Flammability Rating	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Voltage - UL	Mounting Type	Features	Type	Contact Mating Finish	Termination Style	Plug Wire Entry	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Pitch	Pitch	Number of Levels	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Positions Per Level [custom]

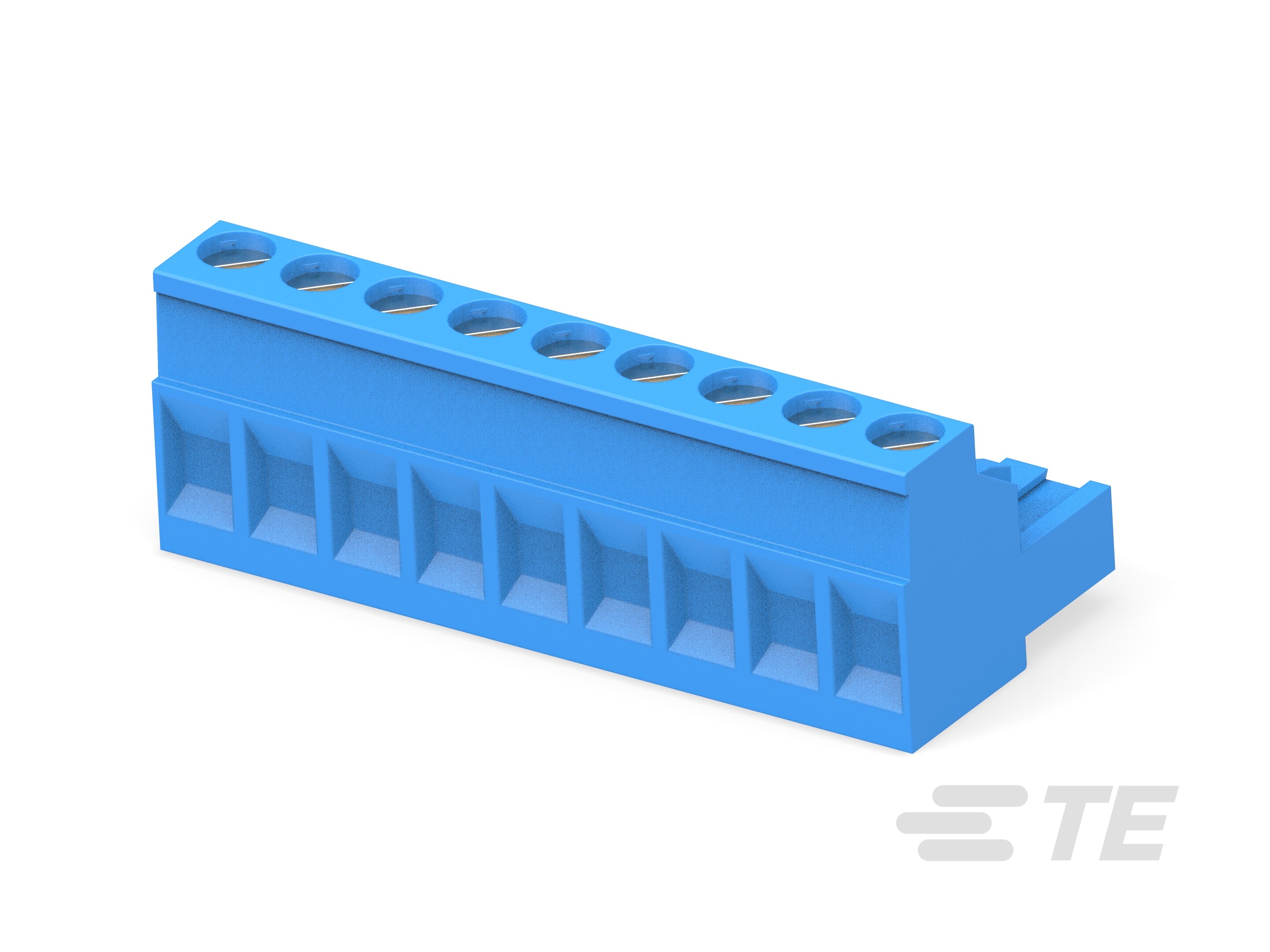

TE Connectivity AMP Connectors 796696-9	Phosphor Bronze	7.5 mm	6 mm	7 Lb-In	0.79 Nm	M3	0.61 in	15.49 mm	UL94 V-0	30 AWG	12 AWG	9	-40 C	110 °C	9	300 V	Free Hanging (In-Line)	Retention Latches (Non-Wire Side) Side Stacking	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	180 °	Blue	3 mm²	0.05 mm²	0.197 in	5 mm	1

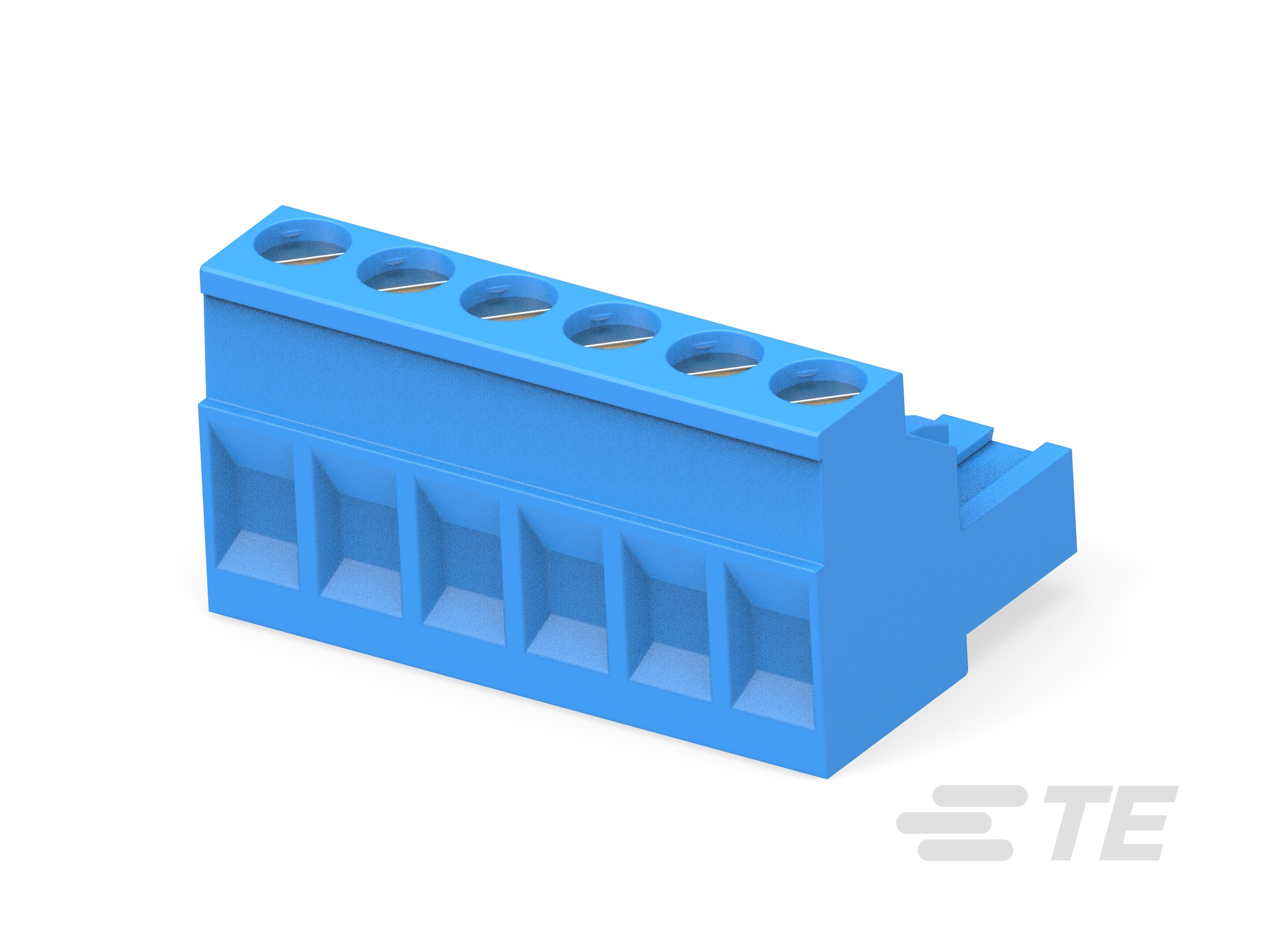

TE Connectivity AMP Connectors 796696-6	Phosphor Bronze	7.5 mm	6 mm	7 Lb-In	0.79 Nm	M3	0.61 in	15.49 mm	UL94 V-0	30 AWG	12 AWG	6	-40 C	110 °C	6	300 V	Free Hanging (In-Line)	Retention Latches (Non-Wire Side) Side Stacking	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	180 °	Blue	3 mm²	0.05 mm²	0.197 in	5 mm	1

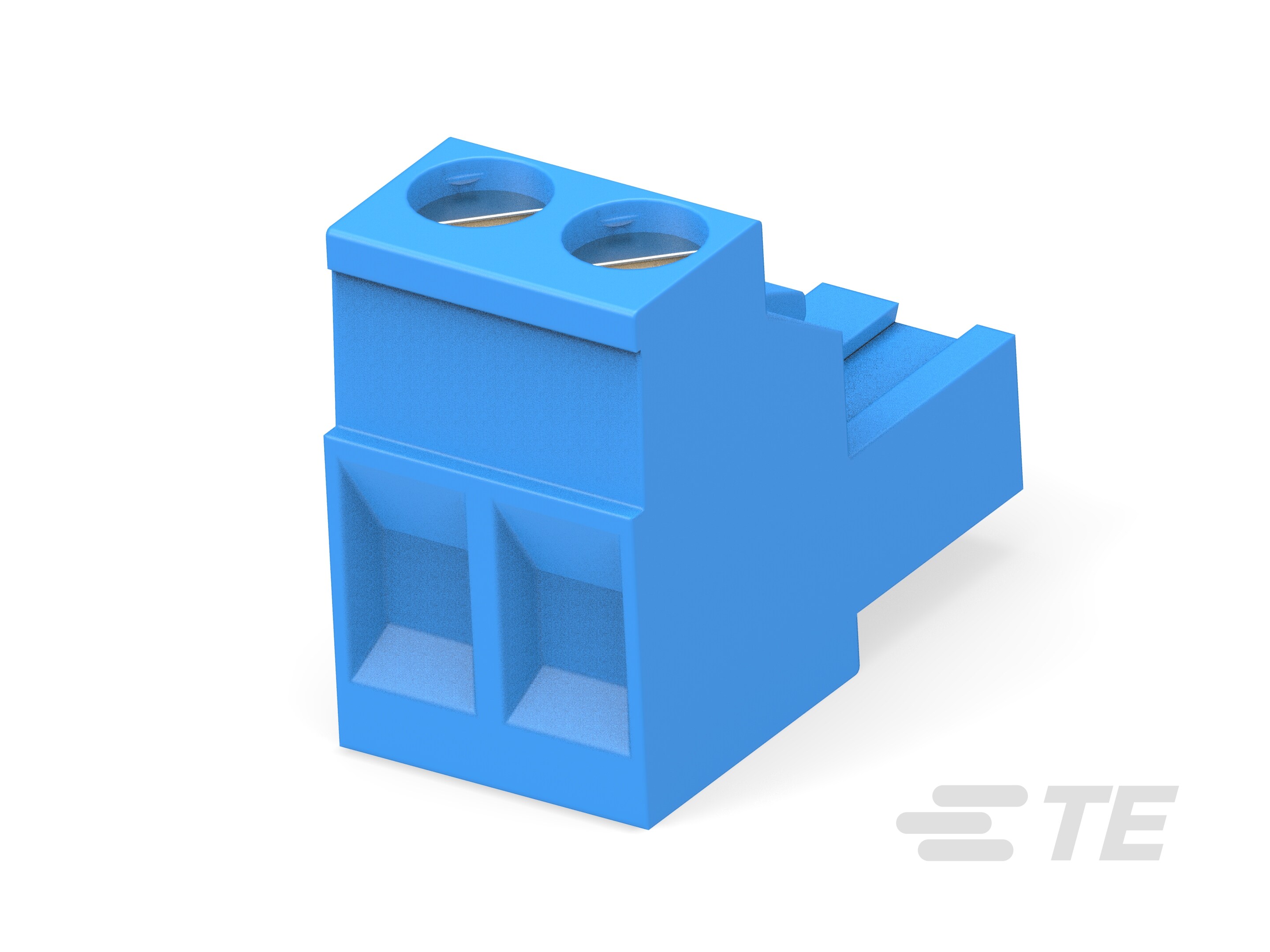

TE Connectivity AMP Connectors 796696-2	Phosphor Bronze	7.5 mm	6 mm	7 Lb-In	0.79 Nm	M3	0.61 in	15.49 mm	UL94 V-0	30 AWG	12 AWG	2	-40 C	110 °C	2	300 V	Free Hanging (In-Line)	Retention Latches (Non-Wire Side) Side Stacking	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	180 °	Blue	3 mm²	0.05 mm²	0.197 in	5 mm	1

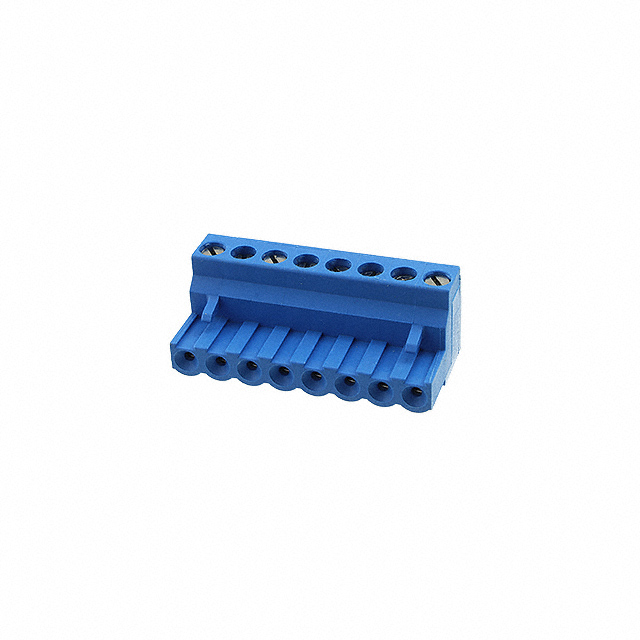

TE Connectivity AMP Connectors 796696-8	Phosphor Bronze	7.5 mm	6 mm	7 Lb-In	0.79 Nm	M3	0.61 in	15.49 mm	UL94 V-0	30 AWG	12 AWG	8	-40 C	110 °C	8	300 V	Free Hanging (In-Line)	Retention Latches (Non-Wire Side) Side Stacking	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	180 °	Blue	3 mm²	0.05 mm²	0.197 in	5 mm	1	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 796696-7	Phosphor Bronze	7.5 mm	6 mm	7 Lb-In	0.79 Nm	M3	0.61 in	15.49 mm	UL94 V-0	30 AWG	12 AWG		-40 C	110 °C	7	300 V	Free Hanging (In-Line)	Retention Latches (Non-Wire Side) Side Stacking	Plug Female Sockets	Tin	Screw - Rising Cage Clamp	180 °	Blue	3 mm²	0.05 mm²	0.197 in	5 mm	1	3 mm˛	0.05 mm˛	7
