3633 Series
Manufacturer: Belden Inc.
Beta
⌘K

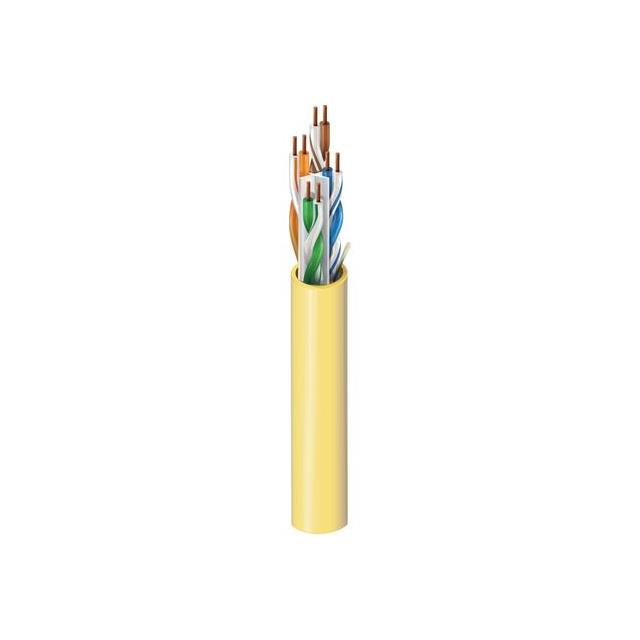

CAT6++ HORIZ BONDED-PAIR 4PR UTP
| Part | Number of Conductors | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Features | Cable Type | Usage | Voltage | Conductor Material | Conductor Insulation | Jacket Color | Ratings | Jacket (Insulation) Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 8 | 23 AWG | 0.23 in | 5.84 mm | Solid | Flame Retardant Rip Cord | Multi-Pair Cat6 | Ethernet | 300 VDC | Copper Bare | Fluorinated Ethylene-Propylene (FEP) | Gray | UL Style CMP | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft |
 Belden Inc. | 8 | 23 AWG | 0.23 in | 5.84 mm | Solid | Flame Retardant Rip Cord | Multi-Pair Cat6 | Ethernet | 300 VDC | Copper Bare | Fluorinated Ethylene-Propylene (FEP) | Blue | UL Style CMP | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft |
Belden Inc. | 8 | 23 AWG | 0.23 in | 5.84 mm | Solid | Flame Retardant Rip Cord | Multi-Pair Cat6 | Ethernet | 300 VDC | Copper Bare | Fluorinated Ethylene-Propylene (FEP) | Green | UL Style CMP | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft |
Belden Inc. | 8 | 23 AWG | 0.23 in | 5.84 mm | Solid | Flame Retardant Rip Cord | Multi-Pair Cat6 | Ethernet | 300 VDC | Copper Bare | Fluorinated Ethylene-Propylene (FEP) | Red | UL Style CMP | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft |
Belden Inc. | 8 | 23 AWG | 0.23 in | 5.84 mm | Solid | Flame Retardant Rip Cord | Multi-Pair Cat6 | Ethernet | 300 VDC | Copper Bare | Fluorinated Ethylene-Propylene (FEP) | Green | UL Style CMP | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft |
Belden Inc. | 8 | 23 AWG | 0.23 in | 5.84 mm | Solid | Flame Retardant Rip Cord | Multi-Pair Cat6 | Ethernet | 300 VDC | Copper Bare | Fluorinated Ethylene-Propylene (FEP) | Blue | UL Style CMP | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft |
Belden Inc. | 8 | 23 AWG | 0.23 in | 5.84 mm | Solid | Flame Retardant Rip Cord | Multi-Pair Cat6 | Ethernet | 300 VDC | Copper Bare | Fluorinated Ethylene-Propylene (FEP) | White | UL Style CMP | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft |
Belden Inc. | 8 | 23 AWG | 0.23 in | 5.84 mm | Solid | Flame Retardant Rip Cord | Multi-Pair Cat6 | Ethernet | 300 VDC | Copper Bare | Fluorinated Ethylene-Propylene (FEP) | Red | UL Style CMP | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 304.8 m | 1000 ft |
