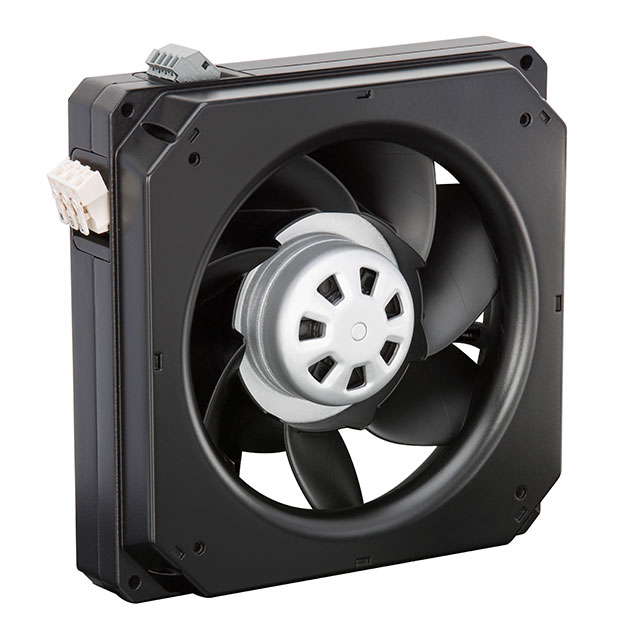

K3G200 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
AC AXIAL FAN, 230V, SQUARE, 245.5 MM, 90 MM, BALL BEARING, 547 CFM
| Part | Material - Frame | Material - Blade | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | RPM | Features | Termination | Power (Watts) | Air Flow | Air Flow | Voltage - Rated | Fan Type | Bearing Type | Weight [custom] | Weight [custom] | Ingress Protection | Static Pressure | Static Pressure | Width [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage Range [Min] | Voltage Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polypropylene (PP) | Polyamide (PA) Nylon | 0.7 A | -25 °C | 60 °C | UL | 3100 RPM | Speed Sensor (Tach) | Terminal Block | 80 W | 547 CFM | 15.32 m³/min | 230 VAC | Tubeaxial | Ball | 2 kg | 4.4 lbs | IP54 - Dust Protected Water Resistant | 219.2 Pa | 0.88 in H2O | 90 mm | 245.5 mm | 245.5 mm | ||
 ebm-papst Inc. | Polypropylene (PP) | Polyamide (PA) Nylon | -25 °C | 60 °C | UL | 2850 RPM | Speed Sensor (Tach) | Terminal Block | 65 W | 506 CFM | 14.17 m³/min | 115 VAC | Tubeaxial | Ball | 2 kg | 4.4 lbs | IP54 - Dust Protected Water Resistant | 179.3 Pa | 0.72 in H2O | 90 mm | 245.5 mm | 245.5 mm | 100 VAC | 130 VAC |
