FWA020024 Series
Manufacturer: Inventus Power
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

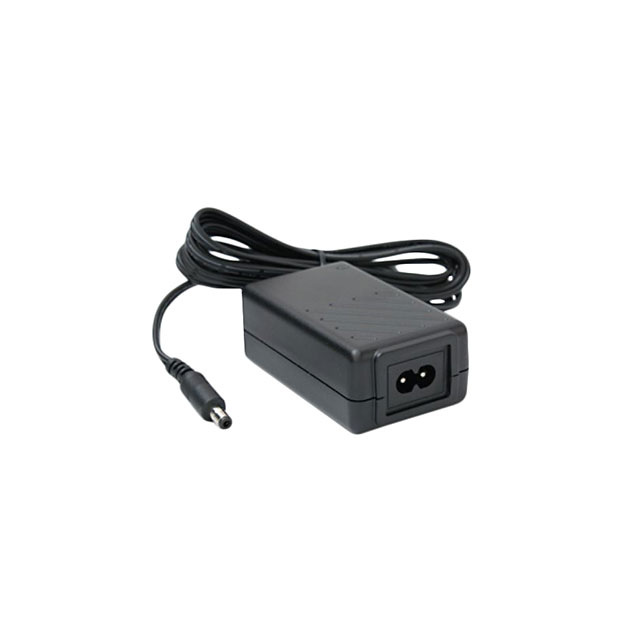

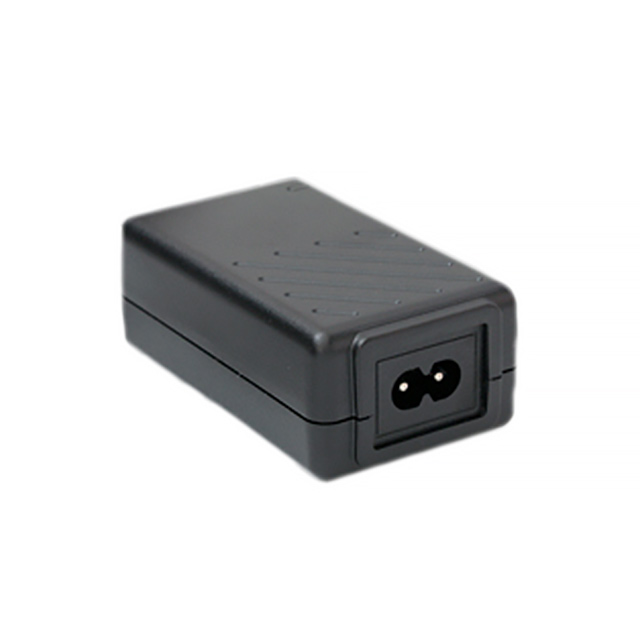

AC/DC DESKTOP ADAPTER 24V 20W
| Part | Voltage - Output | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Input Type | Applications | Power (Watts) | Region Utilized | Efficiency | Output Connector Length | Output Connector | Output Connector O.D. | Output Connector I.D. | Approval Agency | No Load Power Consumption (Max) | Current - Output (Max) | Form | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | Cord Length | Polarization | Input Connector | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Inventus Power | 24 V | 3.45 in | 1.3 in | 2.04 in | Cord (Sold Separately) | ITE (Commercial) | 20 W | International | Level VI | 9.5 mm | Barrel Plug | 5.5 mm | 2.5 mm | CB CE GS TUV | 300 mW | 840 mA | Desktop (Class I) | 60 °C | 0 °C | 85 VAC | 264 V | 48 in | Positive Center | IEC 320-C6 | 0.3 lb |
 Inventus Power | 24 V | 3.45 in | 1.3 in | 2.04 in | Cord (Sold Separately) | ITE (Commercial) | 20 W | International | Level VI | 9.5 mm | Barrel Plug | 5.5 mm | 2.5 mm | CB CE cTUVus | 300 mW | 840 mA | Desktop (Class II) | 60 °C | 0 °C | 85 VAC | 264 V | 48 in | Positive Center | IEC 320-C8 | 0.3 lb |
