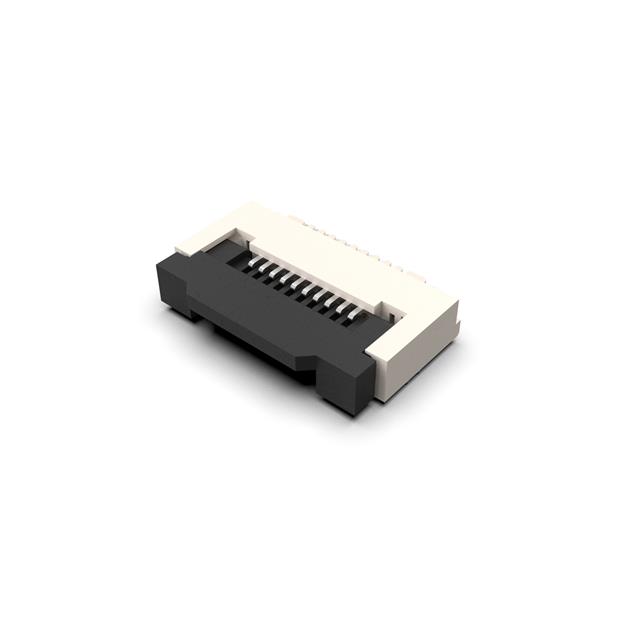

FFC2B35 Series
Manufacturer: GCT
Beta
⌘K
FFC & FPC CONNECTORS .5MM SIDEENTRY FLAT FLEX CBL CONN 50P SN
| Part | Current Rating (Amps) | Actuator Color | Mating Cycles | Housing Color | Cable End Type | Flat Flex Type | Connector/Contact Type | Mounting Type | Height Above Board | Height Above Board | FFC, FCB Thickness | Pitch | Pitch | Actuator Material | Housing Material | Contact Material | Material Flammability Rating | Number of Positions | Locking Feature | Contact Finish | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Features | Contact Finish Thickness | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | 50 | Flip Lock | Tin | Solder | 85 °C | -40 C | 50 V | Solder Retention | ||
 GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | 10 | Flip Lock | Gold | Solder | 85 °C | -40 C | 50 V | Solder Retention | Flash | |
 GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | 21 | Flip Lock | Gold | Solder | 85 °C | -40 C | 50 V | Solder Retention | Flash | |
GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | Flip Lock | Gold | Solder | 85 °C | -40 C | 50 V | Solder Retention | Flash | 33 | |
GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | 4 | Flip Lock | Tin | Solder | 85 °C | -40 C | 50 V | Solder Retention | ||
GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | 46 | Flip Lock | Gold | Solder | 85 °C | -40 C | 50 V | Solder Retention | Flash | |
GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | 39 | Flip Lock | Gold | Solder | 85 °C | -40 C | 50 V | Solder Retention | Flash | |
GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | 42 | Flip Lock | Tin | Solder | 85 °C | -40 C | 50 V | Solder Retention | ||
GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | 5 | Flip Lock | Tin | Solder | 85 °C | -40 C | 50 V | Solder Retention | ||
GCT | 400 mA | Black | 30 | Natural | Straight Tapered | FFC FPC | Contacts Bottom | Right Angle Surface Mount | 2 mm | 0.079 in | 0.3 mm | 0.02 " | 0.5 mm | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) | Phosphor Bronze | UL94 V-0 | 50 | Flip Lock | Gold | Solder | 85 °C | -40 C | 50 V | Solder Retention | Flash |
