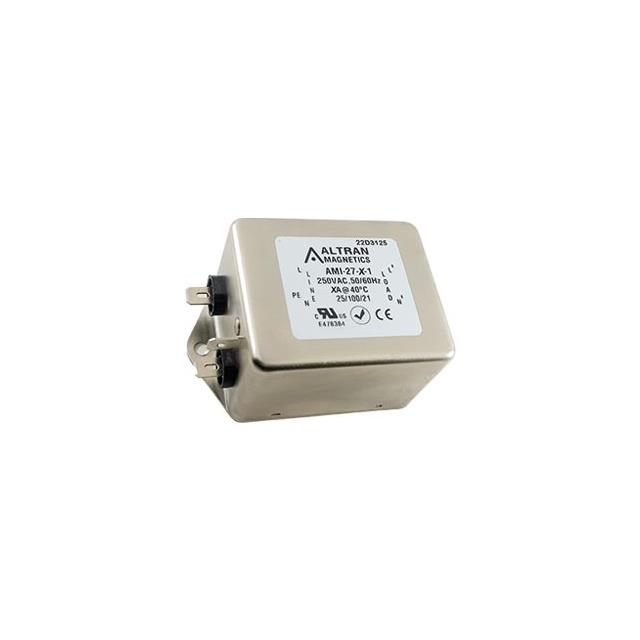

AMI-27B Series

Catalog

DUAL-STAGE PERFORMANCE EMI FILTER

Part	Configuration	Current	Mounting Type	Termination Style	Applications	Approval Agency	Filter Type	Frequency - Operating	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated AC	Inductance
Altran Magnetics, LLC AMI-27B-12-1	Two Stage	12 A	Chassis Mount	Quick Connect	Medical	CE cURus	Single Phase	DC ~ 400Hz	100 °C	-25 °C	250 V	6.5 mH
Altran Magnetics, LLC AMI-27B-10-3	Two Stage	10 A	Chassis Mount	Quick Connect	Medical	CE cURus	Single Phase	DC ~ 400Hz	100 °C	-25 °C	250 V	9 mH
Altran Magnetics, LLC AMI-27B-16-1	Two Stage	16 A	Chassis Mount		Medical	CE cURus	Single Phase	DC ~ 400Hz	100 °C	-25 °C	250 V	5.6 mH
Altran Magnetics, LLC AMI-27B-36-6	Two Stage	36 A	Chassis Mount	Threaded Post (M4)	Medical	CE cURus	Single Phase	DC ~ 400Hz	100 °C	-25 °C	250 V
Altran Magnetics, LLC AMI-27B-10-1	Two Stage	10 A	Chassis Mount	Quick Connect	Medical	CE cURus	Single Phase	DC ~ 400Hz	100 °C	-25 °C	250 V	9 mH
Altran Magnetics, LLC AMI-27B-12-3	Two Stage	12 A	Chassis Mount	Quick Connect	Medical	CE cURus	Single Phase	DC ~ 400Hz	100 °C	-25 °C	250 V	6.5 mH
Altran Magnetics, LLC AMI-27B-25-6	Two Stage	25 A	Chassis Mount	Threaded Post (M4)	Medical	CE cURus	Single Phase	DC ~ 400Hz	100 °C	-25 °C	250 V	4 mH
Altran Magnetics, LLC AMI-27B-16-3	Two Stage	16 A	Chassis Mount		Medical	CE cURus	Single Phase	DC ~ 400Hz	100 °C	-25 °C	250 V	5.6 mH
