160078 Series

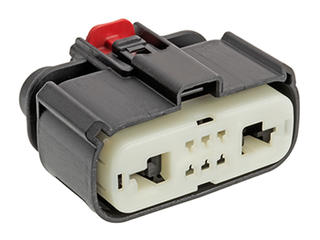

MX150 Hybrid Mat-Sealed Female Connector Assembly, Dual Row, 8 Circuits, Keying Option C, Dark Gray

Manufacturer: Molex

Catalog

MX150 Hybrid Mat-Sealed Female Connector Assembly, Dual Row, 8 Circuits, Keying Option C, Dark Gray

Part	Number of Rows	Contact Type	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Fastening Type	Contact Termination	Color	Insulation Material	Features	Pitch [x]	Pitch [x]	Row Spacing [Max]	Row Spacing [Max]
Molex 1600783026	2	Female Socket	Free Hanging (In-Line)	8	125 °C	-40 °C	Receptacle	Latch Holder	Crimp	Gray	Polyamide (PA66) Nylon 6/6 Glass Filled
Molex 1600783016	2	Female Socket	Free Hanging (In-Line)	8	125 °C	-40 °C	Receptacle	Latch Holder	Crimp	Black	Polyamide (PA6) Nylon 6 Glass Filled	Connector Position Assurance (CPA) Sealed	3.5 mm	0.138 in
Molex 1600783002	2	Female Socket	Free Hanging (In-Line)	8	125 °C	-40 °C	Receptacle	Latch Holder	Crimp	Gray	Polyamide (PA66) Nylon 6/6 Glass Filled	Sealed	3.5 mm	0.138 in	0.236 in	6 mm
Molex 1600783017	2	Female Socket	Free Hanging (In-Line)	8	125 °C	-40 °C	Receptacle	Latch Holder	Crimp	Gray	Polyamide (PA6) Nylon 6 Glass Filled	Connector Position Assurance (CPA) Sealed	3.5 mm	0.138 in

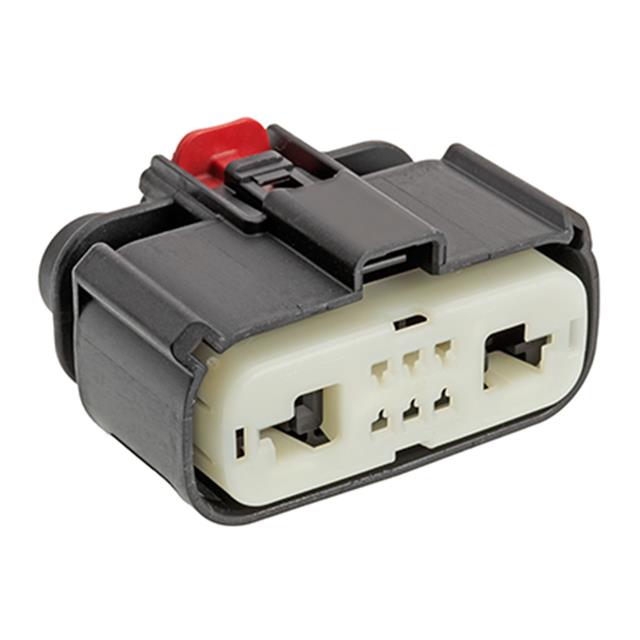

Molex 1600783001	2	Female Socket	Free Hanging (In-Line)	8	125 °C	-40 °C	Receptacle	Latch Holder	Crimp	Black	Polyamide (PA6) Nylon 6 Glass Filled	Sealed	3.5 mm	0.138 in
Molex 1600783023	2	Female Socket	Free Hanging (In-Line)	8	125 °C	-40 °C	Receptacle	Latch Holder	Crimp	Black	Polyamide (PA6) Nylon 6 Glass Filled	Connector Position Assurance (CPA) Sealed	3.5 mm	0.138 in
Molex 1600783025	2	Female Socket	Free Hanging (In-Line)	8	125 °C	-40 °C	Receptacle	Latch Holder	Crimp	Black	Polyamide (PA66) Nylon 6/6 Glass Filled	Connector Position Assurance (CPA)
Molex 1600783009
Molex 1600783027	2	Female Socket	Free Hanging (In-Line)	8	125 °C	-40 °C	Receptacle	Latch Holder	Crimp	Black	Polyamide (PA6) Nylon 6 Glass Filled	Connector Position Assurance (CPA) Sealed	3.5 mm	0.138 in
Molex 1600783028	2	Female Socket	Free Hanging (In-Line)	8	125 °C	-40 °C	Receptacle	Latch Holder	Crimp	Black	Polyamide (PA6) Nylon 6 Glass Filled	Connector Position Assurance (CPA) Sealed	3.5 mm	0.138 in

Catalog

MX150 Hybrid Mat-Sealed Female Connector Assembly, Dual Row, 8 Circuits, Keying Option C, Dark Gray
