79208 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

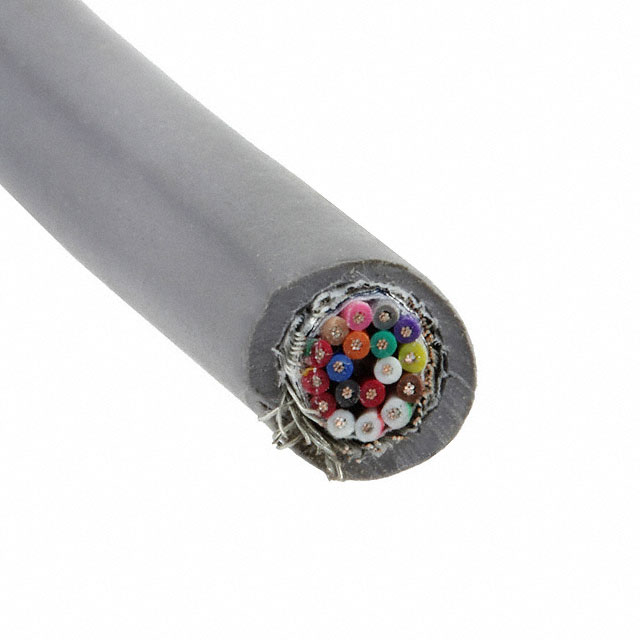

CABLE 18COND 20AWG SHLD
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Ratings | Voltage | Conductor Material | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Conductor Insulation | Length | Length | Cable Type | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 70 % 100 % | 10 | 30 AWG | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | 9.7 mm | 0.382 in | 0.035 in | 0.889 mm | 20 AWG | ISO 10993 | 600 V | Copper Tinned | Slate | -40 C | 105 ░C | 18 | Polyphenylene Ether Modified (mPPE) | 304.8 m | 1000 ft | Multi-Conductor | Braid Foil |
ALPHA WIRE | 10 | 30 AWG | Biological Compatibility | Polyphenylene Ether Modified (mPPE) | 9.7 mm | 0.382 in | 0.035 in | 0.889 mm | 20 AWG | ISO 10993 | 600 V | Copper Tinned | Slate | -40 C | 105 ░C | 18 | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | Braid Foil |
