2106-1521 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

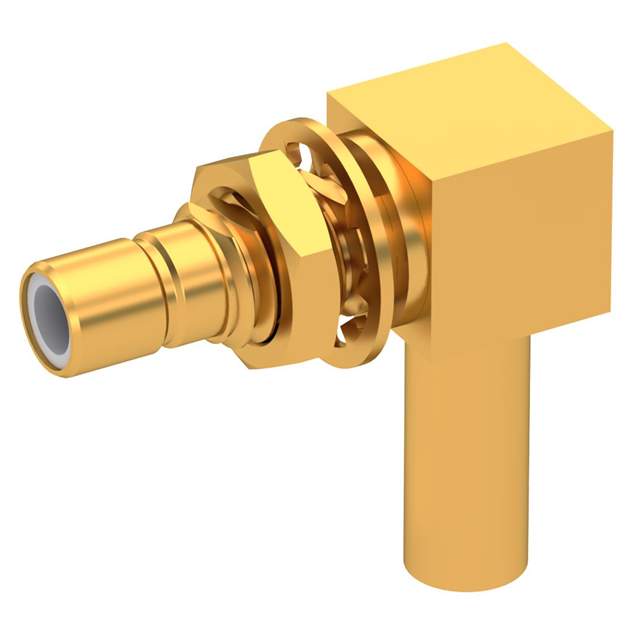

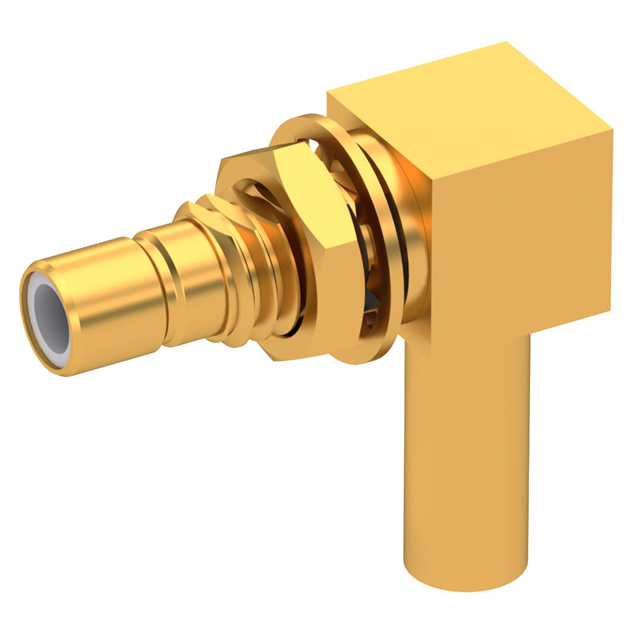

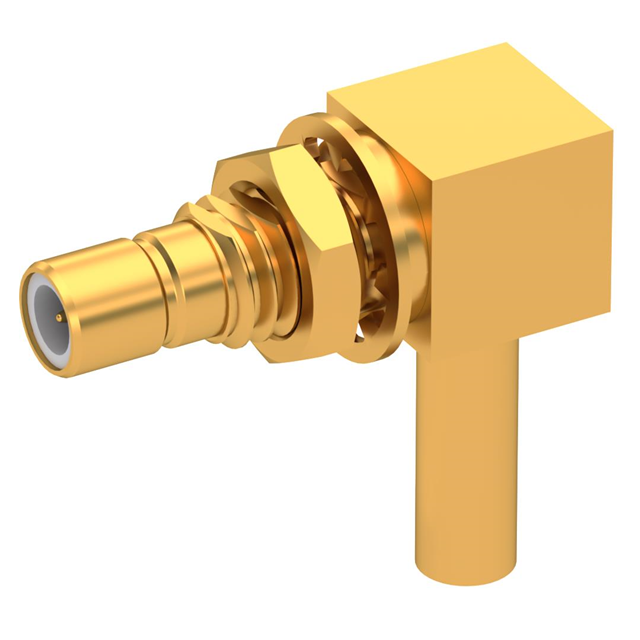

SMB / RIGHT ANGLE JACK MALE CRIM
| Part | Voltage Rating | Body Material | Body Finish | Mating Cycles | Insertion Loss | Dielectric Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Cable Group | Mounting Feature | Impedance | Shield Termination | Center Contact Material | Frequency - Max [Max] | Contact Termination | Number of Ports | Mounting Type | Connector Type | Connector Style | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 335 V | Brass | Gold | 500 | 0.6 dB | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Snap-On | RG-316 Double Braid | Bulkhead - Front Side Nut | 50 Ohms | Crimp | Brass | 4 GHz | Crimp | 1 | Panel Mount Right Angle | Jack Male Pin | SMB | Gold | |
 Radiall USA, Inc. | 250 V | Brass | Gold | 500 | 0.6 dB | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Snap-On | RG-178 | Bulkhead - Front Side Nut | 50 Ohms | Crimp | Brass | 4 GHz | Crimp | 1 | Panel Mount Right Angle | Jack Male Pin | SMB | Gold | 196 |
 Radiall USA, Inc. | 335 V | Brass | Gold | 500 | 0.6 dB | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Snap-On | 188 316 RG-174 | Bulkhead - Front Side Nut | 50 Ohms | Crimp | Brass | 4 GHz | Crimp | 1 | Panel Mount Right Angle | Jack Male Pin | SMB | Gold |
