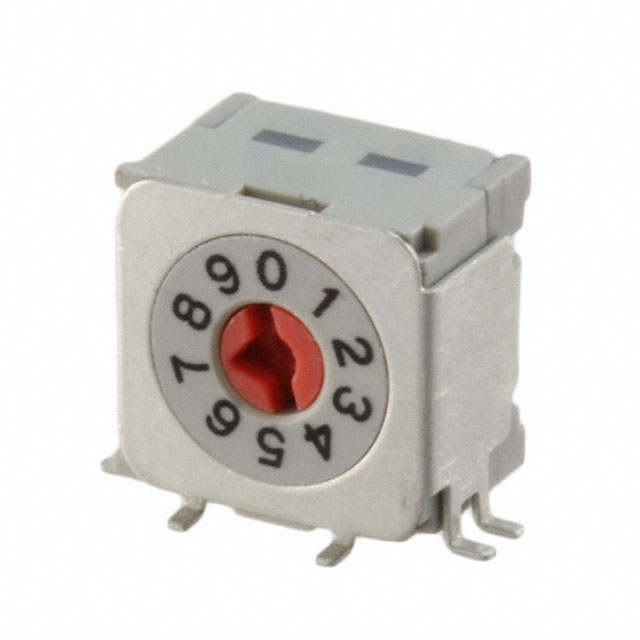

ND3FC10 Series

Catalog

SW ROTARY DIP BCD COMP 0.1A 5V

Part	Mechanical Life	Body Material	Electrical Life	Length [x]	Length [x]	Washable	Actuator Level	Pitch	Pitch	Current Rating (Amps)	Actuator Type	Features	Height Above Board [z]	Height Above Board [z]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Contact Finish	Contact Material	Termination Style	Mounting Type
NKK Switches ND3FC10P-R	20000 Cycles	Polyamide (PA) Nylon Glass Filled	20000 Steps	0.32 in	8.13 mm		Flush Recessed	2.54 mm	0.1 "	100 mA	Rotary for Tool	Epoxy Sealed Terminals	0.22 in	5.59 mm	BCD Complement	85 °C	-25 °C	10	5 V	Gold	Beryllium Copper	Gull Wing	Surface Mount
