38.51.7 Series

Catalog

RELAY GEN PURPOSE SPDT 6A 60V

Part	Coil Resistance	Termination Style	Features	Operate Time	Approval Agency	Contact Material	Coil Type	Mounting Type	Switching Voltage [Max]	Coil Current	Load - Max Switching	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Contact Form	Relay Type	Coil Voltage	Release Time	Must Operate Voltage	Must Release Voltage
Finder Relays, Inc. 38.51.7.060.0050	8.6 kOhms	Screw Terminal	Socket Included	5 ms	CE CSA cURus EAC RINA UKCA	Silver Nickel (AgNi)	Non Latching	DIN Rail	400 VAC	7 mA	2400 VA	70 °C	-40 C	6 A	SPDT (1 Form C)	General Purpose	60 VDC	6 ms	48 VDC	6 VDC

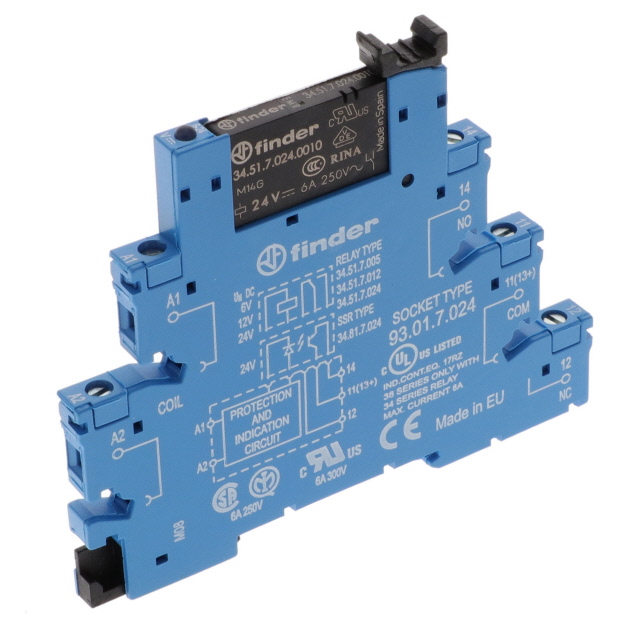

Finder Relays, Inc. 38.51.7.024.0050	2.31 kOhms	Screw Terminal	Socket Included	5 ms	CE CSA cURus EAC RINA UKCA	Silver Nickel (AgNi)	Non Latching	DIN Rail	400 VAC	10.4 mA	2400 VA	70 °C	-40 C	6 A	SPDT (1 Form C)	General Purpose	24 VDC	6 ms	19.2 VDC	2.4 VDC
Finder Relays, Inc. 38.51.7.012.5050	789.5 Ohms	Screw Terminal	Socket Included	5 ms	CE CSA cURus EAC RINA UKCA	Gold (Au) Silver Nickel (AgNi)	Non Latching	DIN Rail	400 VAC	15.2 mA	2400 VA	70 °C	-40 C	6 A	SPDT (1 Form C)	General Purpose	12 VDC	6 ms	9.6 VDC	1.2 VDC
Finder Relays, Inc. 38.51.7.006.0050	171.4 Ohms	Screw Terminal	Socket Included	5 ms	CE CSA cURus EAC RINA UKCA	Silver Nickel (AgNi)	Non Latching	DIN Rail	400 VAC	35 mA	2400 VA	70 °C	-40 C	6 A	SPDT (1 Form C)	General Purpose		6 ms	4.8 VDC	0.6 VDC

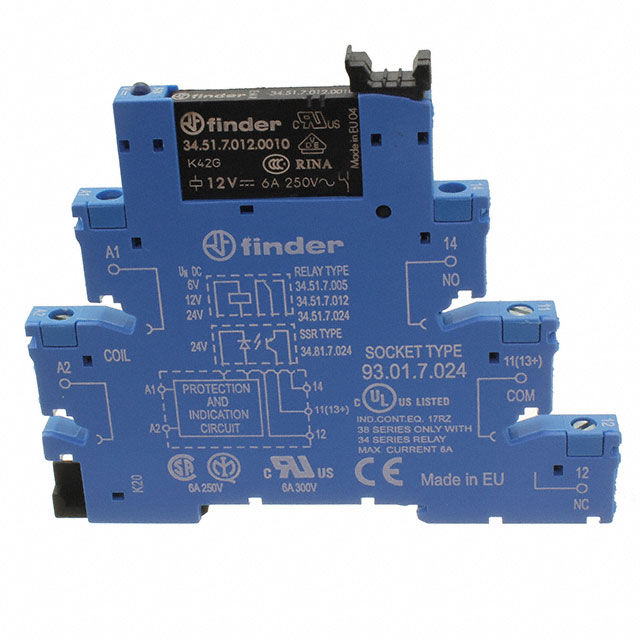

Finder Relays, Inc. 38.51.7.012.0050	789.5 Ohms	Screw Terminal	Socket Included	5 ms	CE CSA cURus EAC RINA UKCA	Silver Nickel (AgNi)	Non Latching	DIN Rail	400 VAC	15.2 mA	2400 VA	70 °C	-40 C	6 A	SPDT (1 Form C)	General Purpose	12 VDC	6 ms	9.6 VDC	1.2 VDC
