833-076 Series
Manufacturer: EDAC Inc.
Beta
⌘K

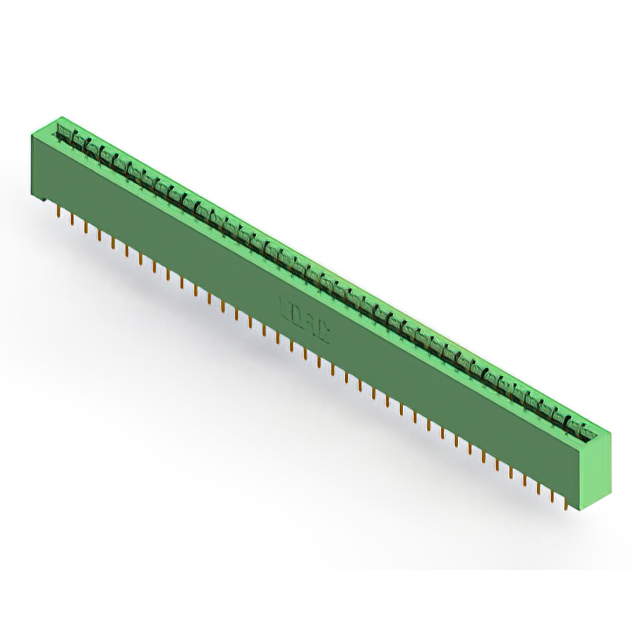

CONN EDGE DUAL FMALE 76POS 0.156
| Part | Termination Rows [custom] | Material - Insulation | Read Out | Color | Gender | Number of Rows [custom] | Card Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Number of Positions/Bay/Row [custom] | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Termination | Pitch | Pitch | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 3.25 mm | 0.128 " | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.96 mm | 0.156 in | Right Angle Through Hole | Gold | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 3.96 mm | 0.156 " | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 3.96 mm | 0.156 in | Through Hole | Gold | 0.25 Ám | 10 Áin | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 3.96 mm | 0.156 in | Through Hole | Gold | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.96 mm | 0.156 in | Right Angle Through Hole | Gold | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 3.96 mm | 0.156 in | Through Hole | Gold | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 2.95 mm | 0.116 " | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.96 mm | 0.156 in | Through Hole | Gold | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 2.95 mm | 0.116 " | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.96 mm | 0.156 in | Board Edge Straddle Mount | Gold | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | Card Extender |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.96 mm | 0.156 in | Board Edge Straddle Mount | Gold | 0.25 Ám | 10 Áin | Card Extender | |||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 3.96 mm | 0.156 " | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 3.96 mm | 0.156 in | Through Hole | Gold | 0.25 Ám | 10 Áin | Flush Mount Top Opening Unthreaded | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Dual | Green | Female | 2 | Non Specified - Dual Edge | 125 °C | -40 C | Copper Alloy | 38 | Cantilever | 76 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 3.96 mm | 0.156 in | Through Hole | Gold | 0.25 Ám | 10 Áin |
