FXG Series

Manufacturer: OptiFuse

Catalog

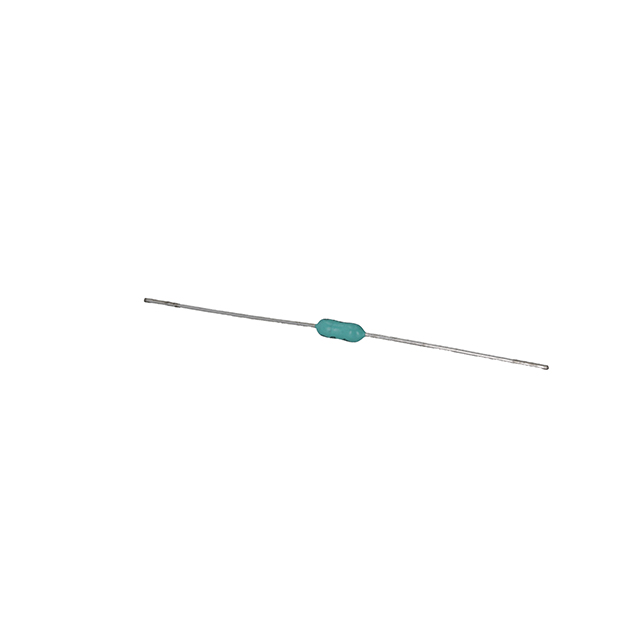

FUSE BOARD MNT 1.5A 250VAC AXIAL

Part	Approval Agency	Current Rating (Amps)	Package / Case	Voltage Rating - AC	Melting I²t	Mounting Type	Response Time	Breaking Capacity @ Rated Voltage	Fuse Type	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC
OptiFuse FXG-1.5A	UL 248	1.5 A	Axial	250 V	0.5409	Through Hole	Fast Blow	50 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C
OptiFuse FXG-15A	UL 248	15 A	Axial	72 V	68.28	Through Hole	Fast Blow	30 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C
OptiFuse FXG-7A	UL 248	7 A	Axial	250 V	10.18	Through Hole	Fast Blow	30 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C
OptiFuse FXG-2A	UL 248	2 A	Axial	250 V	1.038	Through Hole	Fast Blow	50 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C
OptiFuse FXG-200MA	UL 248	0.2 A	Axial	250 V	0.002719	Through Hole	Fast Blow	30 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C
OptiFuse FXG-500MA	UL 248	0.5 A	Axial	250 V	0.03792	Through Hole	Fast Blow	50 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C
OptiFuse FXG-20A	UL 248	20 A	Axial	60 V	147.1	Through Hole	Fast Blow	50 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C	60 VDC
OptiFuse FXG-2.5A	UL 248	2.5 A	Axial	250 V	1.899	Through Hole	Fast Blow	50 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C
OptiFuse FXG-8A	UL 248	8 A	Axial	250 V	16.21 I²t	Through Hole	Fast Blow	30 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C
OptiFuse FXG-6.3A	UL 248	6.3 A	Axial	250 V	8.075 I²t	Through Hole	Fast Blow	30 A	Board Mount (Cartridge Style Excluded)	7.37 mm	2.8 mm	0.29 in	0.11 in	-55 C	125 °C
