9463F Series
Manufacturer: Belden Inc.
Beta
⌘K

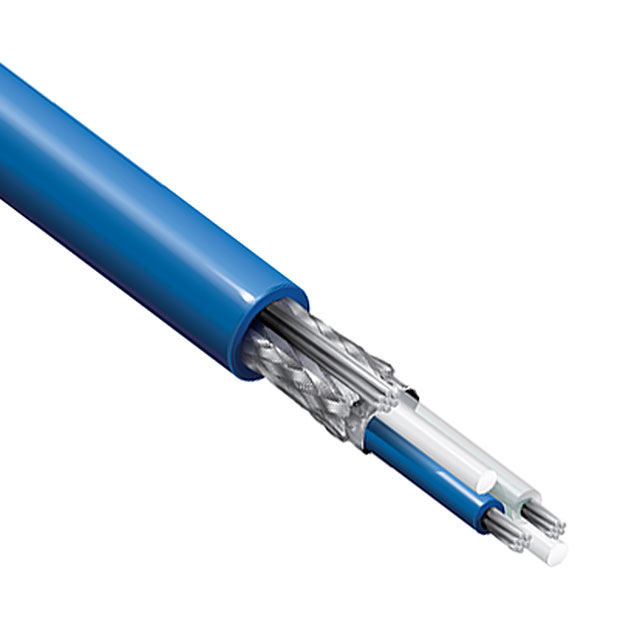

CABLE TWINAXIAL 20AWG
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shield Material | Conductor Material | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Dielectric Material | Jacket Color | Conductor Strand | Impedance | Cable Type | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Length [x] | Length [x] | Jacket (Insulation) Material | Shield Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 °C | -40 C | Aluminum Copper Tinned | Copper Tinned | 66 | 1.91 mm | 0.075 in | 85 % 100 % | Fluorinated Ethylene Propylene (FEP) | Blue | 36 AWG 42 Strands | 120 Ohms | Twinaxial | Oil Resistant UV Resistant | 0.243 in | 6.17 mm | 20 AWG | 304.8 m | 1000 ft | Fluorinated Ethylene-Propylene (FEP) | Braid Foil |
