001097 Series

Headers & Wire Housings CGrid VT Bkwy Hdr 15 SAu 1

Manufacturer: Molex

Catalog

Headers & Wire Housings CGrid VT Bkwy Hdr 15 SAu 1

Catalog

Headers & Wire Housings CGrid VT Bkwy Hdr 15 SAu 1

Part	Applications	Contact Finish - Post	Connector Type	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Height [z]	Insulation Height [z]	Contact Shape	Contact Length - Post [custom]	Contact Length - Post	Material Flammability Rating	Style	Contact Type	Mounting Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Termination	Contact Length - Mating	Contact Length - Mating	Shrouding	Overall Contact Length	Overall Contact Length	Number of Positions	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions [custom]
Molex 0010977245	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	150 Áin	3.81 Ám	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in	24	Push-Pull

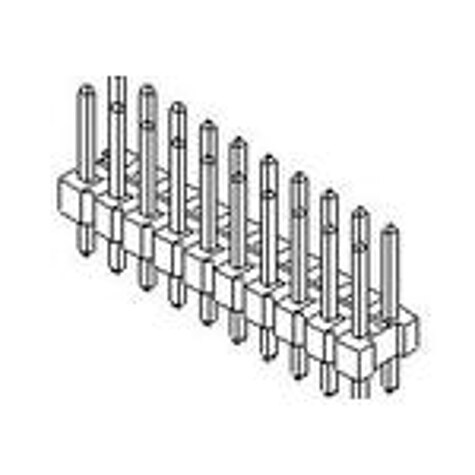

Molex 0010977046	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	15 µin	0.38 µm	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in	4	Push-Pull	1.9 Ám	74.8 Áin	Gold

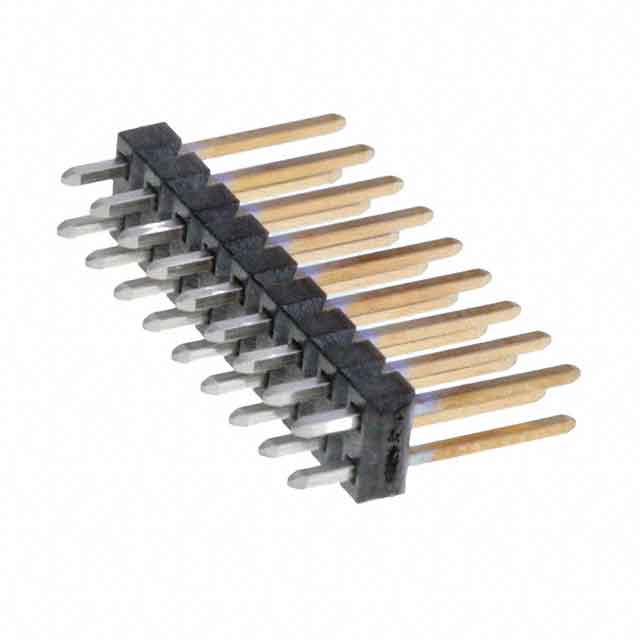

Molex 0010977186	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	15 Áin 15 µin	0.38 µm	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in	18	Push-Pull	1.9 Ám	74.8 Áin	Gold
Molex 0010977106	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	15 µin	0.38 µm	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in	10	Push-Pull	1.9 Ám	74.8 Áin	Gold
Molex 0010977125	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	150 Áin	3.81 Ám	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in	12	Push-Pull
Molex 0010977145	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	150 Áin	3.81 Ám	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in	14	Push-Pull
Molex 0010977345	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	150 Áin	3.81 Ám	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in		Push-Pull				34
Molex 0010977806	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	15 µin	0.38 µm	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in	80	Push-Pull	1.9 Ám	74.8 Áin	Gold
Molex 0010977166	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	15 µin	0.38 µm	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in	16	Push-Pull	1.9 Ám	74.8 Áin	Gold
Molex 0010977366	Automotive General Purpose Lighting Medical Telecommunications	Tin	Header Breakaway	Black	0.1 "	2.54 mm	15 µin	0.38 µm	All	0.09 in	2.29 mm	Square	0.11 in	2.79 mm	UL94 V-0	Board to Board Cable	Male Pin	Through Hole	Copper Alloy	0.1 in	2.54 mm	2	Solder	0.32 in	8.13 mm	Unshrouded	13.21 mm	0.52 in	36	Push-Pull	1.9 Ám	74.8 Áin	Gold
