M83513/21 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

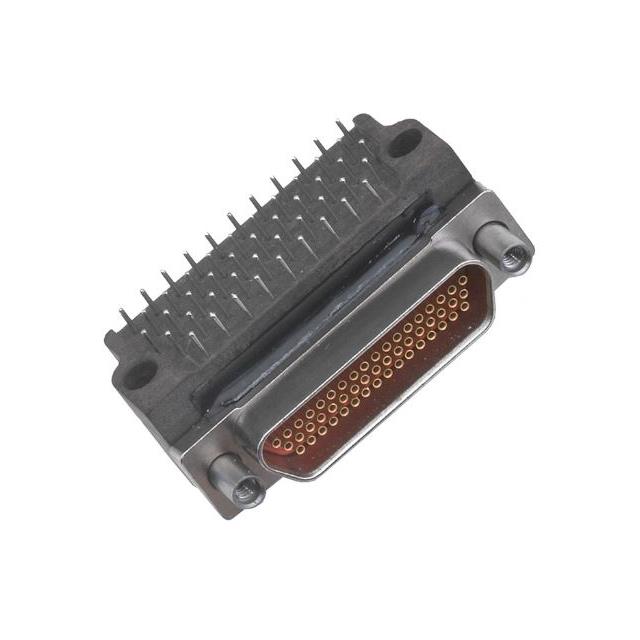

CONN MICRO-D RCPT 100P R/A SLDR
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Shell Material, Finish | Number of Positions | Termination | Connector Type | Current Rating (Amps) | Connector Style | Backset Spacing | Backset Spacing | Contact Finish | Mounting Type | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Polyester Glass Filled | Copper Alloy | -55 C | 125 °C | 4-40 Mating Side Female Screwlock | 0.05 | 0.05 | UL94 V-0 | 50 µin | 1.27 µm | Aluminum Alloy Yellow Chromate Plated Cadmium | 100 | Solder | Receptacle Female Sockets | 3 A | D-Type Micro-D | 9.52 mm | 0.375 in | Gold | Right Angle Through Hole | Signal |
