MS Series

Catalog

THERMOELECTRIC PELTIER MODULES THERMOELECTRIC COOLER, HIGH TEMP DIFFERENTIAL, METALLIZED HOT AND COLD SURFACE

Part	Qmax @ Th	Delta Tmax @ Th	Height [z]	Features	Number of Stages	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Operating Temperature	Number of Stages [custom]

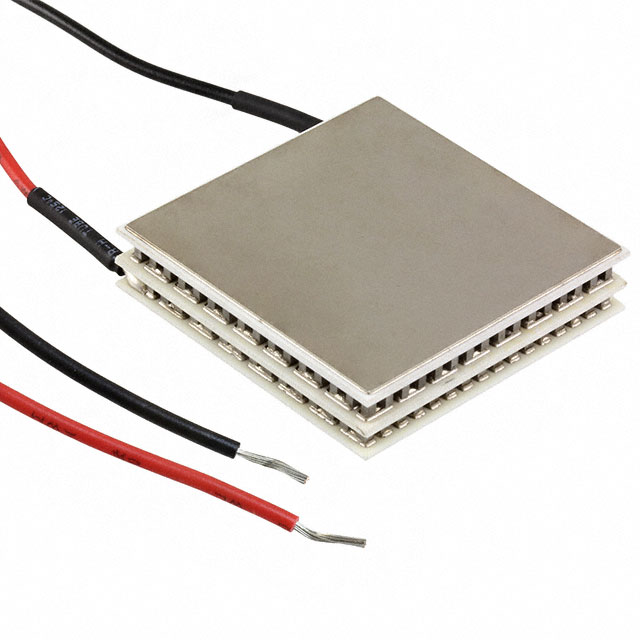

Laird Thermal Systems, Inc. 16505-304	16.4 W	87 °C	6.6 mm	Lead Wires Non-Sealed	2	2.8 A	30 mm	30 mm	15.6 V	80 °C
Laird Thermal Systems, Inc. 9350006-319	39.9 W	87 °C	8.1 mm	Lead Wires Non-Sealed	2	6.8 A	40 mm	40 mm	15.8 V	80 °C
Laird Thermal Systems, Inc. 9340006-301	2 W	123 °C	15.39 mm	Lead Wires Non-Sealed	5	1.6 A	30 mm	30 mm	14.5 V	80 °C

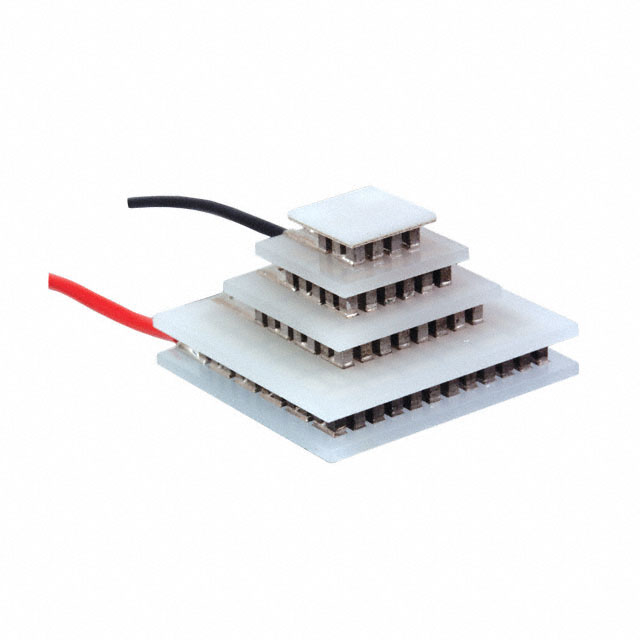

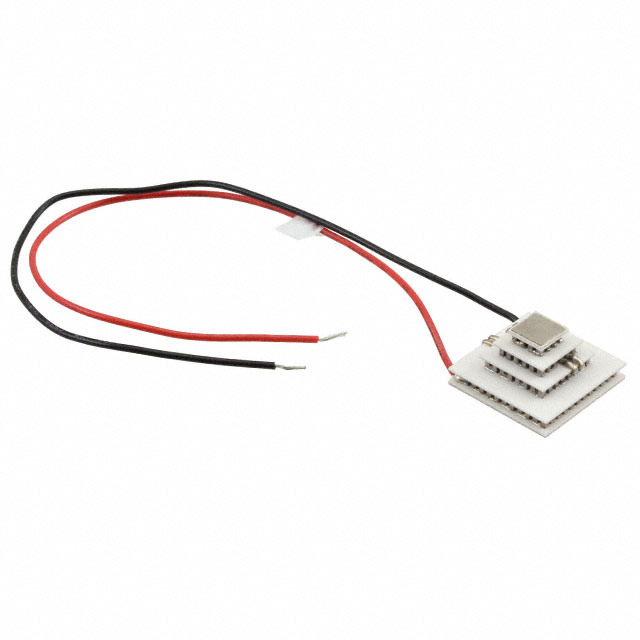

Laird Thermal Systems, Inc. 9340005-301	1.9 W	25 °C 115 °C	12.5 mm	Lead Wires Non-Sealed	4	1.8 A	23 mm	23 mm	8.3 V	80 °C
Laird Thermal Systems, Inc. 9360002-307	15.3 W	100 °C	13.11 mm	Lead Wires Non-Sealed		8 A	44 mm	44 mm	8.3 V	80 °C	3
Laird Thermal Systems, Inc. 9340003-302	16.4 W	87 °C	6.5 mm	Lead Wires Sealed - Silicone RTV	2	2.9 A	30 mm	30 mm	15.6 V	80 °C
