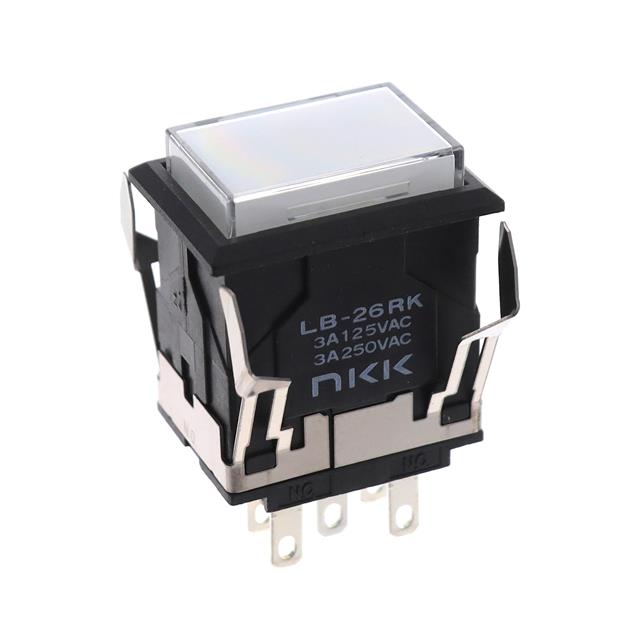

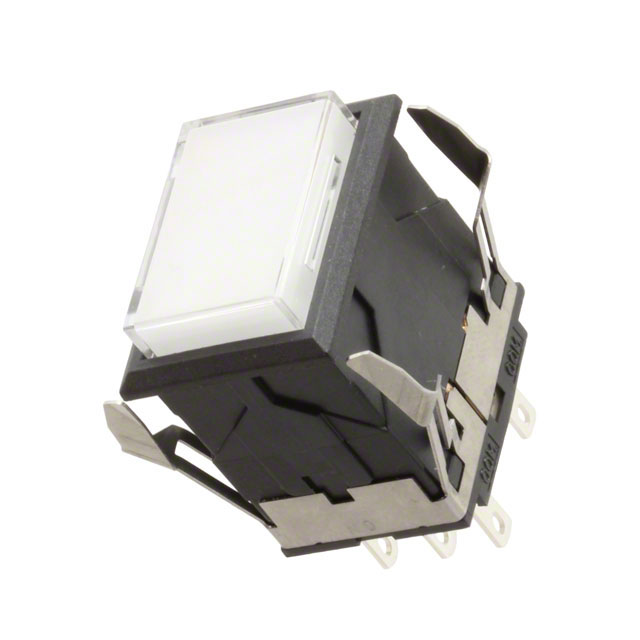

LB26RKW Series
Manufacturer: NKK Switches
Beta
⌘K
STANDARD SIZE PANEL SEAL PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Color - Actuator/Cap | Actuator Marking | Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Voltage Rating - AC | Voltage Rating - DC | Mounting Type | Termination Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Switch Function | Circuit | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 200000 Cycles | Black | No Marking | Standard | 3 A | -25 °C | 70 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | ||
 NKK Switches | 100000 Cycles | 200000 Cycles | Clear | Illuminated Standard | 3 A | -25 °C | 50 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | 12 VDC | Amber LED | |
 NKK Switches | 100000 Cycles | 200000 Cycles | Clear | No Marking | Illuminated Standard | 3 A | -25 °C | 50 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | 3.3 VDC | LED White |
NKK Switches | 100000 Cycles | 200000 Cycles | Clear | No Marking | Illuminated Standard | 3 A | -25 °C | 50 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | 24 V | LED Red |
NKK Switches | 100000 Cycles | 200000 Cycles | Clear | No Marking | Illuminated Standard | 3 A | -25 °C | 50 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | 1.9 VDC | LED Red |
 NKK Switches | 100000 Cycles | 200000 Cycles | Clear | No Marking | Illuminated Standard | 3 A | -25 °C | 50 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | 3.6 VDC | Blue LED |
NKK Switches | 100000 Cycles | 200000 Cycles | Clear | No Marking | Illuminated Standard | 3 A | -25 °C | 50 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | 5 VDC | Green LED |
NKK Switches | 100000 Cycles | 200000 Cycles | Clear | No Marking | Illuminated Standard | 3 A | -25 °C | 50 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | 24 V | Green LED |
 NKK Switches | 100000 Cycles | 200000 Cycles | Clear | No Marking | Illuminated Standard | 3 A | -25 °C | 50 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | 12 VDC | Amber LED |
NKK Switches | 100000 Cycles | 200000 Cycles | Clear | No Marking | Illuminated Standard | 3 A | -25 °C | 50 °C | Button Rectangular | 125 V | 30 V | Panel Mount Snap-In | Solder Quick Connect - 0.110" (2.8mm) | 16.2 mm | 22.4 mm | On-On | DPDT | 12 VDC | Green LED |
