RCBSR Series

Catalog

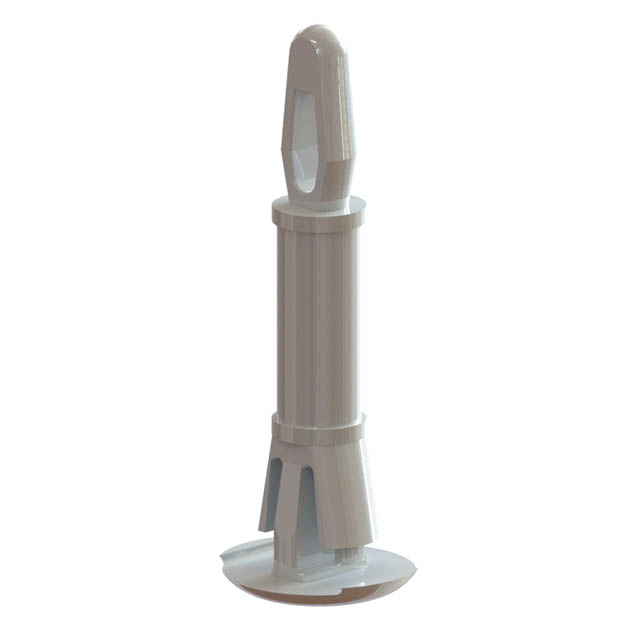

BRD SPT SNAP FIT/LOCK NYLON 3/8"

Part	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Material	Between Board Height	Between Board Height	Between Board Height	Holding Type	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Max]	Mounting Panel Thickness [Min]	Mounting Panel Thickness [Min]	Features	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type
Essentra Components RCBSR-6-01	0.125 in	0.125 in	3.18 mm	Nylon	0.375 in	9.53 mm	0.375 "	Snap Fit	0.839 in	21.3 mm	0.1875 in	0.187 in	4.75 mm	1.6 mm	0.063 in	0.059 "	1.5 mm	Locking Reverse Mounting	1.57 mm	0.062 in	0.0625 in	Snap Lock
Essentra Components RCBSR-4-01	0.125 in	0.125 in	3.18 mm	Nylon	6.35 mm	0.25 in		Snap Fit	0.717 "	18.2 mm	0.1875 in	0.187 in	4.75 mm	1.6 mm	0.063 in	0.059 "	1.5 mm	Locking Reverse Mounting	1.57 mm	0.062 in	0.0625 in	Snap Lock
Essentra Components RCBSR-8-01	0.125 in	0.125 in	3.18 mm	Nylon	0.5 in	12.7 mm	0.5 in	Snap Fit	0.965 in	24.51 mm	0.1875 in	0.187 in	4.75 mm	1.6 mm	0.063 in	0.059 "	1.5 mm	Locking Reverse Mounting	1.57 mm	0.062 in	0.0625 in	Snap Lock
Essentra Components RCBSR-7-01	0.125 in	0.125 in	3.18 mm	Nylon	0.438 in	11.13 mm	0.4375 "	Snap Fit	0.902 in	22.9 mm	0.1875 in	0.187 in	4.75 mm	1.6 mm	0.063 in	0.059 "	1.5 mm	Locking Reverse Mounting	1.57 mm	0.062 in	0.0625 in	Snap Lock
