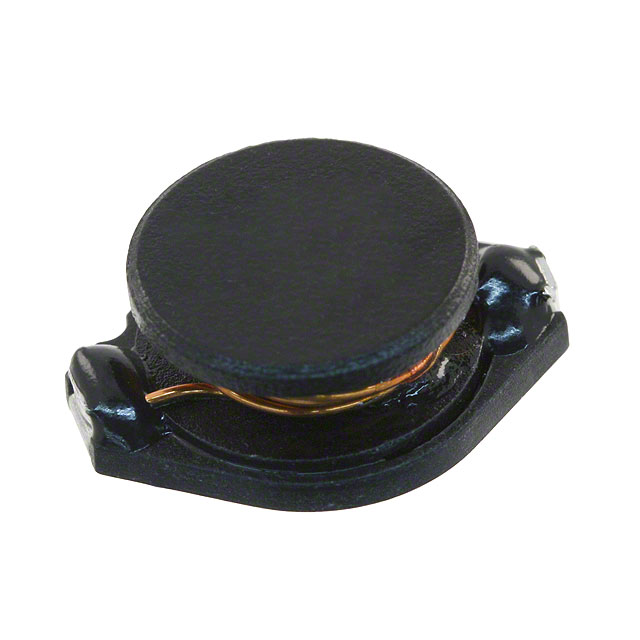

SDR1806 Series

Catalog

SURFACE MOUNT POWER INDUCTOR, SDR1806 SERIES, 330 H, 10%, UNSHIELDED, 0.58 OHM, 1 A ROHS COMPLIANT: YES

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Package / Case	Shielding	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Tolerance	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Q @ Freq	Inductance	Type	Material - Core	DC Resistance (DCR)	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)	Q @ Freq [custom]

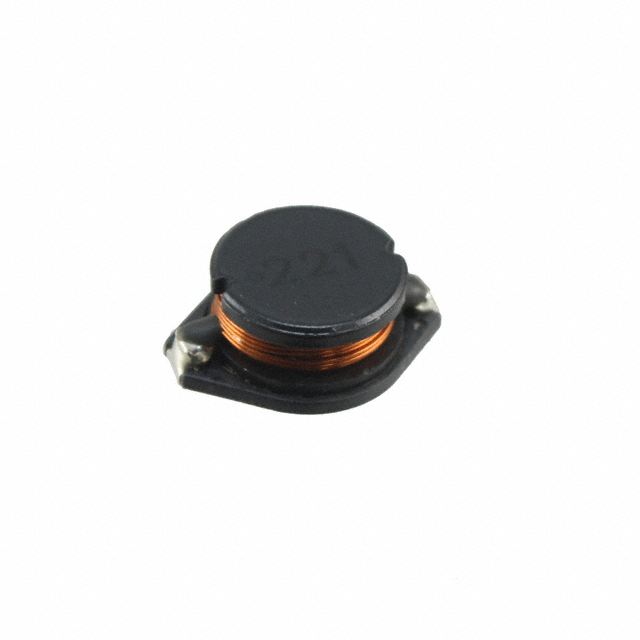

Bourns Inc. SDR1806-331KL	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz	580 mOhm	3.5 MHz	10 %	1.8 A	125 °C	-40 C	1 A	18 796 kHz	330 µH	Drum Core Wirewound	Ferrite
Bourns Inc. SDR1806-680ML	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz		8 MHz	20 %	3.8 A	125 °C	-40 C	2.1 A	22	68 µH	Drum Core Wirewound	Ferrite	130 mOhm
Bourns Inc. SDR1806-2R2ML	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz		55 MHz	20 %	22 A	125 °C	-40 C	9 A	7.96 MHz 22	2.2 µH	Drum Core Wirewound	Ferrite	6.8 mOhm
Bourns Inc. SDR1806-1R0ML	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz	4 mOhm	100 MHz	20 %	30 A	125 °C	-40 C	10 A	7.96 MHz 21	1 µH	Drum Core Wirewound	Ferrite
Bourns Inc. SDR1806-471KL	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz	820 mOhm	3 MHz	10 %		125 °C	-40 C	800 mA		470 µH	Drum Core Wirewound	Ferrite		15	796 kHz
Bourns Inc. SDR1806-470ML	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz		9 MHz	20 %	4.6 A	125 °C	-40 C	2.5 A	22	47 µH	Drum Core Wirewound	Ferrite				95 mOhm
Bourns Inc. SDR1806-150ML	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz	35 mOhm	17 MHz	20 %	8 A	125 °C	-40 C	4.3 A	2.52 MHz 20	15 µH	Drum Core Wirewound	Ferrite
Bourns Inc. SDR1806-151KL	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz	270 mOhm	5 MHz	10 %	2.6 A	125 °C	-40 C	1.4 A	23 796 kHz	150 µH	Drum Core Wirewound	Ferrite
Bourns Inc. SDR1806-8R2ML	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz	20 mOhm	27 MHz	20 %	9.4 A	125 °C	-40 C	7 A	7.96 MHz 22	8.2 µH	Drum Core Wirewound	Ferrite
Bourns Inc. SDR1806-221KL	0.272 "	6.9 mm	Surface Mount	Nonstandard	Unshielded	100 kHz		4.5 MHz	10 %	2.2 A	125 °C	-40 C	1.1 A		220 µH	Drum Core Wirewound	Ferrite	420 mOhm	20			796 kHz
