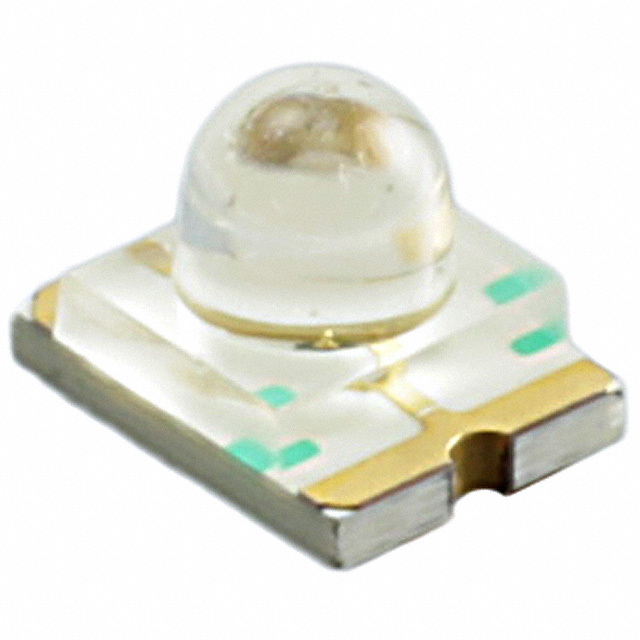

ASMT-BG20 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED GREEN CLEAR SMD
| Part | Package / Case | Package / Case | Voltage - Forward (Vf) (Typ) | Viewing Angle | Height (Max) [z] | Wavelength - Dominant | Millicandela Rating | Lens Size [diameter] | Color | Mounting Type | Configuration | Lens Transparency | Lens Style | Current - Test | Wavelength - Peak | Lens Color | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 3224 Metric | 1209 | 2 V | 15 ° | 2.4 mm | 569 nm | 650 mcd | 1.8 mm Dia | Green | Surface Mount | Standard | Clear | Round with Domed Top | 20 mA | 565 nm | Colorless | 3.2 mm | 2.4 mm |
