EYC25 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

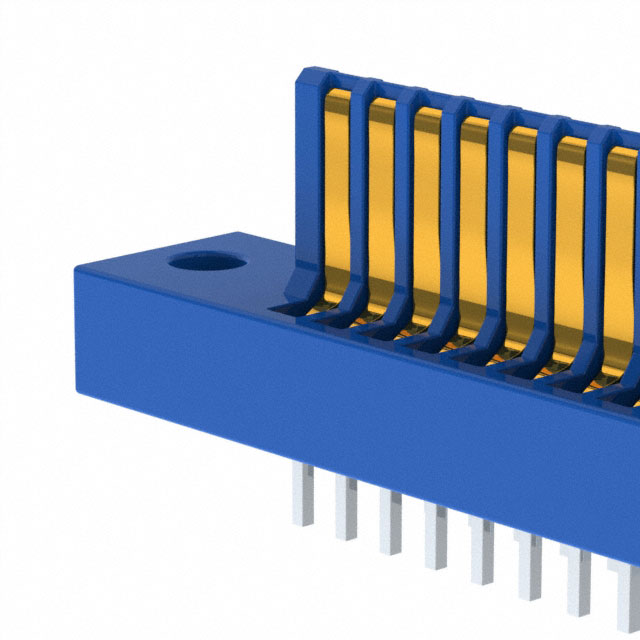

CONN EDGE DUAL FMALE 50POS 0.100
| Part | Contact Type | Material - Insulation | Number of Positions/Bay/Row [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Number of Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination | Number of Positions | Mounting Type | Pitch [x] | Pitch [x] | Contact Finish | Card Type | Card Thickness | Card Thickness | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | Loop Bellows | Polybutylene Terephthalate (PBT) | 25 | 125 °C | -65 ░C | Female | 2 | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Dual | 0.76 Ám | 30 Áin | Phosphor Bronze | Solder | 50 | Through Hole | 2.54 mm | 0.1 in | Gold | Non Specified - Dual Edge | 0.062 in | 1.57 mm | ||
 Sullins Connector Solutions | Polybutylene Terephthalate (PBT) | 25 | 125 °C | -65 ░C | Male | 2 | Flush Mount Top Opening Unthreaded | Dual | 0.76 Ám | 30 Áin | Phosphor Bronze | Solder | 50 | Through Hole | 2.54 mm | 0.1 in | Gold | Fits Female Edgecards | 0.062 in | 1.57 mm | 0.125 " | 3.18 mm |
