837-006 Series
Manufacturer: EDAC Inc.
Beta
⌘K

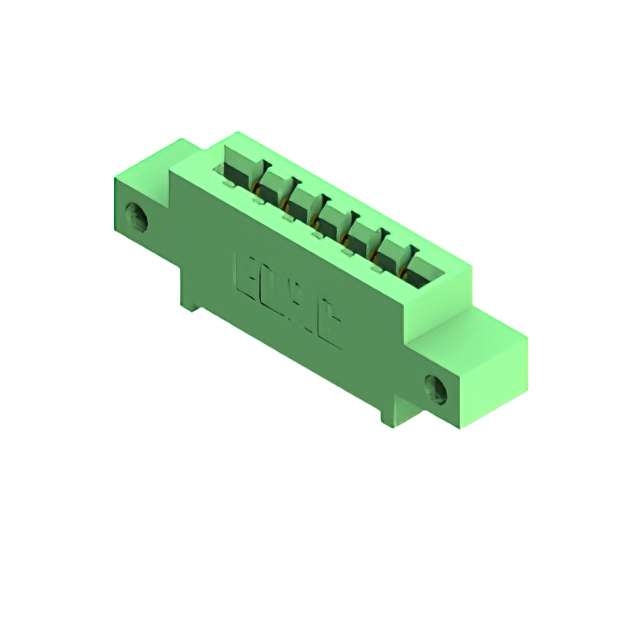

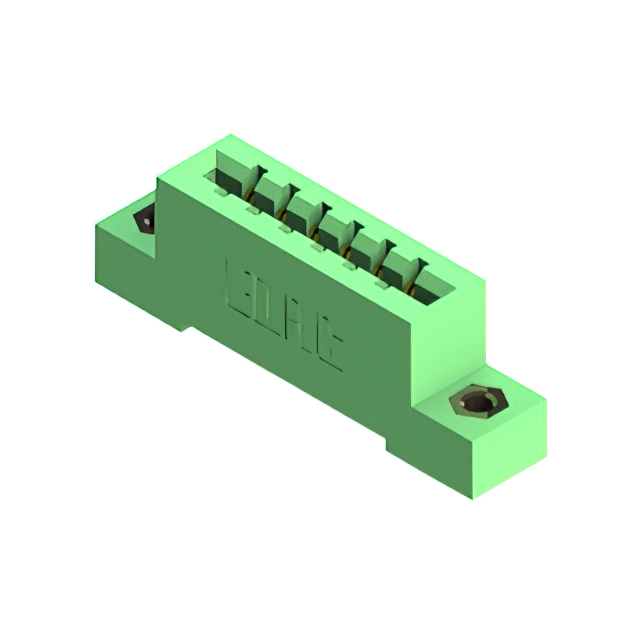

CONN EDGE SGL FMALE 6POS 0.156
| Part | Material - Insulation | Termination Rows | Number of Positions/Bay/Row | Read Out | Mounting Type | Card Type | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Gender | Termination | Number of Rows | Pitch | Pitch | Contact Type | Number of Positions | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Solder | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Solder | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Solder Eyelet(s) | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Wire Wrap | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Wire Wrap | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 " |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Solder | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Solder | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Wire Wrap | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Solder | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | Side Mount Opening Unthreaded | 3.25 mm | 0.128 " |
 EDAC Inc. | Diallyl Phthalate (DAP) | 1 | 6 | Single | Through Hole | Non Specified - Single Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.25 Ám | 10 Áin | Gold | 125 °C | -40 C | Copper Alloy | Female | Wire Wrap | 1 | 3.96 mm | 0.156 in | Cantilever | 6 | Flush Mount M3 Threaded Insert Top Opening |
