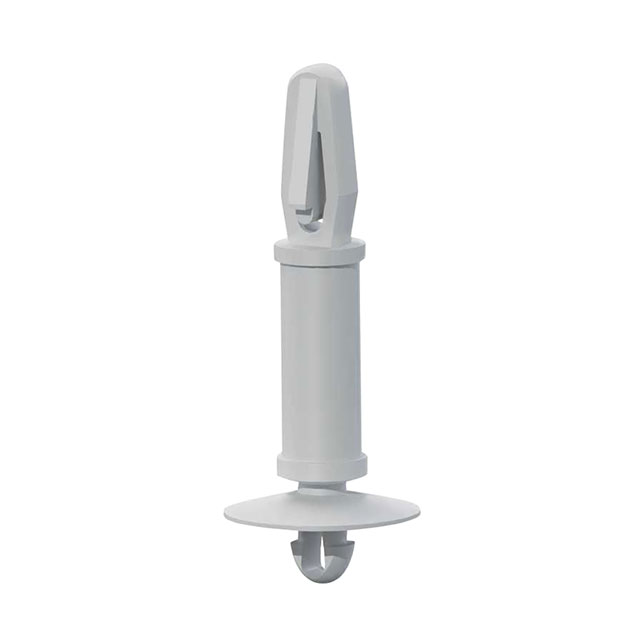

CLCBST Series

Catalog

CBS CUP-DUAL TEARDROP 1/8"

Part	Holding Type	Mounting Type	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Between Board Height	Between Board Height	Between Board Height	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Material	Mounting Panel Thickness	Mounting Panel Thickness	Mounting Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]
Essentra Components CLCBST-2-19	Snap Lock	Snap Lock	0.125 in	0.125 in	3.18 mm	0.125 in	0.125 in	3.18 mm	2.54 mm	0.1 in	Nylon
Essentra Components CLCBST-9-01	Snap Lock	Snap Lock				9 "	0.563 in	14.3 mm	2.54 mm	0.1 in	Nylon	0.062 "	0.0625 "	1.57 mm	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
Essentra Components CLCBST-7-01	Snap Lock	Snap Lock				0.4375 "	0.438 in	11.13 mm	2.54 mm	0.1 in	Nylon	0.062 "	0.0625 "	1.57 mm	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
Essentra Components CLCBST-8-01	Snap Lock	Snap Lock				0.5 in	0.5 in	12.7 mm	2.54 mm	0.1 in	Nylon	0.062 "	0.0625 "	1.57 mm	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
Essentra Components CLCBST-5-01	Snap Lock	Snap Lock				0.3125 in	0.313 in	7.95 mm	2.54 mm	0.1 in	Nylon	0.062 "	0.0625 "	1.57 mm	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
Essentra Components CLCBST-4-01	Snap Lock	Snap Lock					6.35 mm	0.25 in	2.54 mm	0.1 in	Nylon	0.062 "	0.0625 "	1.57 mm	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
Essentra Components CLCBST-10-01	Snap Lock	Snap Lock				5 8	0.625 in	15.88 mm	2.54 mm	0.1 in	Nylon	0.062 "	0.0625 "	1.57 mm	1.57 mm	0.062 in	0.0625 in	2.54 mm	0.1 in
