TJ04 Series

Catalog

TERM BLOCK PLUG 4POS STR 5MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Positions Per Level	Torque - Screw	Torque - Screw	Housing Material	Features	Voltage - UL	Voltage - IEC	Number of Levels	Contact Material	Pitch [x]	Pitch [x]	Number of Positions	Type	Material Flammability Rating	Mounting Type	Insulation Height	Insulation Height	Current - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Screw Size	Contact Mating Finish	Wire Strip Length [Min]	Wire Strip Length [Max]	Current - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛
Amphenol Anytek TJ0471020000G	-40 °C	115 °C	Screw	4	0.56 Nm	5 Lb-In	Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	300 V	300 V	1	Copper	5 mm	0.197 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.594 in	15.09 mm	20 A	24 AWG	12 AWG	Black	M3	Tin	7 mm	8 mm	20 A	0.34 mm²	2.5 mm²
Amphenol Anytek TJ0451830000G	-40 °C	115 °C	Screw	4	0.56 Nm	5 Lb-In	Thermoplastic		300 V	300 V	1	Copper	5.08 mm	0.2 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.594 in	15.09 mm	20 A	24 AWG	12 AWG	Gray	M3	Tin	7 mm	8 mm	20 A	0.34 mm²	2.5 mm²

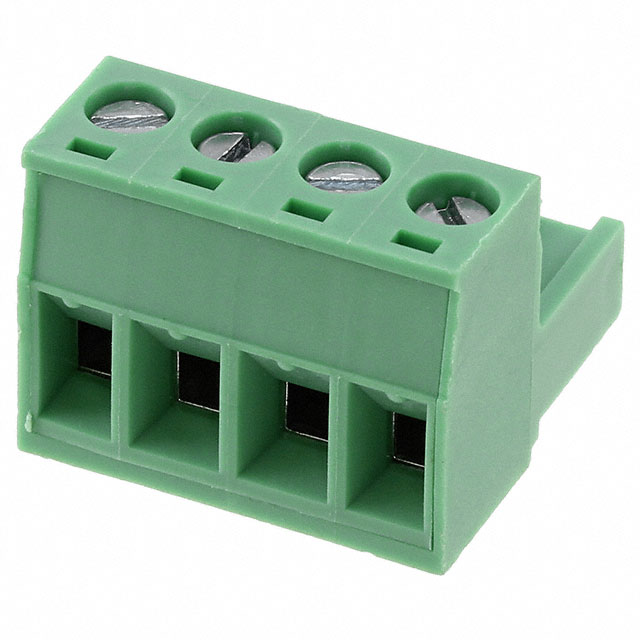

Amphenol Anytek TJ0471500000G	-40 °C	115 °C	Screw - Rising Cage Clamp	4	0.56 Nm	5 Lb-In	Thermoplastic Resin		300 V		1	Copper Alloy	5 mm	0.197 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.594 in	15.09 mm	12 A	24 AWG	12 AWG	Green	M3	Tin	7 mm	8 mm				1 mm˛	2.5 mm˛
Amphenol Anytek TJ0401520000G	-40 °C	115 °C	Screw	4	0.56 Nm	5 Lb-In	Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	300 V		1	Phosphor Bronze	7.62 mm	0.3 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.594 in	15.09 mm	20 A	24 AWG	12 AWG	Green	M3	Tin	7 mm	8 mm
Amphenol Anytek TJ0451060000G	-40 °C	115 °C	Screw	4	0.56 Nm	5 Lb-In	Thermoplastic		300 V		1	Copper	5.08 mm	0.2 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.594 in	15.09 mm	20 A	24 AWG	12 AWG	Black	M3	Tin	7 mm	8 mm
Amphenol Anytek TJ0401820000G	-40 °C	115 °C	Screw	4	0.56 Nm	5 Lb-In	Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	300 V		1	Phosphor Bronze	7.62 mm	0.3 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.594 in	15.09 mm	20 A	24 AWG	12 AWG	Gray	M3	Tin	7 mm	8 mm
Amphenol Anytek TJ0471820000G	-40 °C	115 °C	Screw	4	0.56 Nm	5 Lb-In	Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	300 V	300 V	1	Copper	5 mm	0.197 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.594 in	15.09 mm	20 A	24 AWG	12 AWG	Gray	M3	Tin	7 mm	8 mm	20 A	0.34 mm²	2.5 mm²
Amphenol Anytek TJ0401800000G	-40 °C	115 °C	Screw	4	0.56 Nm	5 Lb-In	Thermoplastic		300 V		1	Copper	7.62 mm	0.3 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.594 in	15.09 mm	20 A	24 AWG	12 AWG	Gray	M3	Tin	7 mm	8 mm
Amphenol Anytek TJ0471540000G	-40 °C	115 °C	Screw	4	0.56 Nm	5 Lb-In	Thermoplastic	Retention Latches (Non-Wire Side) Strain Relief	300 V	300 V	1	Copper	5 mm	0.197 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.634 in	16.1 mm	20 A	24 AWG	12 AWG	Green	M3	Tin	7 mm	8 mm	20 A	0.34 mm²	2.5 mm²

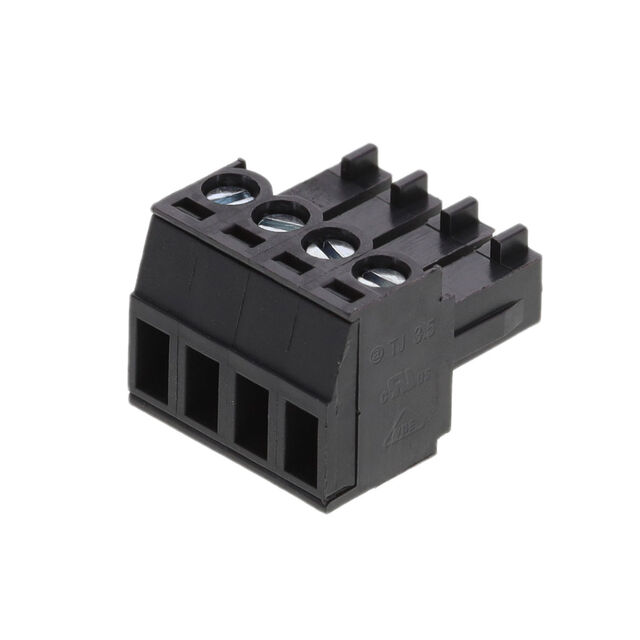

Amphenol Anytek TJ0411030000G	-40 °C	115 °C	Screw	4			Thermoplastic		300 V	300 V	1	Phosphor Bronze	3.5 mm	0.138 in	4	Plug Female Sockets	UL94 V-0	Free Hanging (In-Line)	0.437 in	11.1 mm	10 A	28 AWG	16 AWG	Black	M2	Tin	6 mm	7 mm	10.5 A					1.5 mm˛
