053649 Series

Manufacturer: Molex

Catalog

CONN PLUG 100POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Contact Finish	Pitch [x]	Pitch [x]	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Connector Type	Mounting Type	Number of Positions	Features

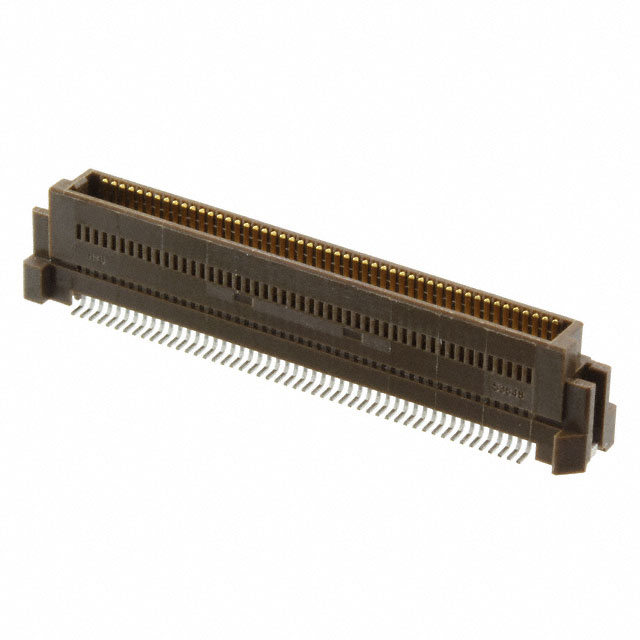

Molex 0536491074	8 mm	0.315 in	Gold	0.64 mm	0.025 in	14 mm 15 mm	10 Áin	0.25 Ám	2	Outer Shroud Contacts Plug	Surface Mount	100	Board Guide Solder Retention

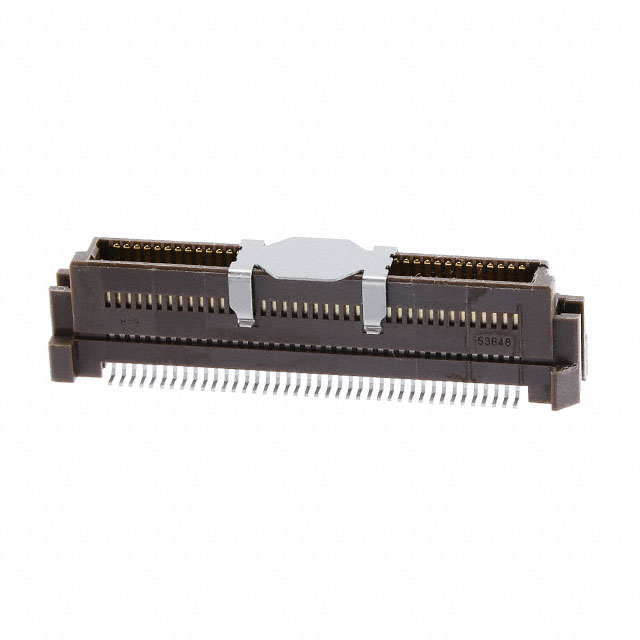

Molex 0536490874	8 mm	0.315 in	Gold	0.64 mm	0.025 in	14 mm 15 mm	10 Áin	0.25 Ám	2	Outer Shroud Contacts Plug	Surface Mount	80	Board Guide Solder Retention

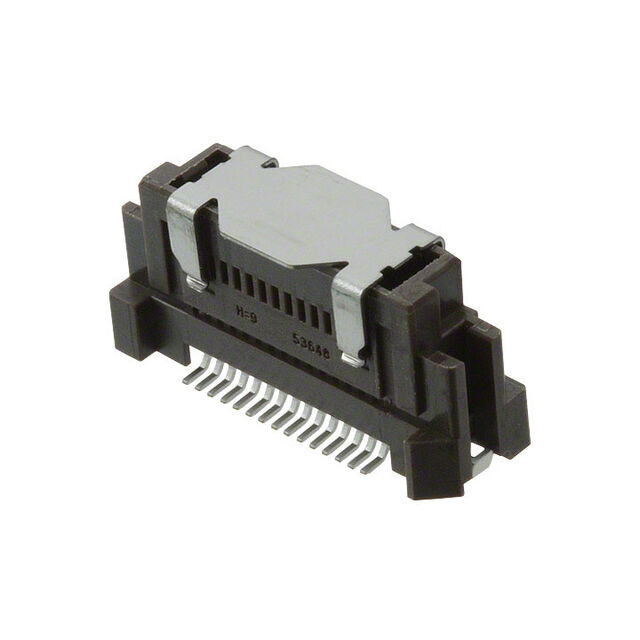

Molex 0536490374	8 mm	0.315 in	Gold	0.64 mm	0.025 in	14 mm 15 mm	10 Áin	0.25 Ám	2	Outer Shroud Contacts Plug	Surface Mount	30	Board Guide Solder Retention
