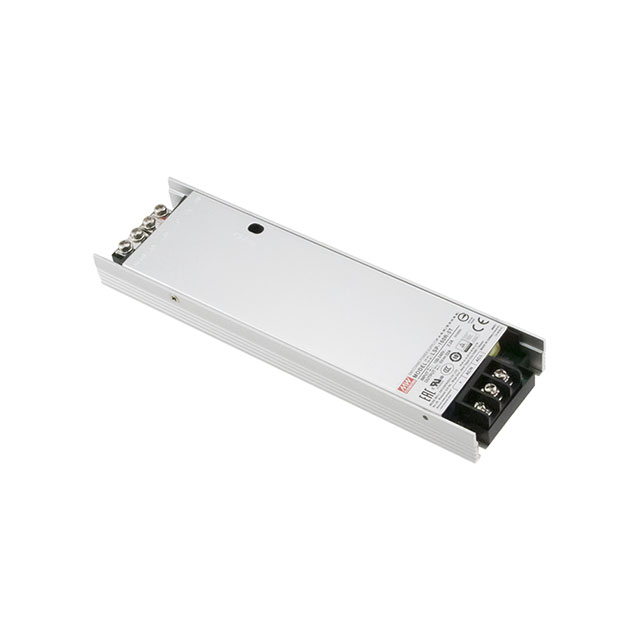

LSP-160 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 5V 160W
| Part | Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Outputs | Applications | Voltage - Isolation | Power (Watts) | Approval Agency | Features | Voltage - Output 1 | Current - Output 1 | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 160 W | CB CCC CE cURus EAC TUV | Adjustable Output DC Input Capable Load Sharing PFC | 5 V | 32 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC | ||
MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 162 W | CB CCC CE cURus EAC TUV | Adjustable Output PFC | 12 V | 13.5 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC | 92.5 % | |
MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 106 W | CB CCC CE cURus EAC TUV | Adjustable Output PFC | 3.3 V | 32 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC | 87.5 % | |
MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 134 W | CB CCC CE cURus EAC TUV | Adjustable Output DC Input Capable Load Sharing PFC | 4.2 V | 32 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC | 88.5 % | |
MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 163 W | CB CCC CE cURus EAC TUV | Adjustable Output PFC | 48 V | 3.4 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC | 93.5 % | |
MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 134 W | CB CCC CE cURus EAC TUV | Adjustable Output PFC | 4.2 V | 32 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC | 88.5 % | |
MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 162 W | CB CCC CE cURus EAC TUV | Adjustable Output PFC | 4.5 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC | 93.5 % | 36 V | |
MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 106 W | CB CCC CE cURus EAC TUV | Adjustable Output DC Input Capable Load Sharing PFC | 3.3 V | 32 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC | 87.5 % | |
MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 162 W | CB CCC CE cURus EAC TUV | Adjustable Output PFC | 24 V | 6.75 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC | 93.5 % | |
MEAN WELL USA Inc. | Enclosed | -30 °C | 70 °C | Chassis Mount | 1 | ITE (Commercial) | 3750 VDC | 160 W | CB CCC CE cURus EAC TUV | Adjustable Output PFC | 5 V | 32 A | 20 mm | 0.79 in | 55 mm | 194 mm | 2.17 " | 7.64 in | 264 VAC 370 VDC | 100 VAC 141 VDC |
