1337479 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

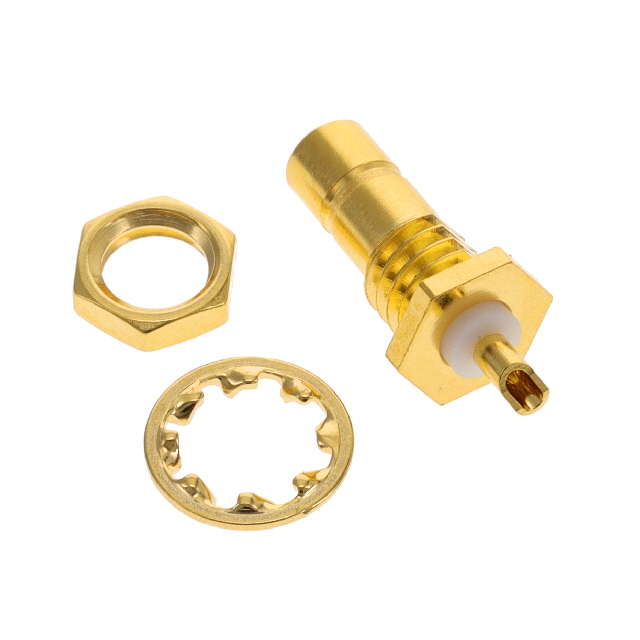

CONN SMB PLUG STR 50 OHM SOLDER
| Part | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Center Contact Plating | Includes | Voltage Rating | Body Finish | Insertion Loss | Fastening Type | Mounting Type | Connector Style | Number of Ports | Impedance | Connector Type | Contact Termination | Frequency - Max [Max] | Mounting Feature | Center Contact Material | Housing Color | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 500 | Gold | 1 Connector 1 Lockwasher 1 Nut | 250 V | Gold | 0.3 dB | Snap-On | Panel Mount | SMB | 1 | 50 Ohms | Jack Male Pin | Solder Cup | 4 GHz | Bulkhead - Front Side Nut | Brass | Gold | Solder |
