SSI-LXMP059 Series

Catalog

LED 2X5MM GREEN 6"LDS PANEL MNT

Part	Type	Lens Transparency	Lamp Color	Panel Cutout Shape	Viewing Angle	Millicandela Rating	Wavelength - Peak	Current	Voltage	Lens Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Lens Size [x]	Lens Size [y]	Lens Color
Lumex Opto/Components Inc. SSI-LXMP059GD-150	LED	Diffused	Green	Rectangle	110 °	10 mcd	565 nm	25 mA	2.2 V	Rectangle with Flat Top	4.57 mm	6.6 mm	0.18 in	0.26 in	4.2 mm	1.83 mm	Green
Lumex Opto/Components Inc. SSI-LXMP059USBD150	LED	Diffused	Blue	Rectangle	110 °	50 mcd	470 nm	20 mA	3.5 V	Rectangle with Flat Top	4.57 mm	6.6 mm	0.18 in	0.26 in	4.19 mm	1.83 mm	Blue

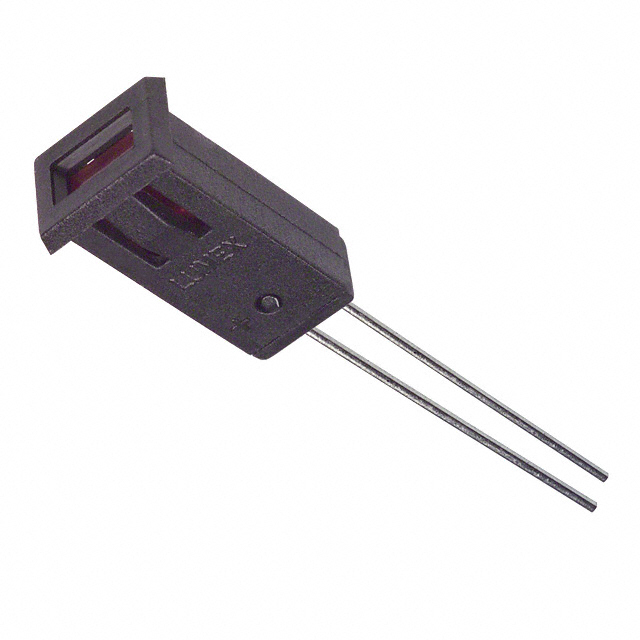

Lumex Opto/Components Inc. SSI-LXMP059SRD	LED	Diffused	Red	Rectangle	110 °	25 mcd	660 nm	30 mA	1.7 V	Rectangle with Flat Top	4.57 mm	6.6 mm	0.18 in	0.26 in	4.2 mm	1.83 mm	Red
Lumex Opto/Components Inc. SSI-LXMP059ID	LED	Diffused	Red	Rectangle	110 °	10 mcd	635 nm	30 mA	2 V	Rectangle with Flat Top	4.57 mm	6.6 mm	0.18 in	0.26 in	4.2 mm	1.83 mm	Red

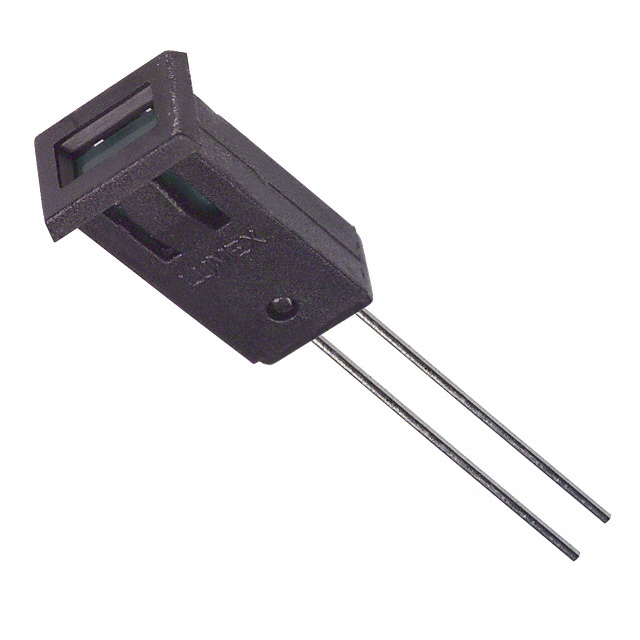

Lumex Opto/Components Inc. SSI-LXMP059GD	LED	Diffused	Green	Rectangle	110 °	10 mcd	565 nm	25 mA	2.2 V	Rectangle with Flat Top	4.57 mm	6.6 mm	0.18 in	0.26 in	4.2 mm	1.83 mm	Green
Lumex Opto/Components Inc. SSI-LXMP059ID-150	LED	Diffused	Red	Rectangle	110 °	10 mcd	635 nm	30 mA	2 V	Rectangle with Flat Top	4.57 mm	6.6 mm	0.18 in	0.26 in	4.2 mm	1.83 mm	Red
