892-074 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 74POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Card Type	Color	Contact Finish	Termination	Read Out	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Number of Positions/Bay/Row	Pitch	Pitch	Number of Rows [custom]	Number of Positions	Gender	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 892-074-520-201	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Solder	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy
EDAC Inc. 892-074-542-204	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Wire Wrap	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 892-074-559-204	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Solder	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 892-074-500-212	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Solder Eyelet(s)	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-074-540-202	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Wire Wrap	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-074-524-201	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Solder	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy

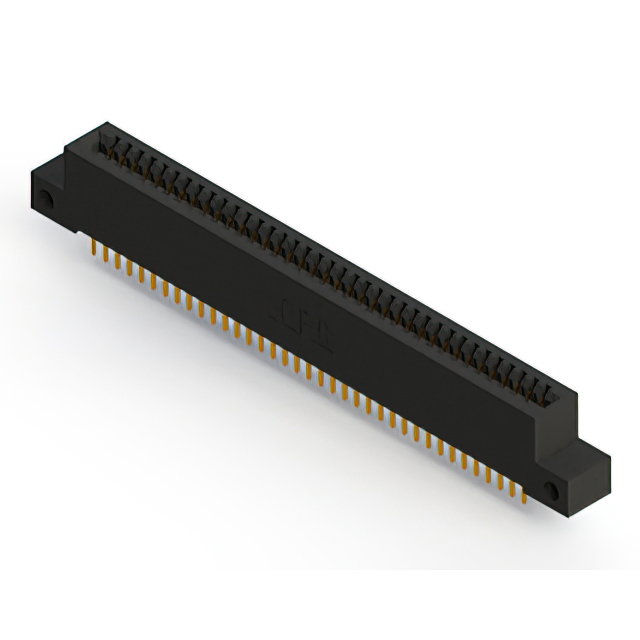

EDAC Inc. 892-074-521-212	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Solder	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 892-074-559-203	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Solder	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Right Angle Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm

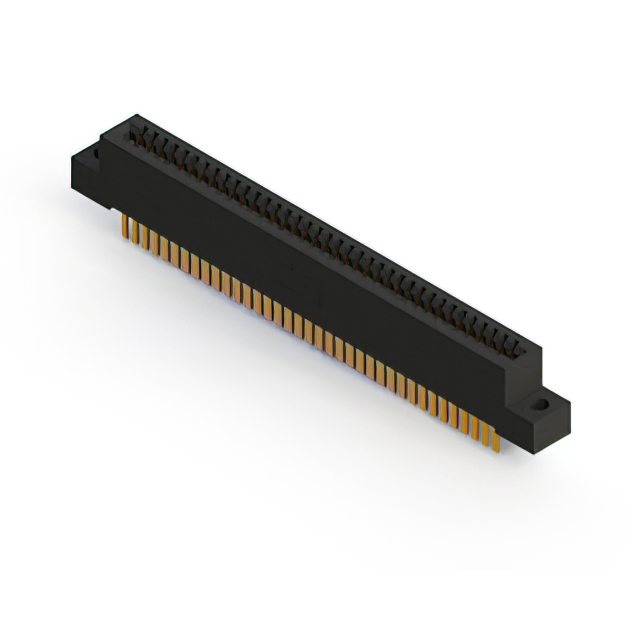

EDAC Inc. 892-074-544-204	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Wire Wrap	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

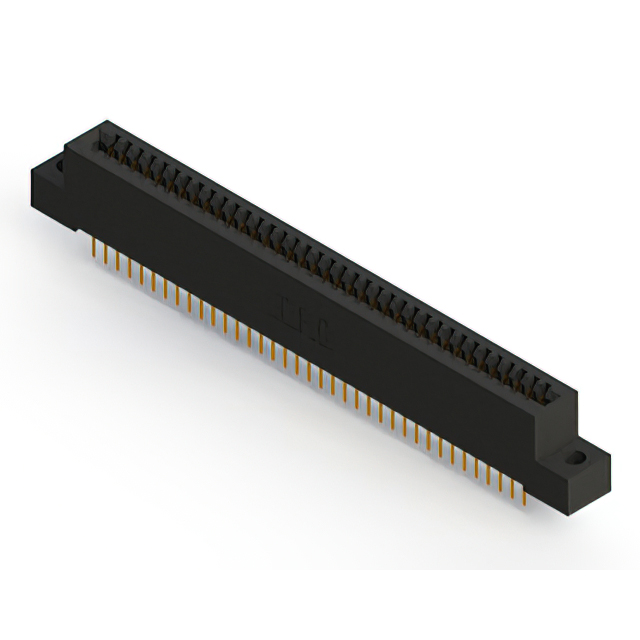

EDAC Inc. 892-074-524-204	2	Polyphenylene Sulfide (PPS)	Non Specified - Dual Edge	Black	Gold	Solder	Dual	Cantilever	0.25 Ám	10 Áin	125 °C	-40 C	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	37	0.1 "	2.54 mm	2	74	Female	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
