W2G130 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

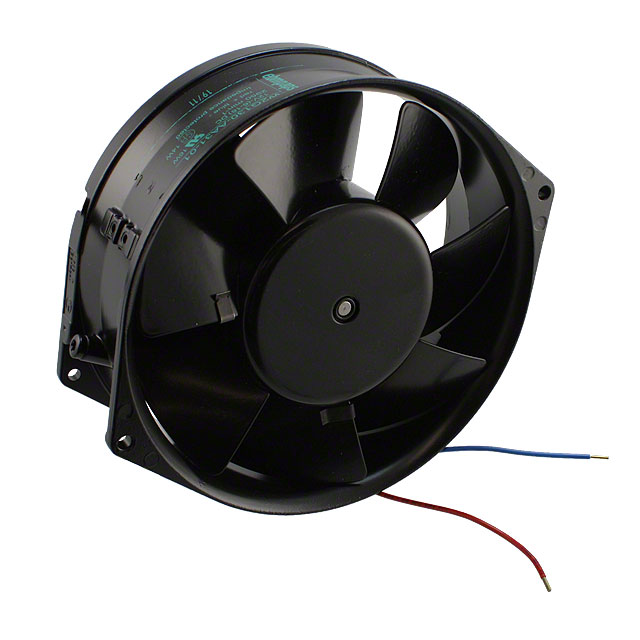

FAN AXIAL 150X55MM 12VDC WIRE
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Fan Type | Voltage - Rated | Noise | Width | Weight | Weight | Bearing Type | Size / Dimension | Size / Dimension [diameter] | Termination | Power (Watts) | Air Flow | Air Flow | RPM | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | 16 V | 6 VDC | Aluminum | Tubeaxial | 12 VDC | 51 dB(A) | 55 mm | 997.9 g | 2.2 lbs | Ball | Round | 150 mm | 2 Wire Leads | 14 W | 5.68 mł/min | 203 CFM | ||
ebm-papst Inc. | Steel | 28 V | 16 VDC | Aluminum | Tubeaxial | 24 VDC | 51 dB(A) | 55 mm | 907.2 g | 2 lbs | Ball | Round | 150 mm | 2 Wire Leads | 16 W | 5.68 mł/min | 203 CFM | 3150 RPM | |
ebm-papst Inc. | Steel | 30 V | 18 VDC | Aluminum | Tubeaxial | 24 VDC | 51 dB(A) | 55 mm | 997.9 g | 2.2 lbs | Ball | Round | 150 mm | 3 Wire Leads | 14 W | 5.68 mł/min | 203 CFM | Speed Sensor (Tach) | |
ebm-papst Inc. | Steel | 56 VDC | 36 VDC | Aluminum | Tubeaxial | 48 VDC | 51 dB(A) | 55 mm | 997.9 g | 2.2 lbs | Ball | Round | 150 mm | 2 Wire Leads | 14 W | 5.68 mł/min | 203 CFM |
