228ADS1 Series

Manufacturer: Tusonix a Subsidiary of CTS Electronic Components

Catalog

ROUND BUTTON 50MA STRAIGHT SPST - NORMALLY OPEN 1.6N 12V PLUGIN TACTILE SWITCHES ROHS

Part	Mechanical Life	Illumination	Actuator Type	Outline [x]	Outline [y]	Actuator Length, Right Angle	Illumination Voltage (Nominal)	Illumination Type, Color	Mounting Type	Termination Style	Switch Travel	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Circuit	Contact Rating @ Voltage
Tusonix a Subsidiary of CTS Electronic Components 228ADS1ABFCMBB	100000 Cycles	Illuminated	Round Button	7.2 mm	5.4 mm	2.6 mm	3 VDC	Blue LED	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC
Tusonix a Subsidiary of CTS Electronic Components 228ADS1ARGF	100000 Cycles	Illuminated	Plunger for Cap	7.2 mm	5.4 mm	2.6 mm	1.7 VDC 1.9 VDC	Green/Red LED	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC

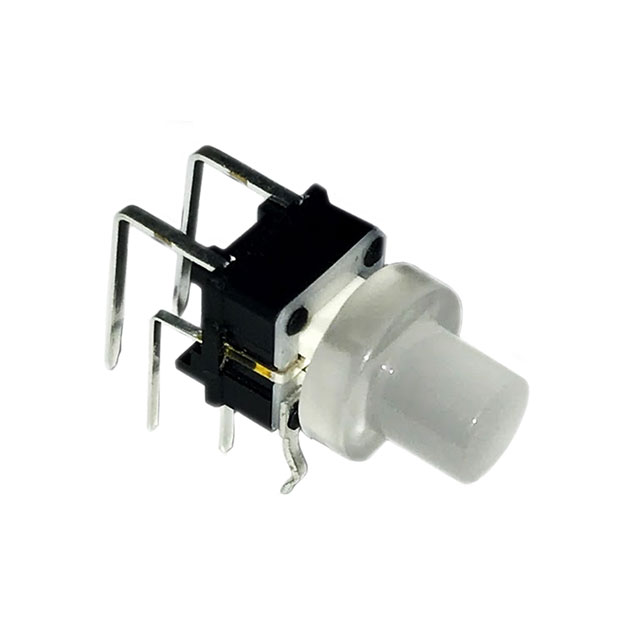

Tusonix a Subsidiary of CTS Electronic Components 228ADS1AYFCN	100000 Cycles	Illuminated	Round Button	7.2 mm	5.4 mm			LED Yellow	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC
Tusonix a Subsidiary of CTS Electronic Components 228ADS1ARFCAA	100000 Cycles	Illuminated	Round Button	7.2 mm	5.4 mm	2.6 mm	1.7 VDC	LED Red	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC
Tusonix a Subsidiary of CTS Electronic Components 228ADS1AYGFCMSA	100000 Cycles	Illuminated	Round Button	7.2 mm	5.4 mm	2.6 mm	1.9 VDC	Green LED Yellow	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC
Tusonix a Subsidiary of CTS Electronic Components 228ADS1ARFCRB	100000 Cycles	Illuminated	Round Button	7.2 mm	5.4 mm	2.6 mm	1.7 VDC	LED Red	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC
Tusonix a Subsidiary of CTS Electronic Components 228ADS1ABFCRD	100000 Cycles	Illuminated	Round Button	7.2 mm	5.4 mm	2.6 mm	3 VDC	Blue LED	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC
Tusonix a Subsidiary of CTS Electronic Components 228ADS1AGFCRC	100000 Cycles	Illuminated	Round Button	7.2 mm	5.4 mm	2.6 mm	1.9 VDC	Green LED	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC
Tusonix a Subsidiary of CTS Electronic Components 228ADS1ABFCRE	100000 Cycles	Illuminated	Round Button	7.2 mm	5.4 mm	2.6 mm	3 VDC	Blue LED	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC
Tusonix a Subsidiary of CTS Electronic Components 228ADS1ARBFCWA	100000 Cycles	Illuminated	Round Button	7.2 mm	5.4 mm	2.6 mm	1.7 VDC 3 VDC	Blue/Red LED	Through Hole Right Angle	PC Pin	0.25 mm	Side Actuated	70 °C	-25 °C	Off-Mom	SPST-NO	0.05 A 12 VDC
