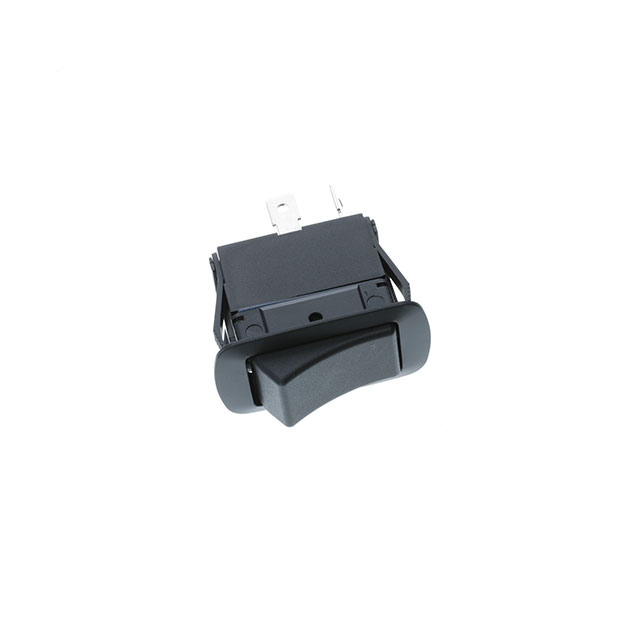

SRB1-2A Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER DPST 10A 125V
| Part | Electrical Life (Cycles) | Mechanical Life (Cycles) | Voltage Rating - AC | Ingress Protection IP Rating | Ingress Protection Description | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Actuator Marking | Switch Function | Current Rating | Quick Connect Size (0.250") | Termination Style | Voltage Rating - DC | Color - Actuator/Cap | Approval Agency | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 10000 Cycles | 125 V | IP56 | Dust Protected Water Resistant | 21.2 mm | Rectangular | 36.6 mm | No Marking | On-Off | 20 A 21 A | 0.25 in | Quick Connect | 14 V | Black | CSA cURus ENEC | 85 °C | -20 °C | Panel Mount Snap-In | Concave (Curved) | DPST |
