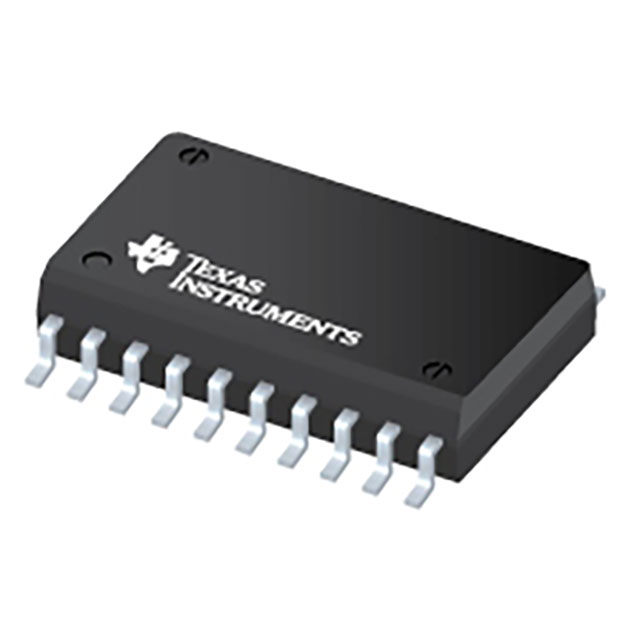

ISOW7721 Series
Low emissions, dual-channel, 1/1, reinforced digital isolator with integrated power
Manufacturer: Texas Instruments
Catalog
Low emissions, dual-channel, 1/1, reinforced digital isolator with integrated power
Key Features
• 100 Mbps data rateIntegrated DC-DC converter with low-emissions, low-noiseEmissions optimized to meet CISPR 32 and EN 55032 Class B with >5 dB margin on 2 layer boardLow frequency power converter at 25 MHz enabling low noise performanceLow output ripple: 24 mVHigh efficiency output powerEfficiency at max load: 46%Up to 0.55-W output powerVISOOUTaccuracy of ± 5%5 V to 5 V: Max available load current = 110 mA5 V to 3.3 V: Max available load current = 140 mA3.3 V to 3.3 V: Max available load current = 60 mASupport for multi-ISOW7721 chain to increase system power output to > 1-W and > 200 mAIndependent power supply for channel isolator & power converterLogic supply (VIO): 1.71-V to 5.5-VPower converter supply (VDD): 3-V to 5.5-VRobust electromagnetic compatibility (EMC)System-level ESD, EFT, and surge immunity±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierReinforced and Basic isolation optionsHigh CMTI: 100-kV/µs (typical)Safety Related Certifications (Planned):VDE reinforced and basic insulation per DIN VDE V 0884-11:2017-01UL 1577 component recognition programIEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1-2011 certificationsExtended temperature range: –40°C to +125°C20-pin wide body SOIC package100 Mbps data rateIntegrated DC-DC converter with low-emissions, low-noiseEmissions optimized to meet CISPR 32 and EN 55032 Class B with >5 dB margin on 2 layer boardLow frequency power converter at 25 MHz enabling low noise performanceLow output ripple: 24 mVHigh efficiency output powerEfficiency at max load: 46%Up to 0.55-W output powerVISOOUTaccuracy of ± 5%5 V to 5 V: Max available load current = 110 mA5 V to 3.3 V: Max available load current = 140 mA3.3 V to 3.3 V: Max available load current = 60 mASupport for multi-ISOW7721 chain to increase system power output to > 1-W and > 200 mAIndependent power supply for channel isolator & power converterLogic supply (VIO): 1.71-V to 5.5-VPower converter supply (VDD): 3-V to 5.5-VRobust electromagnetic compatibility (EMC)System-level ESD, EFT, and surge immunity±8 kV IEC 61000-4-2 contact discharge protection across isolation barrierReinforced and Basic isolation optionsHigh CMTI: 100-kV/µs (typical)Safety Related Certifications (Planned):VDE reinforced and basic insulation per DIN VDE V 0884-11:2017-01UL 1577 component recognition programIEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1-2011 certificationsExtended temperature range: –40°C to +125°C20-pin wide body SOIC package
Description
AI
The ISOW7721 device is a galvanically-isolated dual-channel digital isolator with an integrated high-efficiency power converter with low emissions. The integrated DC-DC converter provides up to 550 mW of isolated power, eliminating the need for a separate isolated power supply in space-constrained isolation designs. If additional power is needed, the ISOW7721 supports multi-device chaining, increasing the integrated power output to > 1 W using two devices in a system.
The ISOW7721 device is a galvanically-isolated dual-channel digital isolator with an integrated high-efficiency power converter with low emissions. The integrated DC-DC converter provides up to 550 mW of isolated power, eliminating the need for a separate isolated power supply in space-constrained isolation designs. If additional power is needed, the ISOW7721 supports multi-device chaining, increasing the integrated power output to > 1 W using two devices in a system.
