FMP.2M Series
Manufacturer: LEMO
Beta
⌘K

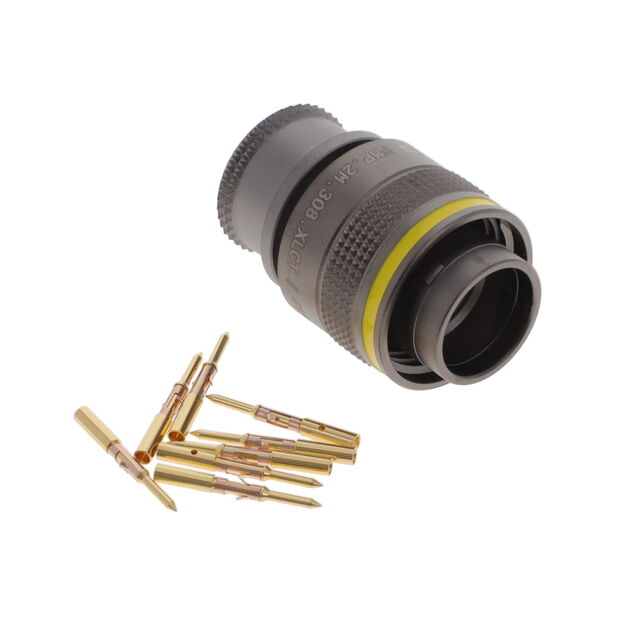

CONN PLUG MALE 8POS GOLD CRIMP
| Part | Orientation | Shell Size - Insert | Termination | Shell Material | Connector Type | Number of Positions | Applications | Features | Current Rating (Amps) | Fastening Type | Color | Insert Material | Contact Finish - Mating | Primary Material | Cable Opening | Cable Opening | Ingress Protection | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Shell Finish | Mounting Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | P | 308 | Crimp | Aluminum Alloy | Plug Male Pins | 8 | Aerospace Automotive Aviation Military | Coupling Nut | 10 A | Threaded | Gray | Polyetheretherketone (PEEK) | Gold | Metal | 13 mm | 0.512 in | IP68 - Dust Tight Waterproof | 39.4 µin | 1 µm | Shielded | 200 °C | -55 C | Nickel | Free Hanging (In-Line) | Brass |
LEMO | P | 310 | Crimp | Aluminum Alloy | Plug Male Pins | 10 | Aerospace Automotive Aviation Military | Coupling Nut | 8 A | Threaded | Gray | Polyetheretherketone (PEEK) | Gold | Metal | 13 mm | 0.512 in | IP68 - Dust Tight Waterproof | 39.4 µin | 1 µm | Shielded | 200 °C | -55 C | Nickel | Free Hanging (In-Line) | Brass |
LEMO | P | 319 | Crimp | Aluminum Alloy | Plug Male Pins | 19 | Aerospace Automotive Aviation Military | Coupling Nut | 4 A | Threaded | Gray | Polyetheretherketone (PEEK) | Gold | Metal | 13 mm | 0.512 in | IP68 - Dust Tight Waterproof | 39.4 µin | 1 µm | Shielded | 200 °C | -55 C | Nickel | Free Hanging (In-Line) | Brass |
